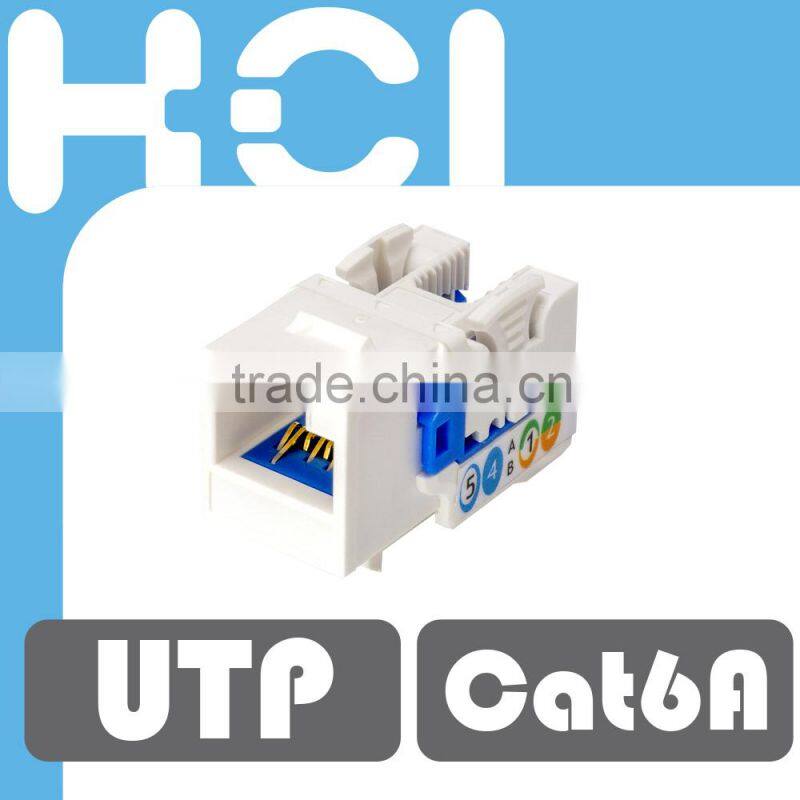

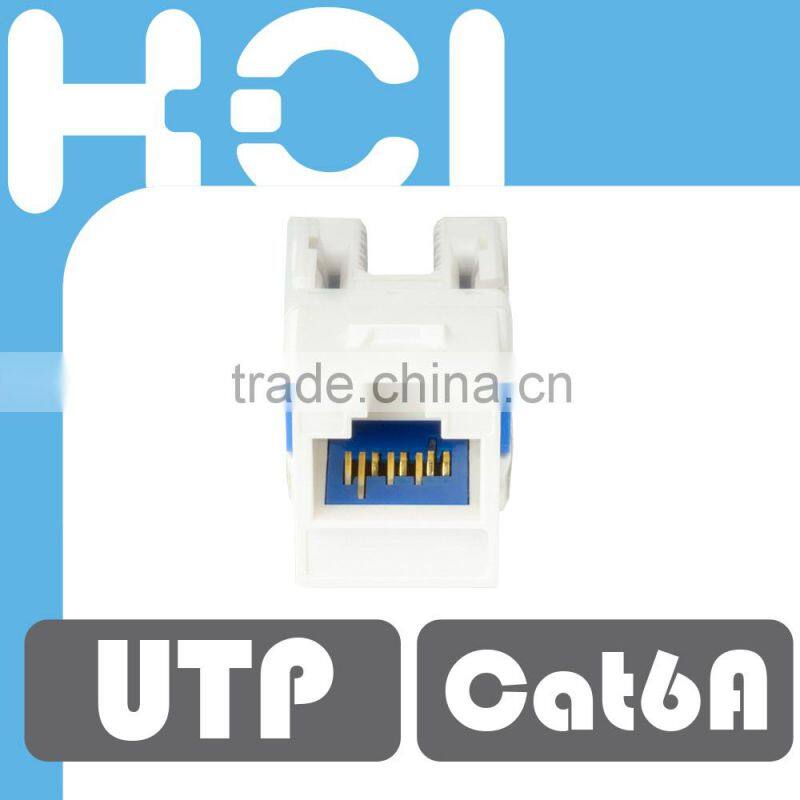

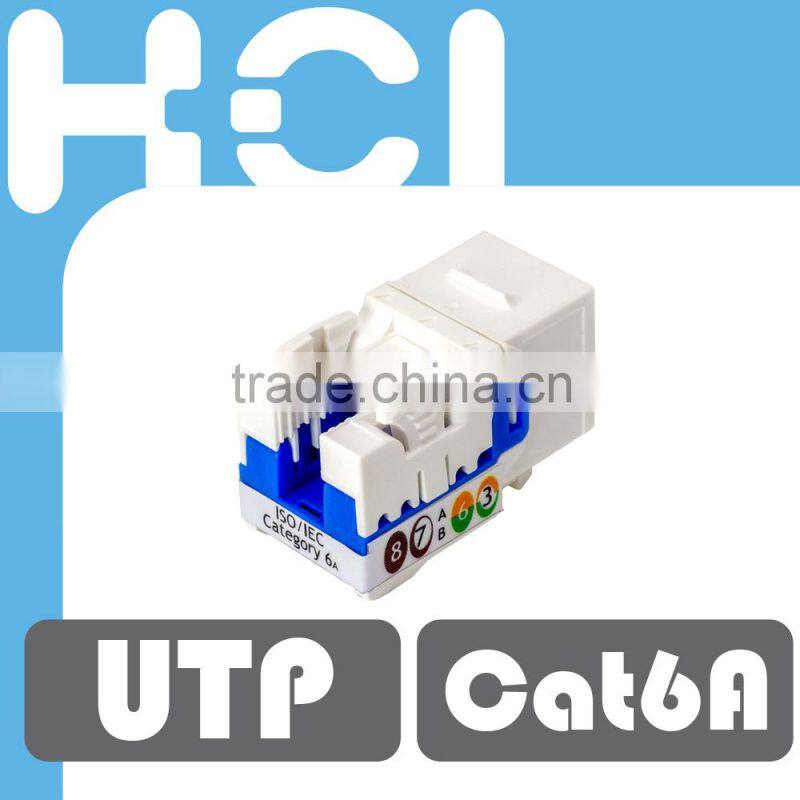

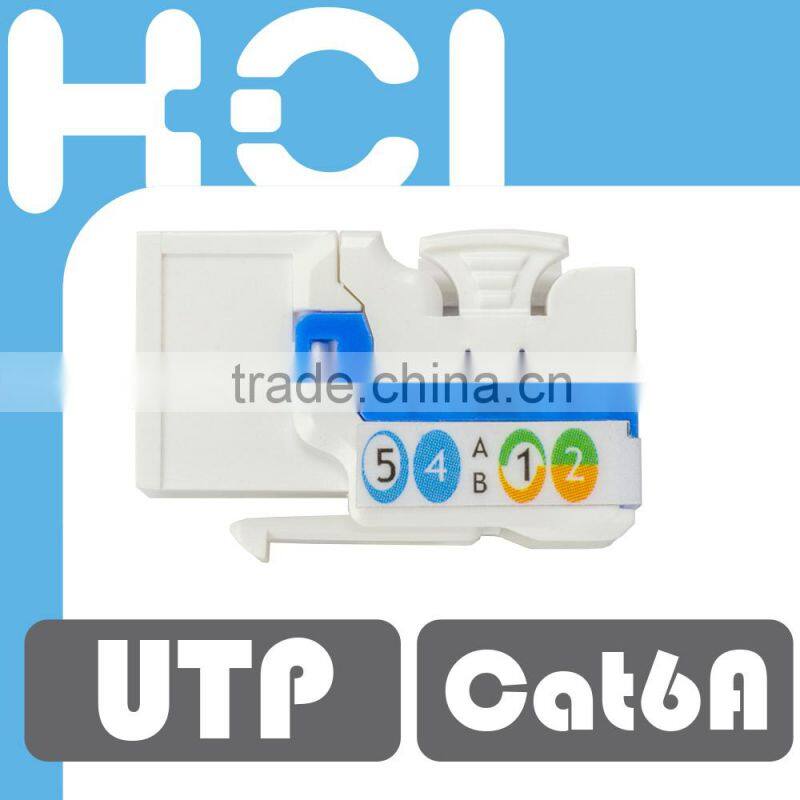

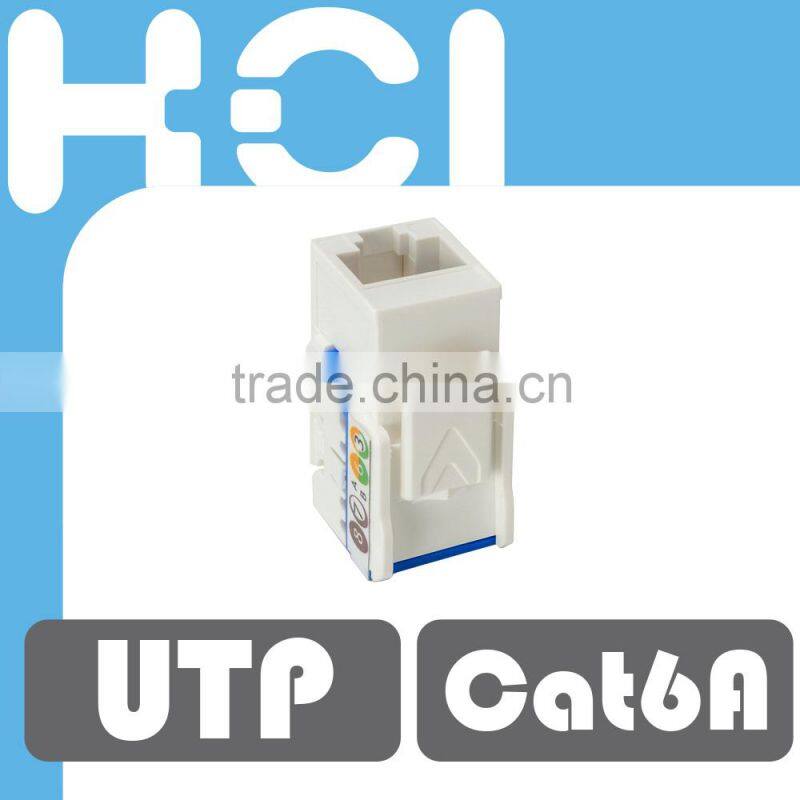

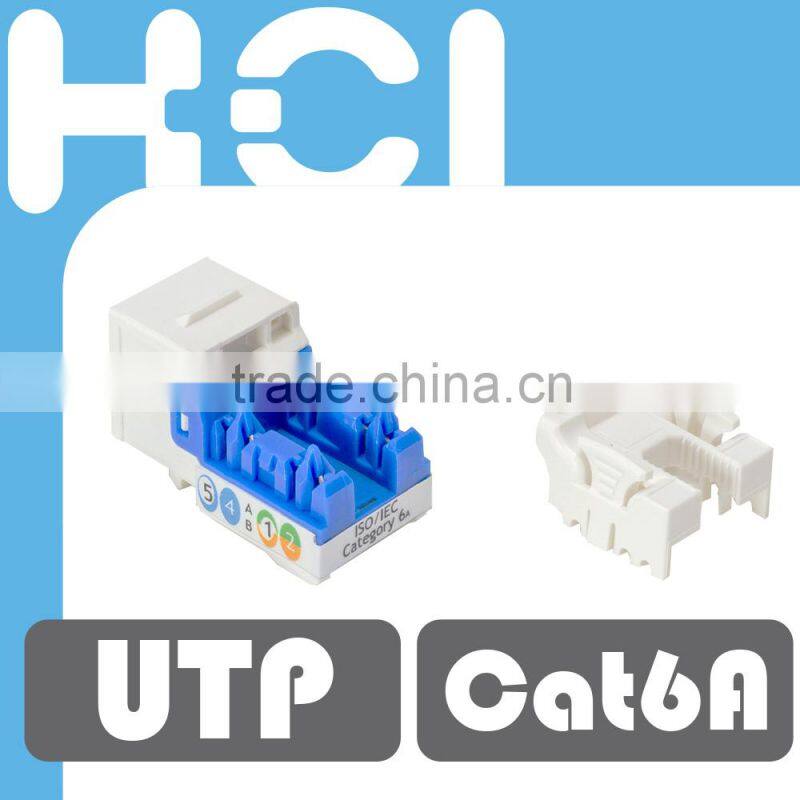

Network Cat6A 90 Degree UTP Punchdown Type Modular Keystone Jack

3013AKVA Series

§ PRODUCT FACT

- Performance: KVA Series completely contains all performance level from Cat 5e to Cat 6_A.

- Press-Fit Technology: makes the product more reliable. It also promises a much better

                                  quality of conductivity. A more stable transmission performance is

                                  guaranteed since there is no other medium that takes effect in

                                  between PCB and contacts.

- Component Level Performance.

§ FEATURE

1. UL certified.
2. RoHS2 Compliant.
3. Meet the ANSI/TIA/EIA-568-B.2-1 requirements for Category 6A performance.
4. Meet the ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 requirements for Class

    E performance.
5. Meet the TIA 968-A (FCC Part 68) and IEC 60603-7-4 requirements for RJ45 8-way

    connector.
6. Compatible for both T568A and T568B wiring schemes.
7. Fully automatic production of PCB assembly to ensure production consistency.
8. Fully automatic quality inspection for highest quality assurance.
9. Separated wire pairs at the IDC end to reduce crosstalk between each pairs.
10. User-friendly 110 IDC design to separate twisted-pair wires easily.
11. Compatible for 24-port applications in 1 Unit Height.
12. Designed to easily snap in and out of wall outlets,patch panels,and surface boxes.
