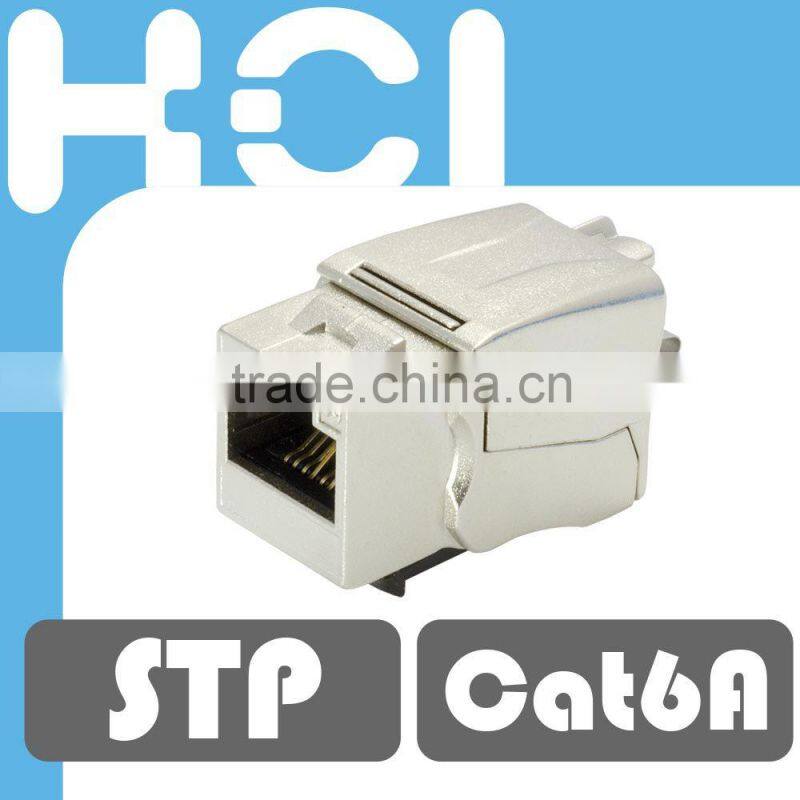

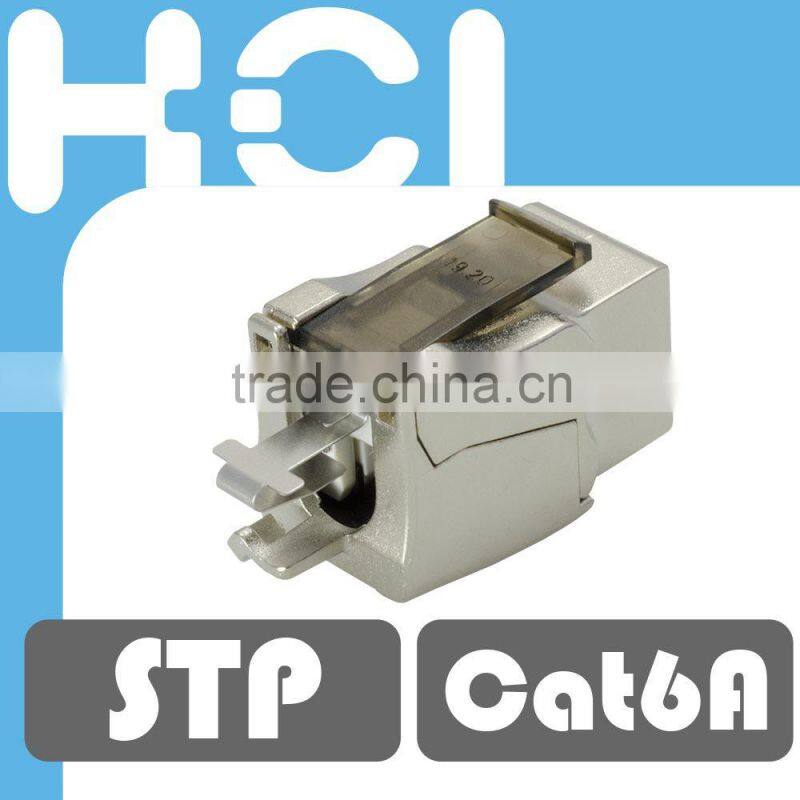

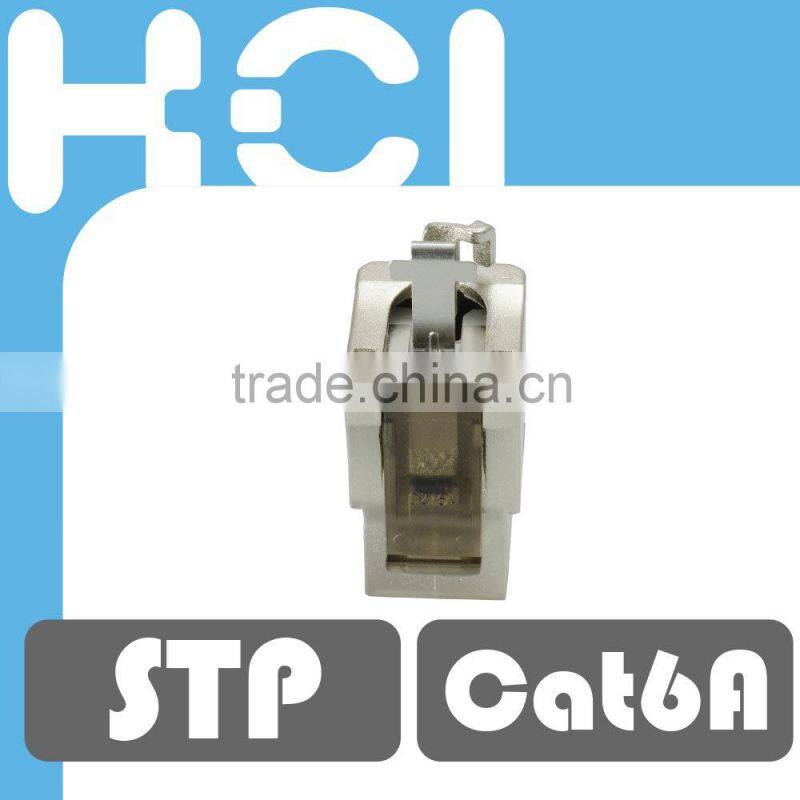

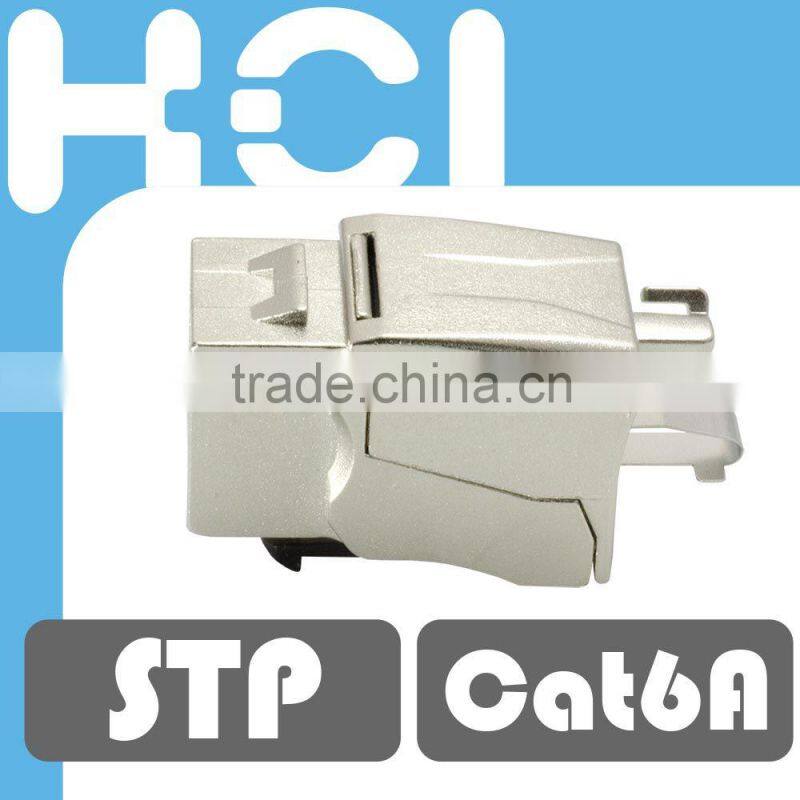

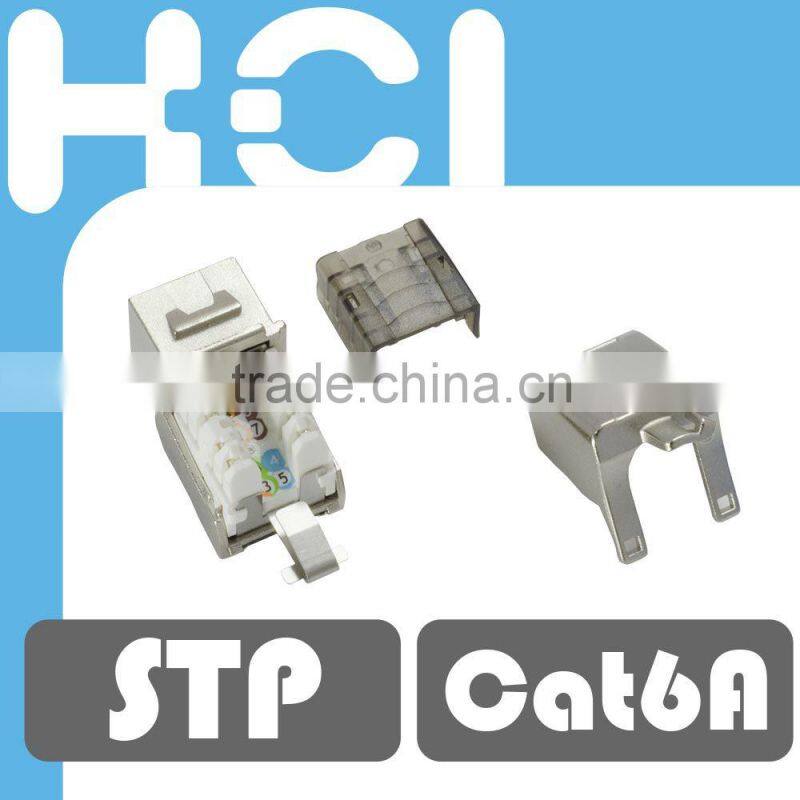

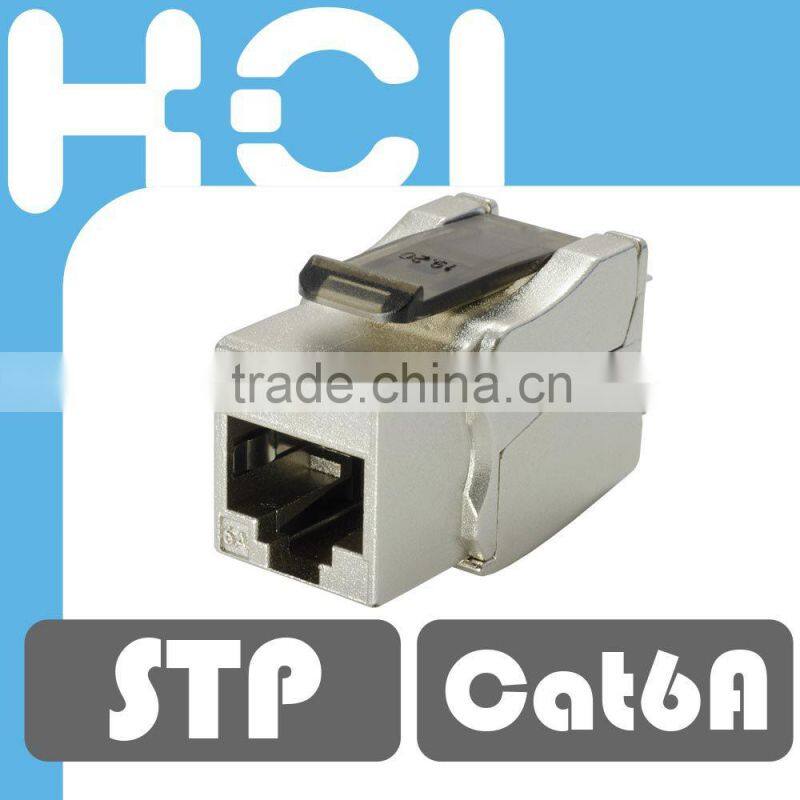

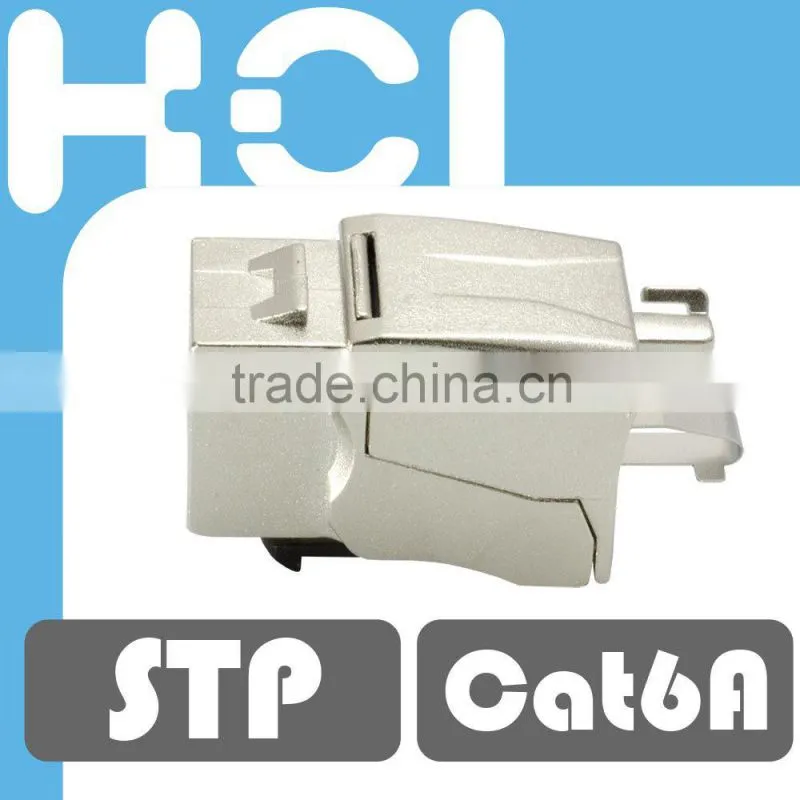

RJ45 STP Female Connector Cat 6A Keystone Jack Module
3013AFGVS6A
§ FEATURE
1. UL and ETL certified.
2. RoHS2 Compliant.
3. Meet the ANSI/TIA-568-C.2 requirements for Category 6A performance.
4. Meet the ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 requirements for Class E
Connecting Hardware.
5. Meet the TIA 968-A (FCC Part 68) and IEC 60603-7-4 requirements for RJ45 8-way connector.
6. Compatible for both T568A and T568B wiring schemes.
7. Fully automatic production of PCB assembly to ensure production consistency.
8. Fully automatic quality inspection for highest quality assurance.
9. Separated wire pairs at the IDC end to reduce crosstalk between each pairs.
10. User-friendly 110 IDC design to separate twisted-pair wires easily.
11. Compatible for 24-port applications in 1 Unit Height.
12. Designed to easily snap in and out of wall outlets,patch panels,and surface boxes.
§ ORDERING INFORMATION
| PART NO. | DESCRIPTION |
| 3013AGVS6A | 90 Degree Cat6A Shielded Keystone Jack, 110IDC |
| 3013AGVS6 | 90 Degree Cat6 Shielded Keystone Jack, 110IDC |
