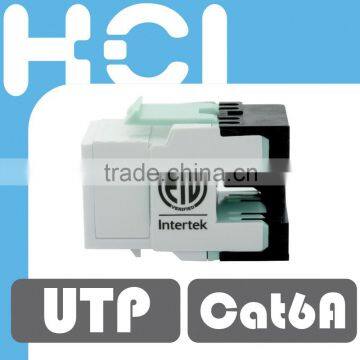

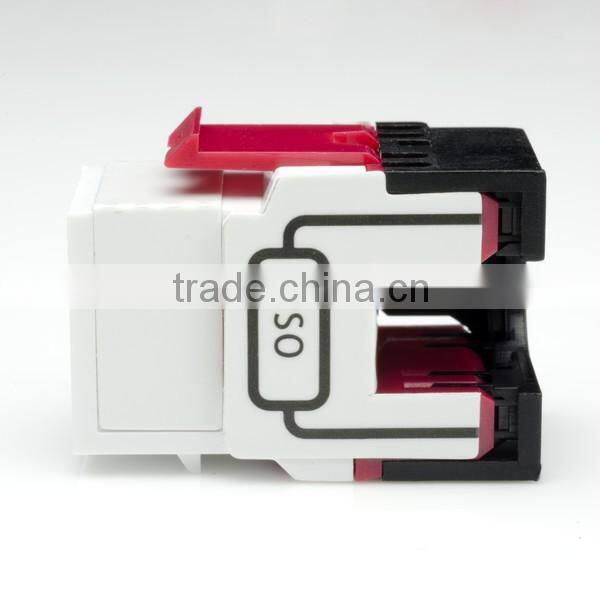

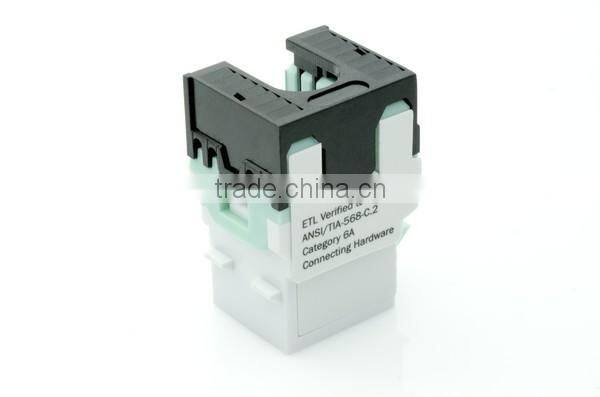

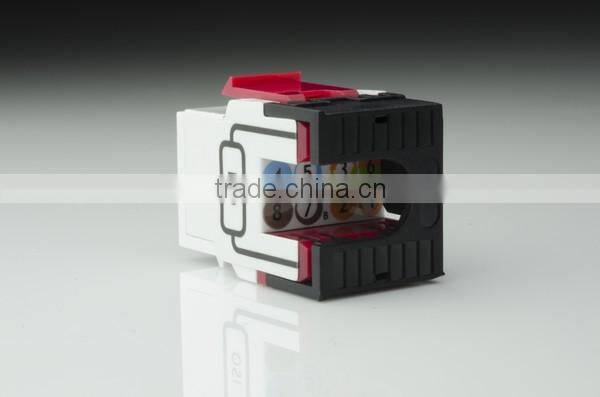

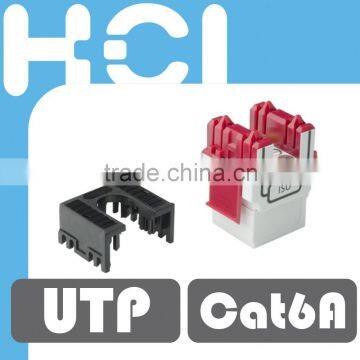

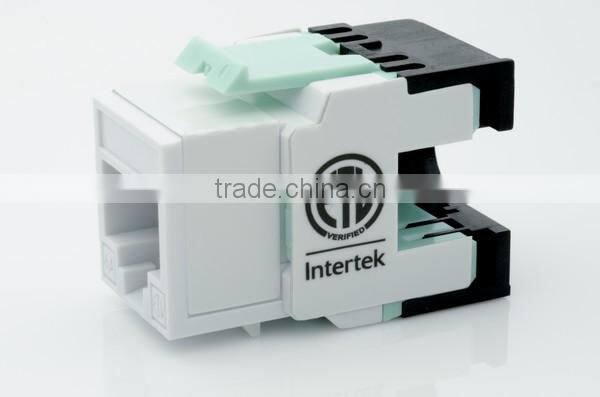

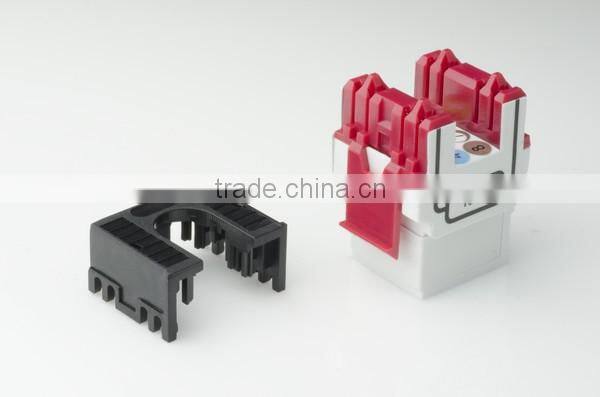

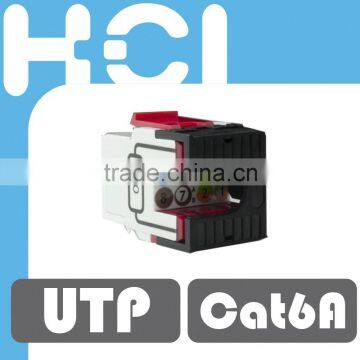

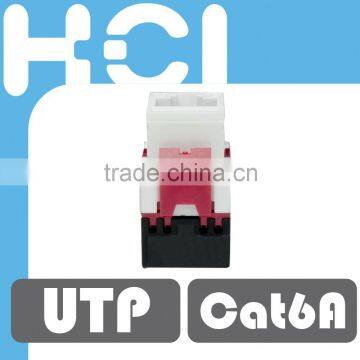

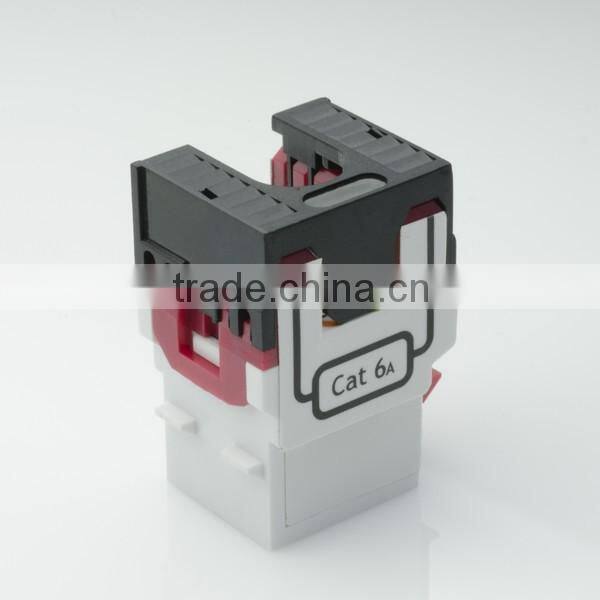

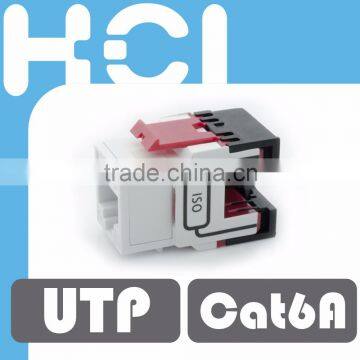

ISO RJ45 8P8C UTP 180Degree Cat 6A Keystone Jack
3013AKHA6A
§ PRODUCT FACTS
• Performance:KHA Series completely contains all performance level from Cat 5e to Cat 6A.
• Press-Fit Technology:makes the product more reliable. It also promises a much better quality
of conductivity. A more stable transmission performance is guaranteed
since there is no other medium that takes effect in between PCB and
contacts.
• Patent (pending) in Taiwan & U.S.:Unique spring contact structure for improving
RL & counteracting NEXT.
§ SPECIFICATION
1. CE, Lead-free & RoHS2 compliant.
2. Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2.2 edition and CENELEC EN 50173-1 cabling
requirements for Category 6A& Category 6A components performance.
3. Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability
requirements of IEC 60603-7-2 IEC 60603-7-4, and IEC 60603-7-41 for RJ45 8-way
unscreened connector.
§ ELECTRICAL
• Voltage proof: 1000V DC or AC peak, contact-to-contact.
• Current-carrying capacity: 0.75Amps minimum
• Contact resistance: 20mohm maximum
• Insulation resistance: 500Mohm minimum at 100V DC
• Input to output resistance: 200mohm maximum
• DC resistance: 0.2ohm maximum
§ MECHANICAL
• Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular plug
20 cycles minimum for cable re-termination
• Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.
§ ENVIRONMENTAL
• Operation Temperature: -10℃~ 60℃
• Humidity: 10% ~ 90%RH
§ ODERING INFORMATION
| PART NO. | DESCRIPTION |
| 3013AKH6a | 180 Degree ISO/IEC Cat 6A Unshielded Kestone Jack, T568A/T568B, Dual IDC |
| 3013AKH6A | 180 Degree TIA Cat 6A Unshielded Kestone Jack, T568A/T568B, Dual IDC |
| 3013AKHA6 | 180 Degree Cat 6 Unshielded Kestone Jack, T568A/T568B, Dual IDC |
| 3013AKHA5e | 180 Degree Cat 5e Unshielded Kestone Jack, T568A/T568B, Dual IDC |
TWISTED-PAIR MULTIMEDIA OPTICAL FIBER OEM/ODM
OEM & ODM: Why HCI?
One of Taiwan’s leading supplier oftelecommunications structured cabling system.
Provide total solution, from design to production with fast turn around time and the best price.
Founded in 1975 and over 25 years experience in OEM/ODM projects.
Your reliable global partner!
