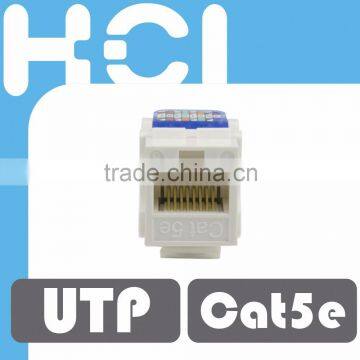

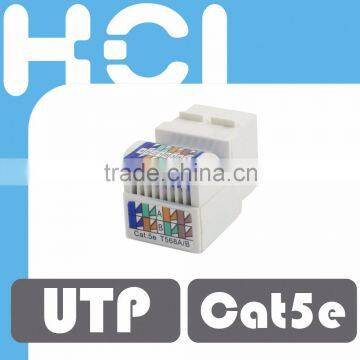

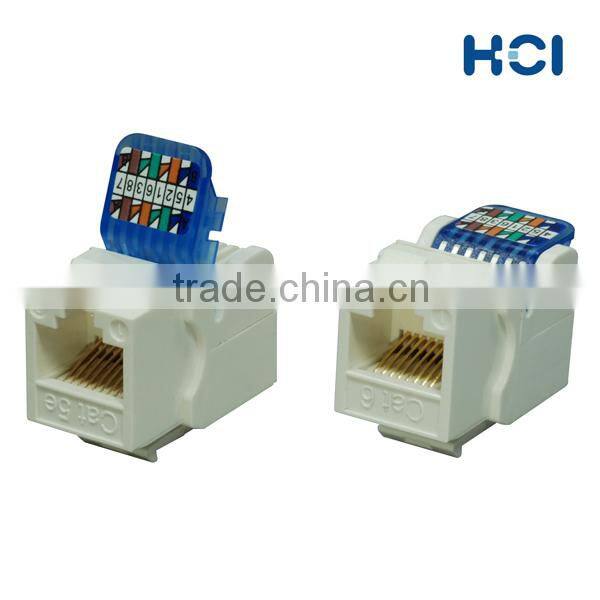

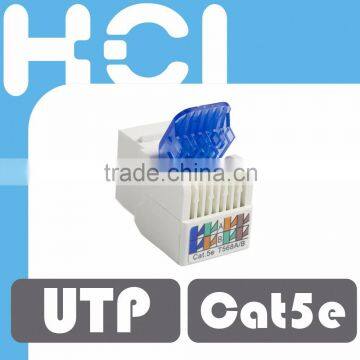

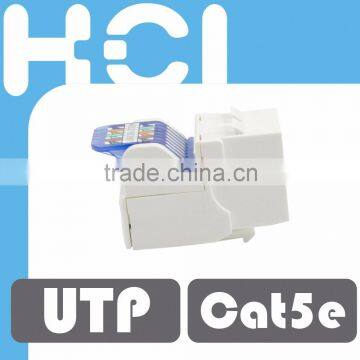

Toolless RJ45 Cat5e UTP 90Degree Modular Keystone Jack
3013ALFN5e
§ PRODUCT FACTS
The Keystone Jack is designed to easily snap in and out of the wall outlet, patch panel and surface mount box. With special design insulation displacement connectors (IDC), the LAN wires can be terminated without punchdown tool for quick installation.
It comes with T568A/T568B color label and fully complies with ANSI/TIA-568-C.2-2009 specifications for Return loss, Insertion loss, NEXT loss, PSNEXT loss, ACRF, PSACRF, TCL, ELTCTL, Propagation delay, Propagation delay skew, PSANEXT loss, Average PSNEXT loss, PSAACRF, and Average PSAACRF up to 250MHz.
§ SPECIFICATION
1. Lead-free & RoHS compliant.
2. Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 cabling
requirements for Category 6 channel performance.
3. Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and reliability requirements of
IEC 60603-7 for RJ45 8-way connector.
§ APPLICATION
• 1000BASE-T
• 100BASE-Tx
• 10BASE-T
• 155M ATM
• 4/16MB Token Ring
• 100Mbps TP-PMD
• ISDN
• ADSL
• Analog & Digital Voice (VoIP) / Video
• Power over Ethernet (PoE)
• Control Signal
§ ORDERING INFORMATION
| PART NO. | DESCRIPTION |
| 3013ALFN6 | 90Degree Cat 6 Unshielded Keystone Jack, T568A/T568B, Toolless |
| 3013ALFN5e | 90Degree Cat 5e Unshielded Keystone Jack, T568A/T568B, Toolless |
