Shenzhen Yushi Electronic Technology Co., Ltd.: Shenzhen, Guangdong, China; Main products: LED Power supply, LED driver

Home > Products > LED driver for tunnel lights > Constant Current Waterproof DC20-36V 2400mA 80W LED Driver for Tunnel Lights

Constant Current Waterproof DC20-36V 2400mA 80W LED Driver for Tunnel Lights

Name: Constant Current Waterproof DC20-36V 2400mA 80W LED Driver for Tunnel Lights
Brand: Yushi
Availability: InStock

FOB Price

US$ 15 - 30 / Piece

100 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yushi
Model Number	YS-362400J20	Output Power	Other, 80W
Output Type	Single	Input Voltage	Other, AC90-265V
Output Voltage	DC20-36V	Output Frequency	50/60Hz
Output Current	2400mA

Product Description

Constant current 60-80W series

Features:

Input Voltage: AC90-265V,47-63Hz, contact us if the request is special

Constant Current Output: Can be made according to customer's request

Power Factor: PFC>0.95, Max 0.99

Efficiency: EFF>88%, Max 92%

Working Temperature: Tc-25-65 ℃

Protection Function: Short circuit,overload,over-voltage,power restored

Compression Performance: Input to output, input to earth, 1.5KV-3KVAC, 1min

Safety Standard: GB4943, EN55015, UL60950, Class B

Specification:

Item NO.	Input Voltage	Output Voltage	Output Current	Max Power	Weight	Size

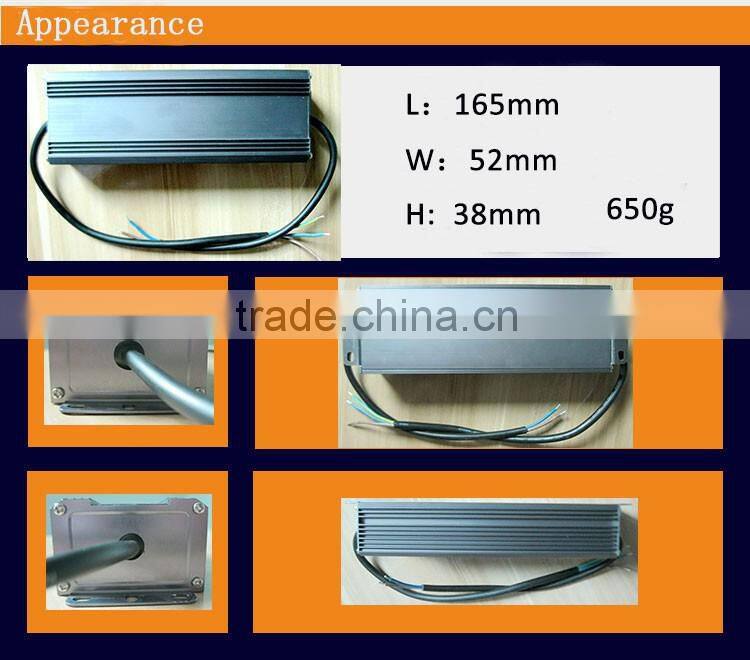

YS-362400J20	AC 90-265V	DC20-36V	2400mA ±3%	86.4W	650g	1655238mm
YS-541500J30	AC 90-265V	DC30-54V	1500mA ±3%	81W	650g	1655238mm
YS-362100J20	AC 90-265V	DC20-36V	2100mA ±3%	75.6W	650g	1655238mm
YS-85700J50	AC 90-265V	DC50-85V	700mA ±3%	59.5W	650g	1655238mm

*1: The data in the line marked in yellow is for the product model on show.
2: The output voltage and the output current can be made according to the customers' requests.

Other Constant current series LED power supply

Item NO.	Input Voltage	Output Voltage	Output Current	Max Power	Weight	Size
10-30W
YS-85300A50	AC 90-265V	DC50-85V	300mA ±3%	25.5W	150g	1153021mm
YS-45600A20	AC 90-265V	DC20-45V	600mA ±3%	27W	150g	1153021mm
YS-65450A30	AC 90-265V	DC30-65V	450mA ±3%	29.2W	150g	1153021mm
YS-36600A20	AC 90-265V	DC20-36V	600mA ±3%	21.6W	150g	1153021mm
YS-65300A30	AC 90-265V	DC30-65V	300mA ±3%	19.5W	150g	1153021mm
YS-18900A8	AC 90-265V	DC8-18V	900mA ±3%	16.2W	120g	803021mm
YS-20600A12	AC 90-265V	DC12-20V	600mA ±3%	12W	120g	803021mm
YS-25450A12	AC 90-265V	DC12-25V	450mA ±3%	11.25W	120g	803021mm
YS-42300A20	AC 90-265V	DC20-42V	300mA ±3%	12.6W	120g	803021mm
30-50W
YS-361500B20	AC 90-265V	DC20-36V	1500mA ±3%	54W	350g	1423728mm
YS-361200B20	AC 90-265V	DC20-36V	1200mA ±3%	43.2W	350g	1423728mm
YS-85450B50	AC 90-265V	DC50-85V	450mA ±3%	38.2W	350g	1423728mm
YS-65600B30	AC 90-265V	DC30-65V	600mA ±3%	39W	250g	1423728mm
YS-120300B80	AC 90-265V	DC80-120V	300mA ±3%	36W	250g	1423728mm
YS-42900B20	AC 90-265V	DC20-42V	900mA ±3%	37.8W	250g	1423728mm
YS-54600B30	AC 90-265V	DC30-54V	600mA ±3%	32.4W	250g	1423728mm
YS-36900B20	AC 90-265V	DC20-36V	900mA ±3%	32.4W	250g	1423728mm
50-60W
YS-203000C10	AC 90-265V	DC10-20V	3000mA ±3%	60W	480g	1385238mm
YS-252400C15	AC 90-265V	DC15-25V	2400mA ±3%	60W	480g	1385238mm
YS-361800C20	AC 90-265V	DC20-36V	1800mA ±3%	64.8W	480g	1385238mm
YS-541200C30	AC 90-265V	DC30-54V	1200mA ±3%	64.8W	480g	1385238mm
YS-361500C20	AC 90-265V	DC20-36V	1500mA ±3%	54W	480g	1385238mm
YS-54900C30	AC 90-265V	DC30-54V	900mA ±3%	48.6W	480g	1385238mm
YS-85600C50	AC 90-265V	DC50-85V	600mA ±3%	51W	480g	1385238mm
80-100W
YS-542100H30	AC 90-265V	DC30-54V	2100mA ±3%	113.4W	1000g	2007045mm
YS-363000H20	AC 90-265V	DC20-36V	3000mA ±3%	108W	1000g	2007045mm
YS-541800H30	AC 90-265V	DC30-54V	1800mA ±3%	97.2W	1000g	2007045mm
YS-362700H20	AC 90-265V	DC20-36V	2700mA ±3%	97.2W	1000g	2007045mm
YS-851000H50	AC 90-265V	DC50-85V	1000mA ±3%	85W	1000g	2007045mm
YS-362400H30	AC 90-265V	DC20-36V	2400mA ±3%	86.4W	650g	1655238mm
YS-85900H30	AC 90-265V	DC50-85V	900mA ±3%	76.5W	650g	1655238mm
100-150W
YS-364500E20	AC 90-265V	DC20-36V	4500mA ±3%	162W	1250g	2357045mm
YS-543000E30	AC 90-265V	DC30-54V	3000mA ±3%	162W	1250g	2357045mm
YS-364200E20	AC 90-265V	DC20-36V	4200mA ±3%	151.2W	1250g	2357045mm
YS-542700E30	AC 90-265V	DC30-54V	2700mA ±3%	145.8W	1250g	2357045mm
YS-363900E20	AC 90-265V	DC20-36V	3900mA ±3%	140.4W	1250g	2357045mm
YS-542400E30	AC 90-265V	DC30-54V	2400mA ±3%	129.6W	1250g	2357045mm
YS-363600E20	AC 90-265V	DC20-36V	3600mA ±3%	129.6W	1250g	2357045mm
YS-363300E20	AC 90-265V	DC20-36V	3300mA ±3%	118.8W	1250g	2007045mm
150-200W
YS-366000K20	AC 90-265V	DC20-36V	6000mA ±3%	216W	1500g	2607045mm
YS-544200K30	AC 90-265V	DC30-54V	4200mA ±3%	226.8W	1500g	2607045mm
YS-543600K30	AC 90-265V	DC30-54V	3600mA ±3%	194.4W	1500g	2607045mm
YS-543300K30	AC 90-265V	DC30-54V	3300mA ±3%	178.2W	1500g	2607045mm
YS-364800K30	AC 90-265V	DC20-36V	4800mA ±3%	172.8W	1500g	2607045mm
4 Outputs
YS-541200K30-4	AC 90-264V	DC30-54V*4PS	1200mA*4PS	260W Max	2500g	23612560mm
YS-54900K30-4	AC 90-264V	DC30-54V*4PS	900mA*4PS	190W Max	2500g	23612560mm
YS-54600K30-4	AC 90-364V	DC30-54V*4PS	600mA*4PS	130W Max	2500g	23612560mm
YS-85300K50-4	AC 90-364V	DC50-85V*4PS	300mA*4PS	100W Max	2500g	23612560mm
200-300W
YS-369000K20	AC 90-265V	DC20-36V	9000mA ±3%	324W	2500g	23612560mm
YS-546000K30	AC 90-265V	DC30-54V	6000mA ±3%	324W	2500g	23612560mm
YS-545100K30	AC 90-265V	DC30-54V	5100mA ±3%	275.4W	2500g	23612560mm
YS-544500K30	AC 90-265V	DC30-54V	4500mA ±3%	243W	2500g	23612560mm

FAQ:

1: Are you manufacturer ?

: We are the manufacturer which produce only LED power supply & Led driver. Welcome to visit our factory anytime.

2: How long have your factory been established?

: 8 years ,since 2008

3: What kind of LED power supply do you produce?

: We have constant current series, constant voltage series, rain-proof series,and switch power supply series, they can be applied in almost any LED light.

4: Do you accept OEM?

: Yes, we do

5: How long is your product warranty?

: All our products have 3 year warranty, you don't need to worry about the quality problem.

6: What kind of payment term do you accpet?

: T/T,L/C,Paypal,Western Union,etc.

7: What's your Lead time?

: Usually our delivery time is 1~20 days. We operate business without any delay.
