Home > Products > Melt-blown nonwoven fabric die > PA Melt-blown Nonwoven Fabric Die PA Melt-blown Nonwoven Fabric Mold
PA Melt-blown Nonwoven Fabric Die PA Melt-blown Nonwoven Fabric Mold
- China main port
- T/T L/C D/P D/A
You May Like
-
Melt-blown Nonwoven Fabric Die/mold Extrusion Die/mold
-
PTFE Melt-blown Nonwoven Fabric Die PTFE Melt-blown Nonwoven Fabric Mold
-
PET Melt-blown Nonwoven Fabric Die/mold Extrusion Die/mold
-
PP Melt-blown Nonwoven Fabric Die PP Melt-blown Nonwoven Fabric Mold
-
Plastic Extrusion Die for Multi Layer Sheet Die
-
for Packing Pvc Rigid Sheet Pvc Sheet Die
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TIANDEYI | |
| Shaping Mode | Other, Extrusion molding | Product Material | Steel | |
| Product | Other, Melt-blown nonwoven fabric die series |
Product Description
PA Melt-blown nonwoven fabric die PA Melt-blown nonwoven fabric mold
Name | Melt-blown nonwoven fabric die |
Usage for products | PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, a variety of materials such as carbon fiber |
Product usage | Thermal insulation materials, filter materials, oil absorption material; |
Medical and health materials,environmental protection materials | |
Clothing materials | |
Lead-acid battery separator material, industrial and home cleaning | |

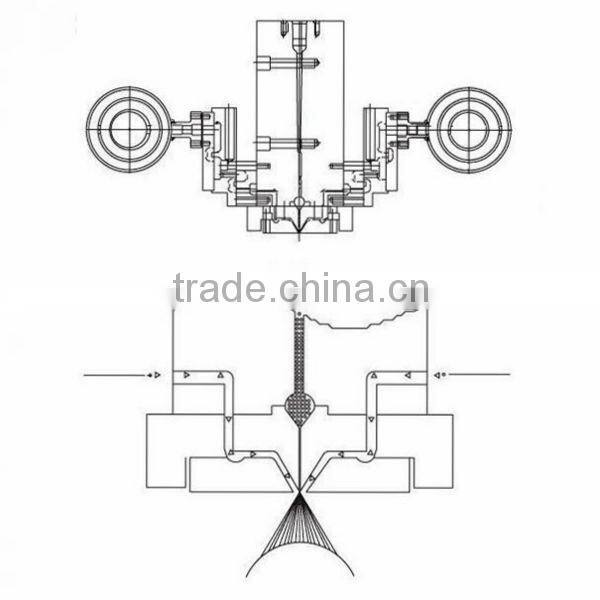

Flow channel | Hangers type |
Characters | Conform to the material characteristics (viscosity, temperature, rate)of hangers type flow channel and special shaped structure design to raw material forming more smooth, no leakage, corner phenomenon; Implement material flow velocity and flow in the width direction is consistent, without pressure fluctuations, make sure the production goods size are the same. |
Heat Voltage | 220V or on customer’s request |
Heating way | Heating bars made of stainless steel from Italy |
Die material | 2738 from Germany or P20 |
Screws | High strength at 12.9 grade |
Polishing | Lips and surface of flowing: 0.02-0.03(μm), Other surfaces: 0.03-0.04(μm). |
Chrome thickness: | 0.035-0.045mm |
Surface hardness: | 60-70HR |
Feeding type: | Round or square or special |
Installation | On costumer’s request |
Manufaturing process
1. Packaging Detail:
Outside package: Standard export wooden cases;
Inner package: Bubble wrap.
2. Delivery Detail:
Die length< 2000mm : within 30 days, 2000mm<Die length<3000mm, within 45 days.
The company wholeheartedly provide you with a full range of technical support and product services with a mature research and development, quality control, sales and service system.
1. Super quality:
1). Scientific Process and meticulous work from beginning to end insure that each set of die is perfect.
2). High quality steel, professional heat treatment, to prolong the maximum service life of dies.
3). Flow designing of dies are scientific and reasonable, reduce the thick edge effectively and make your cost down .
4). Using durable high quality parts: high quality stainless steel heating bar, heating uniformity, stability, high precision.
2. Competitive price, short delivery time
3. Customized products offered
1). Multiple adjustment methods of die lip opening for you to choose, convenient adjustment can save time, save labor costs to improve efficiency
2). Retain a full set of data and provide latingly technical services for you.
4. After-sale service
1). Timely response ;
2). Engineers available to service machinery overseas.
5. Profession with good reputation
Extrusion die series Including automatic control die , fast open lip die(fast gap die), coating die, various film dies,various sheet dies, multi-manifold coextrusion dies(Manifold die), single-layer or multi-layer grid hollow plate die (Hollow profile die), hollow special shape product die, and foam dies.
Ancillary equipments including co-extrusion feedblocks series, melt metering gear pump series, screen changer series, etc.
The products are widely used in the production of the plastic such as PR, BOPP, BOPET, PVDF, ETFE, PA, EVOH, EVA, TPU, ABS, PC, PMMA, PVC, PP, PE, CPP, CPE, PET, APET, PETG, PVB, PS, HIPS, LDPE, HDPE etc .
Our products are exported to Japan, the United States, Turkey, Mexico, Brazil, Bangladesh, Russia, India, Malaysia, Iran and other countries and regions and received high priase by our customers.
Please feel free to contact us, we will reply within 24h!
we want to know:
1. What's the products you want to produce?
2. What's the raw material?
3. What's the thickness of your product?
4. What's the product final width?
Thanks for your patience!
