Specifications
DY-SPT-I Self-Propelled thermoplastic road line marking machine1. Egnine: Gasoline
2. Paint: Thermoplastic
3. Heating: LPG
DY-SPT-I Self-Propelled thermoplastic road line marking machine
1. Egnine: Gasoline
2. Paint: Thermoplastic
3. Heating: LPG

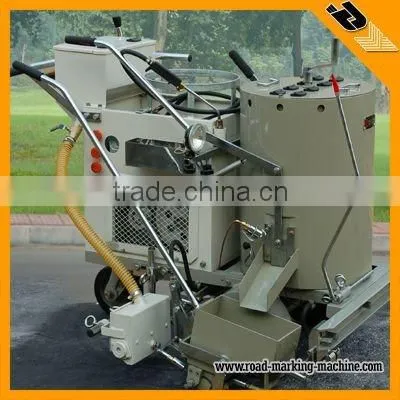

DY-SPT-I/II Self-Propelled Thermoplastic Marking Machine
Description of DY-SPT-I/II Road Marking Machine
DY-SPT not only has the capability of being a hand push marking machine but also has hydraulic pressure drive
equipment by itself that enables increased speed of line construction.
Main Future of DY-SPT-I/II Road Marking Machine
1. HTS Auto-moving the direction of forward or turn over.
2. Special material of marking bucket, heat-resistance, anti-cauterization. hard melt alloy grounded knife,
active design.
3. Same-step sprinkle the bead, convenient construction, adjusted quantity of sprinkle for saving the beads
4. Mult-heating mode for different require.
Technical Parameter of DY-SPT-I/II Road Marking Machine
| No. | Item | Spec. |
| 1 | Engine | Honda Gasoline Engine(Optional Diesel engine, liquefied gas engine) |
| 2 | Marking Shoe=Line Width | 100/150/200/300mm (Optional) |
| 3 | Paint Tank | 65L (Erect type stirring device, Heating and keeping the temperature automatically) |
| 4 | Heating Mode | Diesel or gasoline injecting type heater. Save fuel by 50%, Fuel tank: 8L |
| 5 | Driving System | HTS variable speed transmission system with automatic brake device |
| 6 | Glass Beads Bin | 14L, With a window, check the quantity timely |
| 7 | Rear Wheel Directional Device | Ensure the machine moving in straight line or turning freely in curved road |
| 8 | Size and Weight | 1350*1000*1100mm 230kg |
