Specifications
portable asphalt mixing plant with 8t-30t/hISO,CE,GOST
22 years producing experience
12 months warranty
Train your staff
portable asphalt mixing plant with 8t-30t/h
About us:
As top10 portable asphalt mixing plant manufacturer of China,Zhengzhou Dayu Machinery Co.,Ltd. established in 1992 and has been focused on portable asphalt mixing plant producing for 22 years.
Dayu business scope:
Stationary Asphalt Mixing Plant:
LB series:40t/h--400t/h.(Batch Mix Type) DHB series:20t/h--100t/h.(Drum Mix Type)
Portable Asphalt Mixing Plant:
MDHB series:20t/h--100t/h.(Drum Mix Type) SLB series:8t/h--30t/h.(Drum Mix Type)
QLB series:10t/h--80t/h.(Batch Mix Type)
Concrete Batching Plant:
Stationary concrete batching plant:HZS series from 25m3/h--150m3/h.
Mobile concrete batching plant:YHZS series from 40m3/h--80m3/h.
Technical Parameters of SLB Portable Asphalt Mixing Plant With 8t-30t/h
| Model | SLB-8 | SLB-10 | SLB-15 | SLB-20 | SLB-30 | |
| Capacity | 8t/h | 10t/h | 15t/h | 20t/h | 30t/h | |
| Power | Oil | 23.7kW | 24.3kW | 33kW | 46.5kW | 60kW |
| Coal | 40kW | 41kW | 54kW | 70kW | 90.3kW | |
| Aggregate batcher | 2.3m3*3 | 2.3m3*3 | 2.3m3*3 | 2.3m3*3 | 5m3*3 | |
| Storage Bin | 5t | 5t | 5t | 5t | 9t | |
| Asphalt Temperature | 120-180°C(adjustable) | |||||
| Fuel consumption | Fuel Oil:5-7.5kg/t; Fuel Coal:13-15kg/t | |||||
| Optional components | Aggregate batcher, Finished silo, Water filter, Bag filter, Control Room, Bitumen heating tank | |||||
Features of SLB Portable Asphalt Mixing Plant With 8t-30t/h
1.SLB portable asphalt mixing plant integrated design of drying and mixing in drum, reduce initiate cost for clients;
2.Simple structure, easy operation, drying while drum rotate in counter clockwise direction(from burner),discharging while drum rotates in clockwise direction(from burner),and the wind are swirled in the center of the drum;
3.PLC control, touch screen, auto/manual switchable;
4.Towing chassis for easy transport and installation;
5.Burner is available oil and coal, at client's option.

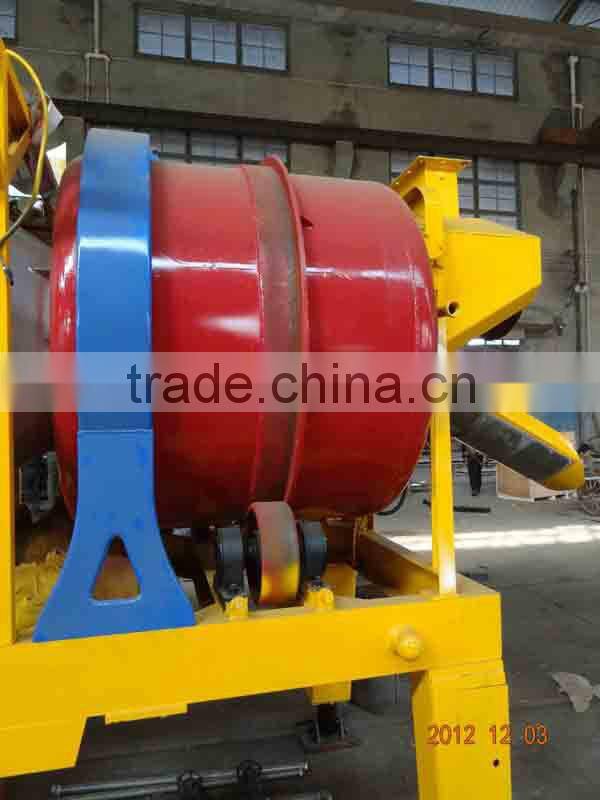

Mixing drum of SLB portable asphalt mixing plant

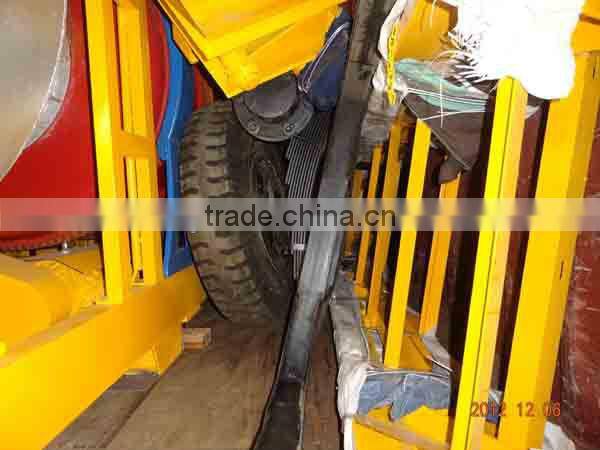

Container figure of SLB portable asphalt mixing plant

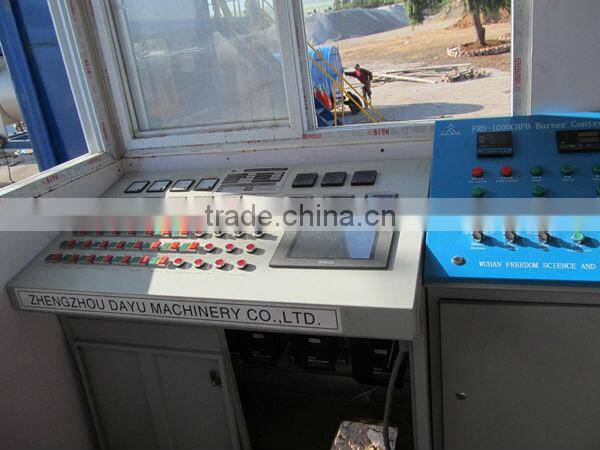

Control panel of SLB portable asphalt mixing plant
Certificates of SLB portable asphalt mixing plant
