Specifications
8t-30t/h mobile asphalt plant22 years producing experience
CE,GOST,ISO
12 months warranty
Train your staff

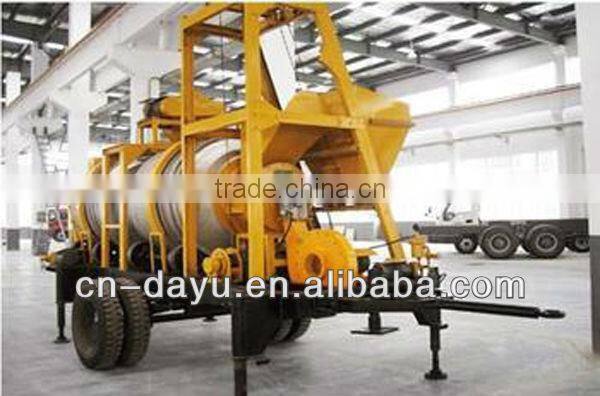

8t-30t/h mobile asphalt plant
About us:
As top10 mobile asphalt plant manufacturer of China,Zhengzhou Dayu Machinery Co.,Ltd. established in 1992 and has been focused on mobile asphalt plant producing for 22 years.
Business scope of Zhengzhou Dayu:
Stationary Asphalt Plant:
LB series:40t/h--400t/h.(Batch Mix Type) DHB series:20t/h--100t/h.(Drum Mix Type)
Mobile Asphalt PLant:
MDHB series:20t/h--100t/h.(Drum Mix Type) SLB series:8t/h--30t/h.(Drum Mix Type)
QLB series:10t/h--80t/h.(Batch Mix Type)
Concrete Batching Plant:
Stationary concrete batching plant:HZS series from 25m3/h--150m3/h.
Mobile concrete batching plant:YHZS series from 40m3/h--80m3/h.
Technical Parameters of SLB Mobile Asphalt Plant
| Model | SLB-8 | SLB-10 | SLB-15 | SLB-20 | SLB-30 | |
| Capacity | 8t/h | 10t/h | 15t/h | 20t/h | 30t/h | |
| Power | Oil | 23.7kW | 24.3kW | 33kW | 46.5kW | 60kW |
| Coal | 40kW | 41kW | 54kW | 70kW | 90.3kW | |
| Aggregate batcher | 2.3m3*3 | 2.3m3*3 | 2.3m3*3 | 2.3m3*3 | 5m3*3 | |
| Storage Bin | 5t | 5t | 5t | 5t | 9t | |
| Asphalt Temperature | 120-180°C(adjustable) | |||||
| Fuel consumption | Fuel Oil:5-7.5kg/t; Fuel Coal:13-15kg/t | |||||
| Optional components | Aggregate batcher, Finished silo, Water filter, Bag filter, Control Room, Bitumen heating tank | |||||
Features of SLB Mobile Asphalt Plant
1.SLB mobile asphalt plant integrated design of drying and mixing in drum, reduce initiate cost for clients;
2.Simple structure, easy operation, drying while drum rotate in counter clockwise direction(from burner),discharging while drum rotates in clockwise direction(from burner),and the wind are swirled in the center of the drum;
3.PLC control, touch screen, auto/manual switchable;
4.Towing chassis for easy transport and installation;
5.Burner is available oil and coal, at client's option.
Drm dryer of the mibile asphalt plant

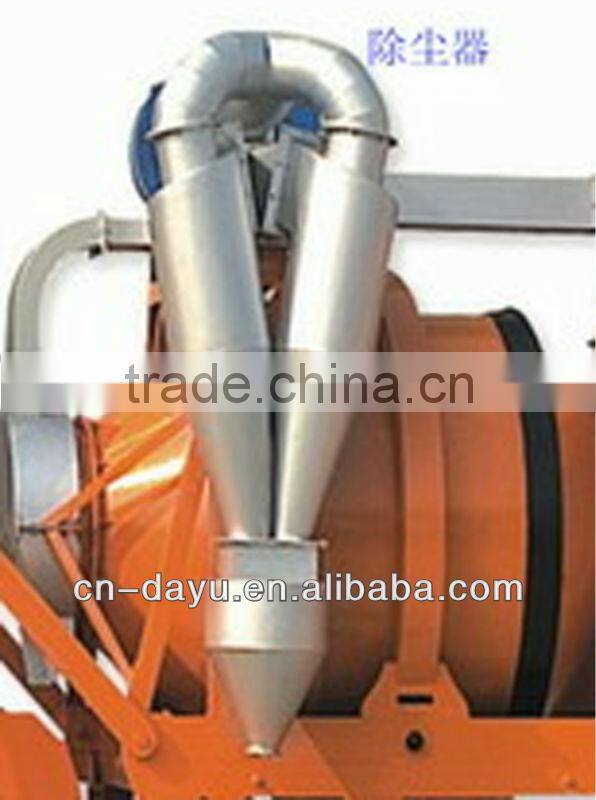

Dust collector of the mobile asphalt plant

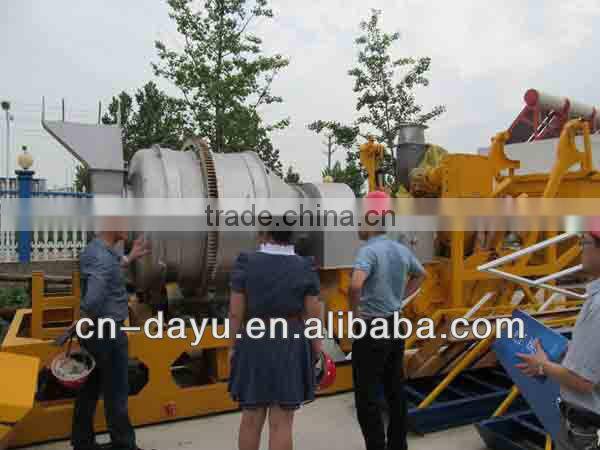

Customer visit the mobile asphalt plant picture

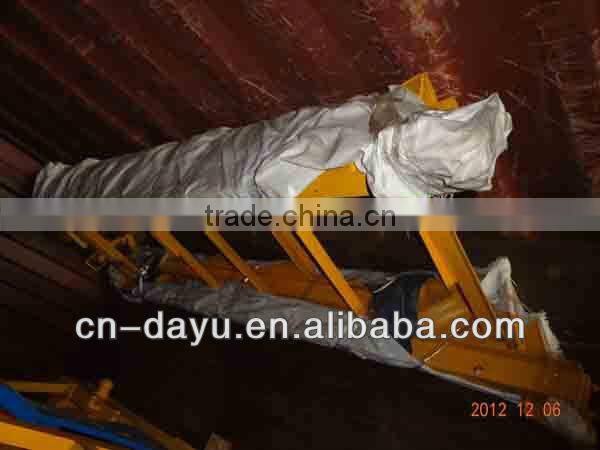

Packing picture of the mobile asphalt plant
Certificates of SLB mobile asphalt plant
