Specifications
Mobile Asphalt Mixing Plant Manufacturer20-100t/h
ISO9001,ISO14001,
CE,Gost
Mobile Asphalt Mixing Plant over 20 years

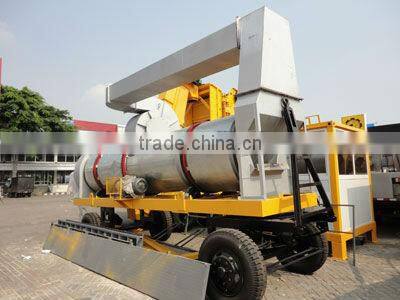

Mobile Asphalt Mixing Plant Manufacturer
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Mobile Asphalt Mixing Plant over 20 years.
Dayu mobile asphalt mixing plant manufacturer have three main groups of Asphalt Mixing Plant,
Mobile Asphalt Mixing Plant manufacturer
Small Asphalt Mixing Plant;
Batch Asphalt Mixing Plant
The Components of Mobile Asphalt Mixing Plant including Four Bin Feeder, Vibrating Screen System, Slinger Conveyor, Dryer Drum, Bitumen Tanks, Multicylone Exhaust, Load Out Conveyor, Mineral Filler, Control Cabin and Ldo Tank, which can working with good quality and high efficiency.
Main Parameters of Mobile Asphalt Mixing Plant DHB Series
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |
Main Structure of Mobile Asphalt Mixing Plant DHB Series
1 Cold aggregate supply system (mobile)
2 Middle filter
3 Drying drum (mobile)
4 Asphalt supply system
5 Electric control system
Batch Asphalt Mixing Plant
| Type | Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
Warranty Period ;12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co., Ltd
