Specifications
DHB Mobile Asphalt PlantOutput;20-100t/h
ISO9001,ISO14001,CE,Gost
Asphalt Drum Mix Plant over 20 years
after sale service
DHB(20-100t/h) Mobile Mini Asphalt Plant with best price
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Plants over 20 years.
Dayu Asphalt Plants:
1,Asphalt batch mix plant
2,Asphalt drum mix plant
3,Mobile asphalt plant
The components of mobile asphalt plant:
Four Bin Feeder, Vibrating Screen System, Slinger Conveyor, Dryer Drum, Bitumen Tanks, Multicylone Exhaust, Load Out Conveyor, Mineral Filler, Control Cabin and Ldo Tank, which can working with good quality and high efficiency.
Dayu DHB series moblie asphalt plant features:
Integrated drying, heating and mixing in the whole part. DHB series mobile asphalt mixing plant can continuously produce asphalt mixture. Simple structure, reliable working, flexible moving and convenient maintenance.
Main parameters of DHB series mobile asphalt plant:
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |
Main Structure of DHB series mobile asphalt plant:
1 Cold aggregate supply system (mobile)
2 Middle filter
3 Drying drum (mobile)
4 Asphalt supply system
5 Electric control system

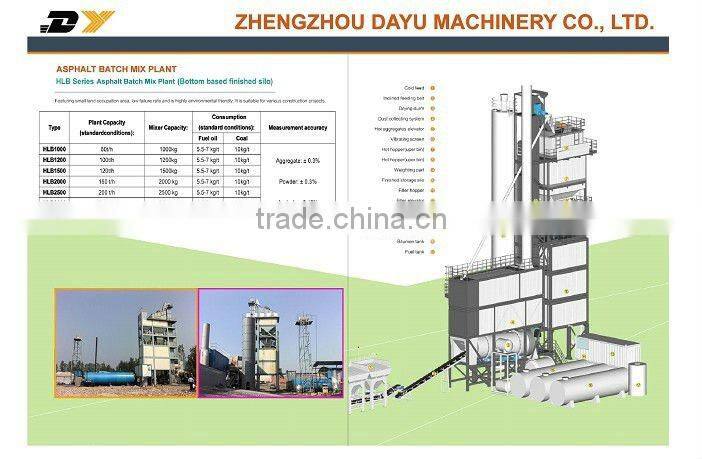

Dayu LB series batch asphalt plant(40-480t/h):
| Type |
Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t |
Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
Warranty Period ;18 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd
