Specifications
Rotary Dryer Coal Burner1.Five wind tunnel rotating
2.For 25-320t/h asphalt plant
3.New design structure, energy saving
RM series rotation type coal burner in our website:
(We can supply large range of RM series rotation type coal burner , Rated coal consumption from 500kg/h to 4000kg/h.)
Product Features -- china supplier RM series coal burner
1. Adopt new design structure, which changed the principle of traditional burner, adopt rotation type combustor to solve the imperfections of traditional burner(easy slagging, incomplete combustion).
2. High flame temperature, energy saving, burning sufficient.
3. Adopt high performance refractory brick, prolong service life.
4. 24 hours continuous production, no need do slag removal work everyday.
5. Production cost is low, the cost is only about 1/3 of the oil burner.
Technical parameters -- china supplier RM series coal burner
| Model | RM500 | RM1000 | RM1500 | RM2000 | RM3000 | RM4000 |
| Power | 31.25 kW | 41.25 kW | 73.75 kW | 80.25KW | 138.45 kW | 202.45kW |
| Rated coal consumption | 500 kg/h | 1000 kg/h | 1500 kg/h | 2000 kg/h | 3000 kg/h | 4000 kg/h |
| Mixture temperature control | 130-180°C | 130-180°C | 130-180°C | 130-180°C | 130-180°C | 130-180°C |
| Main machine | LTZ40 | LTZ80 | LTZ120 | LTZ160 | LTZ240 | LTZ320 |
| Coal pulverizer | FMJ40 | FMJ80 | FMJ120 | 2*FMJ80 | 2*FMJ120 | 3*FMJ120 |
| Oil burning igniter | RYDH | RYDH | RYDH | RYDH | RYDH | RYDH |
| Distribution cabinet | PD40 | PD80 | PD120 | PD160 | PD240 | PD320 |
| Combustion completeness | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
| Matching asphalt plant output | 25-40 t/h | 70-85 t/h | 100-125 t/h | 140-170 t/h | 200-250 t/h | 280-320 t/h |

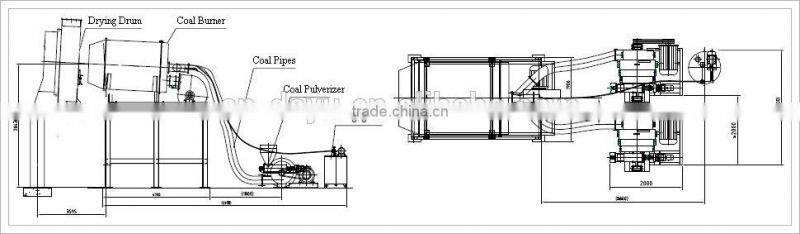

Technical Drawing -- china supplier RM series coal burner
The techincal drawing including drying drum, coal burner, coal pipes, coal pulverizer, oil burning lgniter.
