Specifications
Asphalt Batching Plant For Sale40-480t/h
ISO9001,ISO14001,CE,Gost
Asphalt Batching Plant over 20 years
after sale service

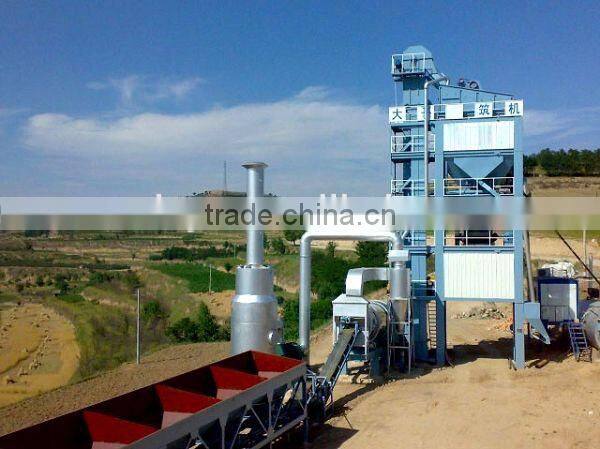

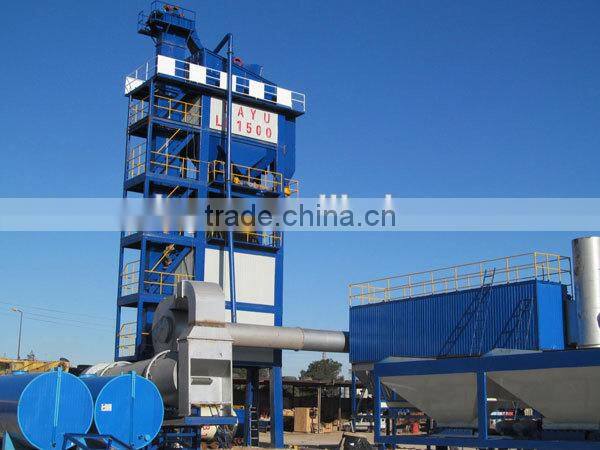

Asphalt Batching Plant For Sale
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Batching Plant For Sale over 20 years.
Dayu Asphalt Plant have three main groups
Asphalt Batching Plant For Sale
Drum Asphalt Mix Plant
Mobile AsphaltMix Plant

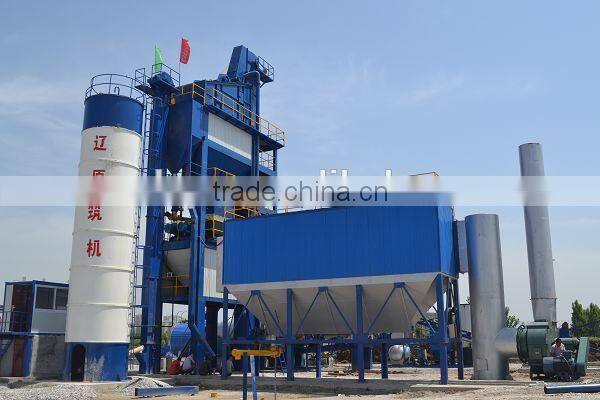

Asphalt Batching Plant For Sale
Asphalt Batching Plant For Sale mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Asphalt Batching Plant For Sale is one of the most popular products of Dayu for the high efficiency and excellent quality.
Both the integrated storage bins (HLB Series) and separated storage bins (LB Series) fall into the general category of large asphalt plants for the different location of the finished storage bins. Production capacity ranges at 40~480T/H.
Main Structure of Asphalt Batching Plant For Sale
Burning system
Vibrating screen system
Cold aggregate supply system
Electrical control system
Drying drum
Asphalt Batching Plant mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Burning system |
1.International brand oil burner (could use both diesel and heavy oil), full automatic control. |
Vibrating screen system |
1.The screen mesh is made from manganese steel with high strength; convenient for replace and maintenance; |
Cold aggregate supply system |
1.Aggregate supply system adopts 3+2 modularization structure and frequency conversion timing, making material delivery smooth. Without phenomenon such as block, obstruct and so on. |
Electrical control system |
The advanced control interface, industrial monitoring system and international famous brand electrical elements compose the operation system, can realize data management, input or store recipe, adjust time, material weighing correcting, failure self-diagnosis; failure alarming, interlock protection, store and print production reports etc. |
Drying drum |
1.Outside the drying drum is covered with a 50mm heat preservation structure, |
Main Parameters of Asphalt Batching Plant For Sale
| Type | Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |

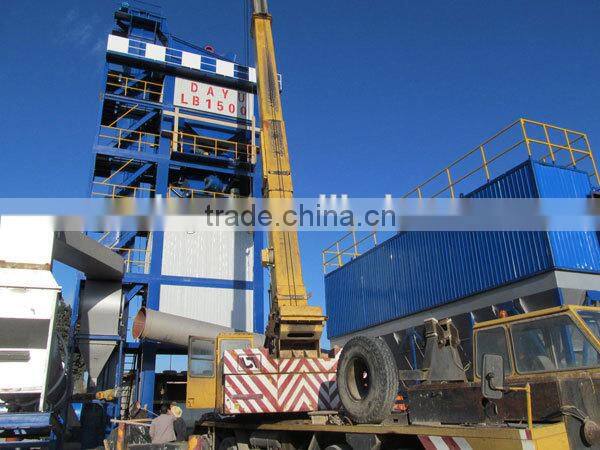

| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |

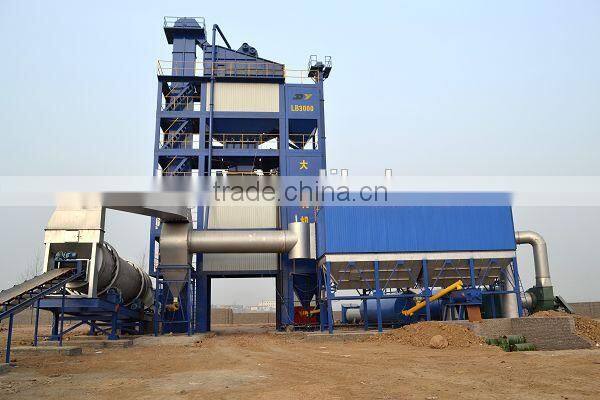

| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
Warranty Period ;12 months after install the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co., Ltd
