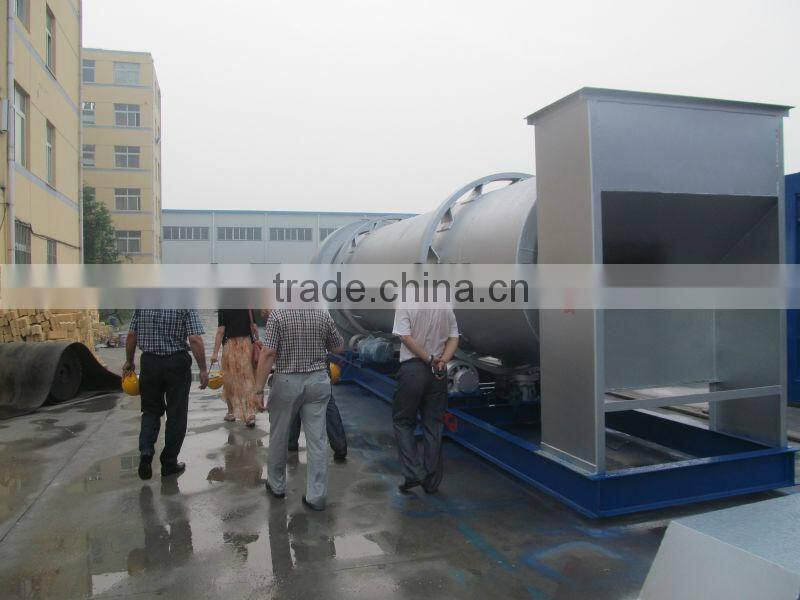

Asphalt Batch Mix Plant Operator
US$ 60,000 - 600,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Dayu Asphalt Batch Mix Plant
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Asphalt Batch Mix Plant SupplierUS$ 60,000 - 600,000MOQ: 1 Set -
Hot Mix Asphalt Plant ManufacturerUS$ 60,000 - 200,000MOQ: 1 Set
-
Hot Mix Asphalt Plant OperatorUS$ 60,000 - 200,000MOQ: 1 Set
-
Hot Mix Asphalt Plant SupplierUS$ 60,000 - 200,000MOQ: 1 Set
-
Asphalt Hot Mixer Plant For SaleUS$ 60,000 - 600,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Dayu Asphalt Batch Mix Plant
Model Number
LB
Voltage
adjustable
Power(W)
adjustable
Dimension(L*W*H)
adjustable
Weight
40-100t
Certification
CE,Gost,ISO9001,ISO14001
Warranty
18 months after install the plant, 12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Asphalt Batch Mix Plant Operatorcap;40-480t/h
oil burner;5.5-7kg/t
over 20 years
ISO9001, ISO14001 ,CE,Gost
Asphalt Batch Mix plant Operator
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Mix Plant over 20 years.
Asphalt Batch Mix Plant mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum
.
Burning system |
| 1.International brand oil burner (could use both diesel and heavy oil), full automatic control. 2.The coal burning system which possesses independent intellectual property rights, help the customers reduce the production cost. |
| Vibrating screen system |
| 1.The screen mesh is made from manganese steel with high strength; convenient for replace and maintenance; 2.Driven by two motors which are installed onto the screen, exciting force will be coupling automatically; |
Cold aggregate supply system |
| 1.Aggregate supply system adopts 3+2 modularization structure and frequency conversion timing, making material delivery smooth. Without phenomenon such as block, obstruct and so on. 2.Frequency conversion timing with credible capability; modulerized design will be convenient for transport. |
Electrical control system |
| The advanced control interface, industrial monitoring system and international famous brand electrical elements compose the operation system, can realize data management, input or store recipe, adjust time, material weighing correcting, failure self-diagnosis; failure alarming, interlock protection, store and print production reports etc. |
Drying drum |
| 1.Outside the drying drum is covered with a 50mm heat preservation structure, 2.Professional designed lifting blades inside the drum, which can promote thermal efficiency. 3.Temperature detecting device is equipment beside the outlet of the drum |
Asphalt Batch Mix Plant is one of the most popular products of Dayu for the high efficiency and excellent quality.
Both the integrated storage bins (HLB Series) and separated storage bins (LB Series) fall into the general category of large asphalt plants for the different location of the finished storage bins. Production capacity ranges at 40~480T/H.
Main Parameters of Asphalt Batch Mix Plant
| Type | Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
Warranty Period : 12 months since delivery the machine .
More information can be get by contact with Henan Dayu Group
