Fixed Mount Rotatable Usb 1D Barcode Scanner Price, Bar Code Scanner

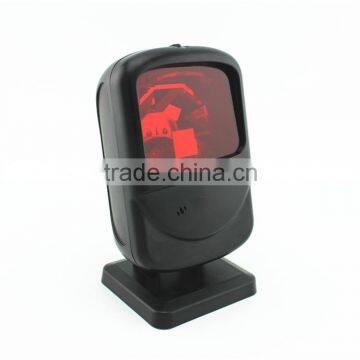

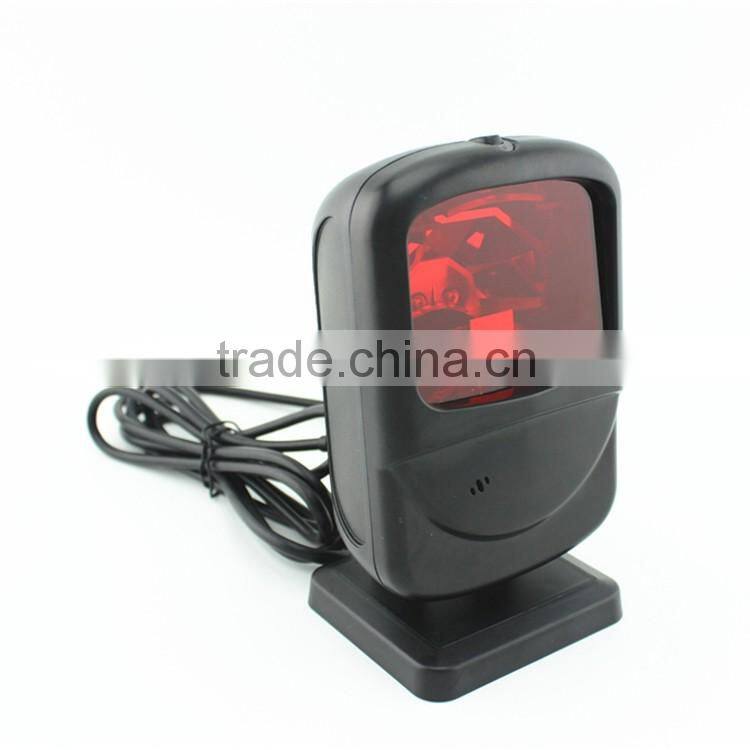

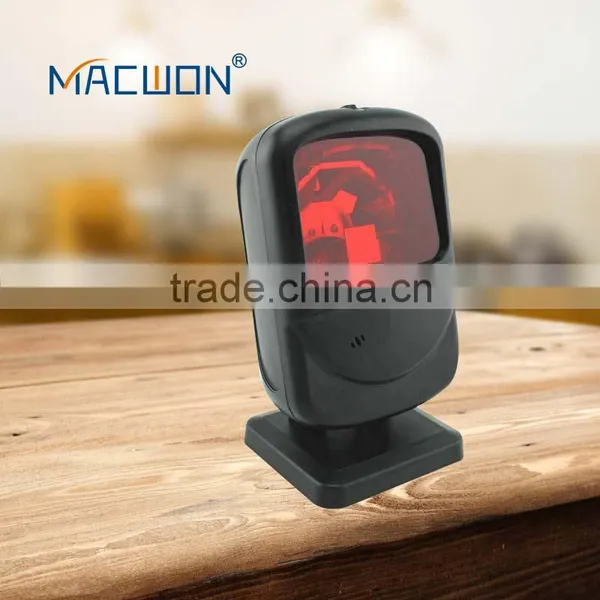

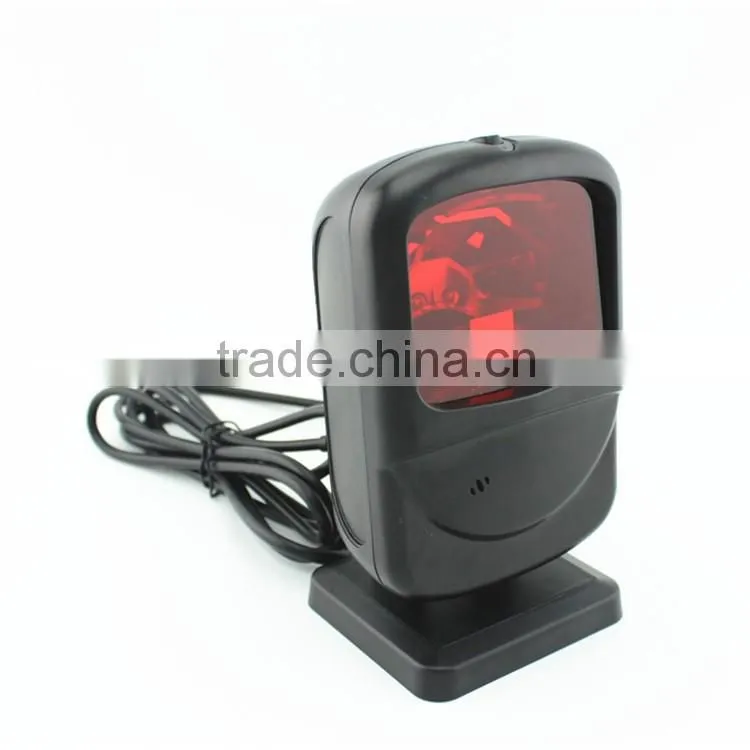

M-S9100 is a desktop omnidirectional barcode scanner ,is characterized by light weight,remarkable

perfmance without pause during working and assure the working efficiency .With exquisite appearance ,

M-S9100 is a kind of omni dirctional barcode scanner with stable working solution .This scanner is

 offered with a stable stand whicn bring a lot convenience to the scanner working by easy operation

used in all situtation .

Parameters

                |   Physical Feature

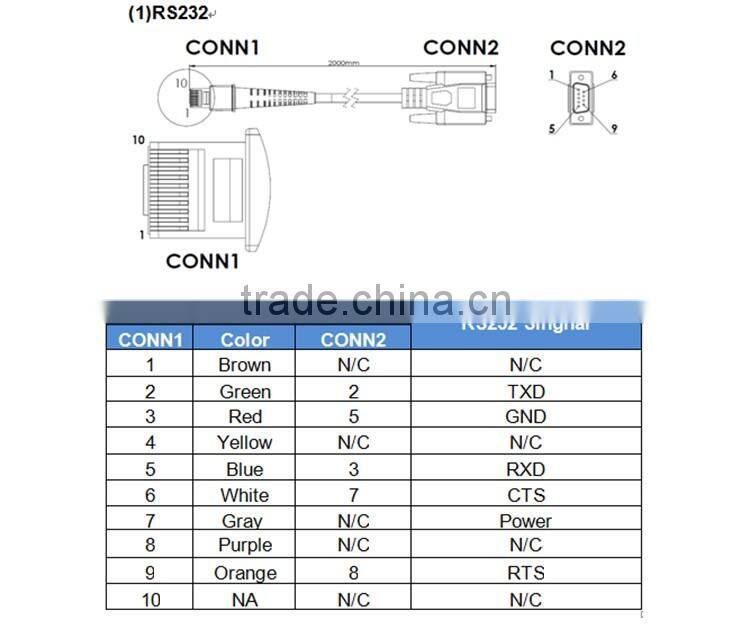

                  2)       Cable Drawing

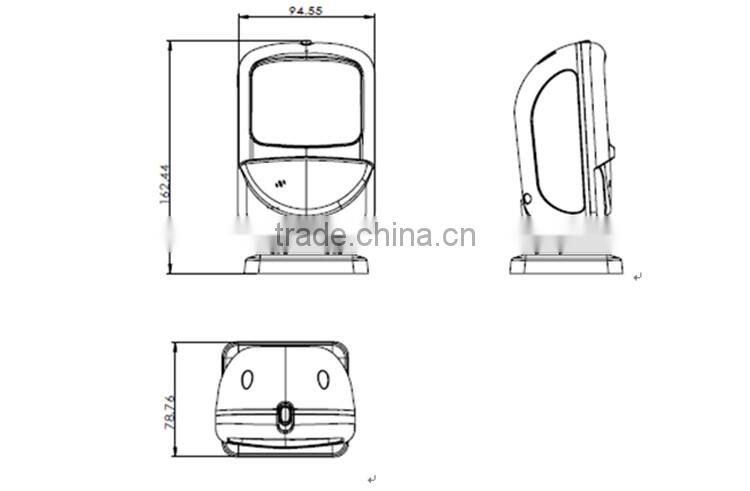

                                           (3)Mechanical drawing

                                      IV Decoding Capability

                                      V.    Pinout

                          VI.Depth of Feild

                                        All distance measurements use level symbology and measure in front of the

                                        non-integrable component scanner. Exit window can shorten reading distance

                                        of about 4%.
                                        W-S9100 scanning distance: all the test is made in the office (250lux)。

                     VII.Decoding Position

                           If you use W-S9100 Omini Directional Barcode Scanner ,do not need to know the Pitch

                           Angle of tilt, skew and tolerance.Within these range ,the scanning is much easier

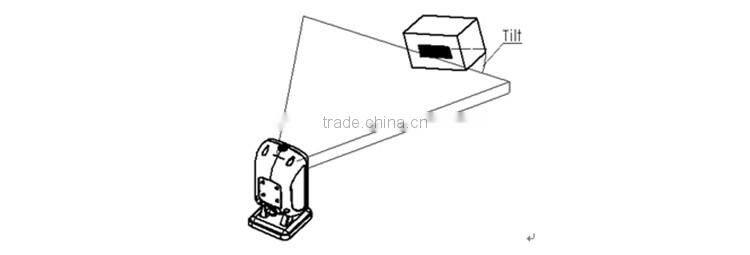

                          Angle of inclination

                          If all the barcode is in the range of the scanning light ,then the barcode can not be decoded .

                          If the barcode is in the range of the red light ,then the angle of inclination is 50°

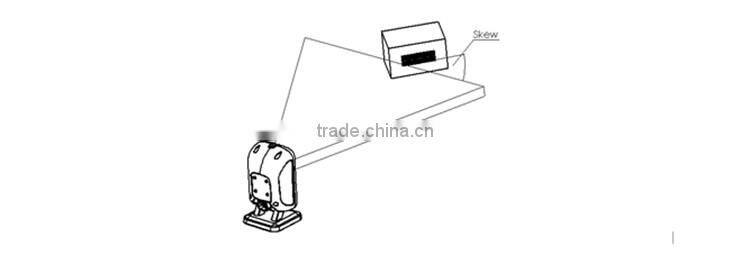

                              Skew .

                              Skew reduce the light width is the limited size of the high resolution size .The scanner

                              can read the barcode within the angle upto 65°.And you need to reduce the skew to

                              improve the decoding ability

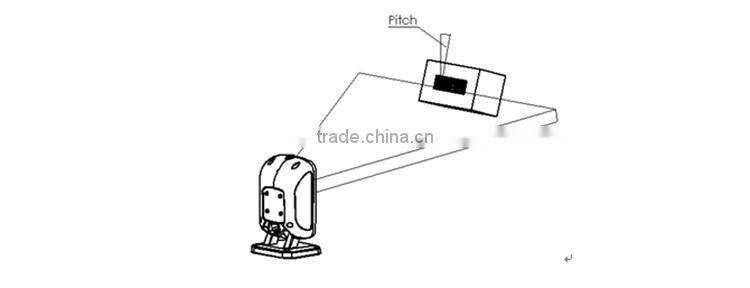

                                 Pitching

                                 Pitching reduce the height of the barcode .2°to 3°is the best range of pitching ,as it c an

                                 avoid the reflection of the light on the barcode .The scanner can read the barcode within

                                  the pitch range upto 35°.And by reducing the range of the pitch ,the decoding efficiency

                                  can be improved

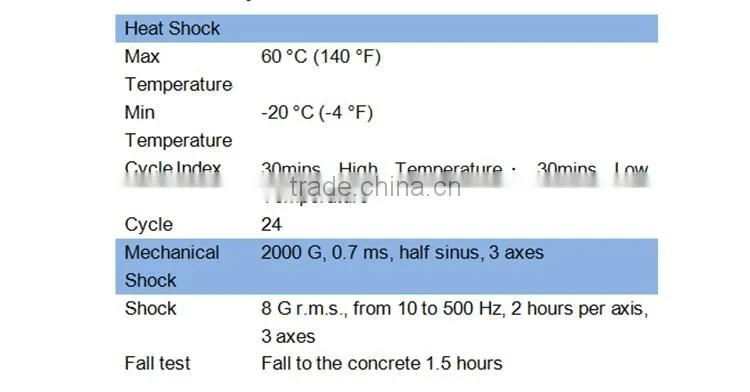

                           VIII.Reliability
