Desktop Omni-directional Usb 2D Barcode Scanner Price, Bar Code Scanner

Feature ：

1.Ergonomic ,Support Angle Adjustment
2. Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode .
3.Support all the 1D and 2D barcode ,and commercial barcode ,pharmacy barcode .logistical barcode ,post barcode ,folding barcode ,small barcode ,barcode covered by film and unclearly printed barcode .ect
4.Supported 2D Barcode :QR、DATA Matrix、PDF417
5.Decoding the barcode on the screen,like the 2D barcode issued by Wechat ,Ali-pay.1D and 2D payment barcode .
6.CCD image technology without aligning the light to the barcode and dead zone .Automatically scanning means to let barcode close to the scanner ,then the scanner will detect the item and decoding the barcode .So when use the auto sense unction ,let the item remove from the scanner window,then move the item to window to scan .To Chinese 2D Barcode ,the in-virtual USB driver can be offered freely

Product Information

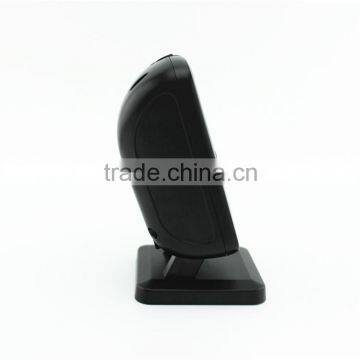

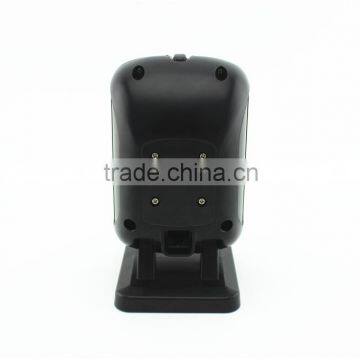

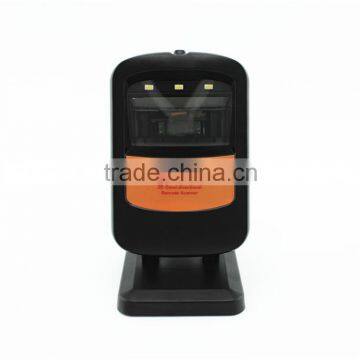

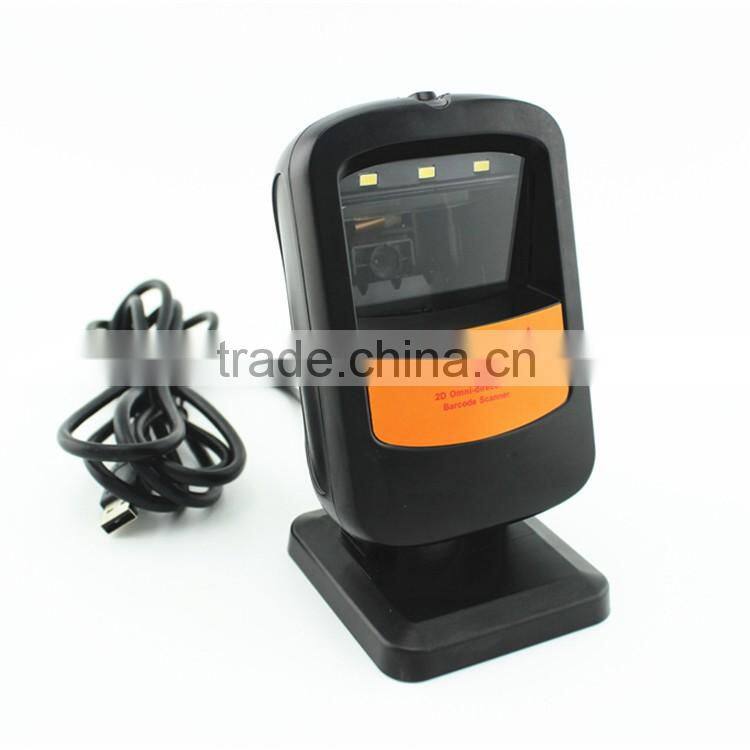

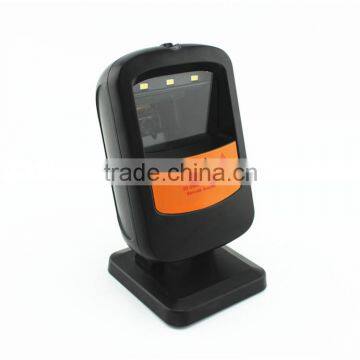

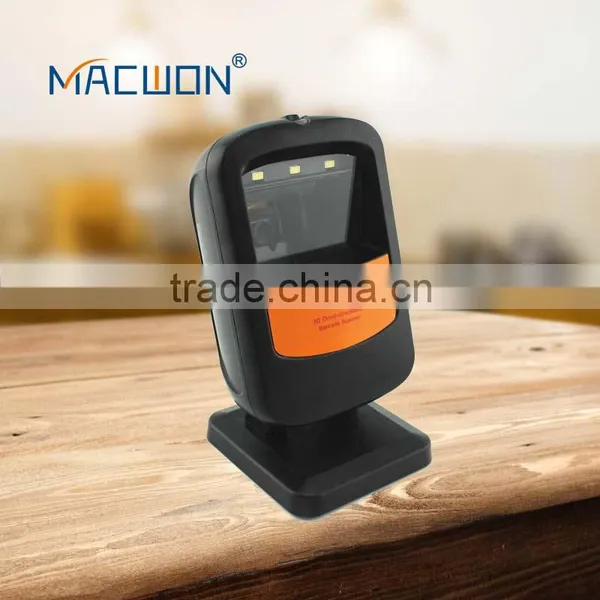

M-S9200 is a2D desktop omnidirectional barcode scanner ,is characterized by light weight,remarkable performance without pause during working and assure the working efficiency .It can support all type 1D and 2D barcode .With exquisite appearance ,M-S9200 is a kind of omni-directional barcode scanner with stable working solution .This scanner is offered with a stable stand which bring a lot convenience to the scanner working by easy operation used in all situation

Parameter

Physical Parameter

Item weight 250g
Cable weight 200g
Dimension 78mm x 75mm x 141mm

Electronic Parameter

Basic Parameter

Light Source Visible red light 630nm + 10nm
Max reading speed ：25cm/sec.
Reading Angle： 55°（horizontal ）, 37.5°（Vertical）
Interface ：USB、RS232

Environmental Parameter

Working Temperature ：-20°C to 60°C (-4°F to 144°F)
Storage Temperature ：-30°C to 70°C (-22°F to 158°F)
Relative Humidity ：5% to 95% (non condensing )
Environmental light：Normal Inside and outside sun light

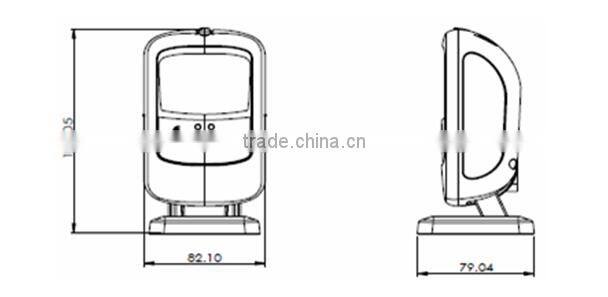

Mechanical Drawing
(mm)

Decoding Capability

Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN.

Reliability

Max Temperature ：60 °C (140 °F)
Min Temperature ：-20 °C (-4 °F)
Cycle Index ：30mins High Temperature；30mins Low Temperature
Cylcle times：24
Mechanical Shock:2000 G, 0.7 ms, half sinus, 3 axes
Shock :8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes
