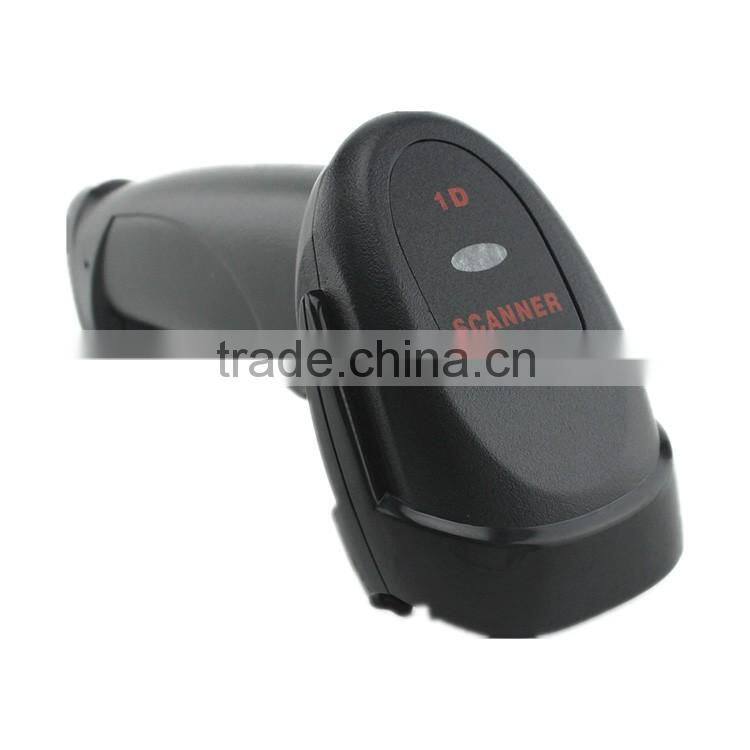

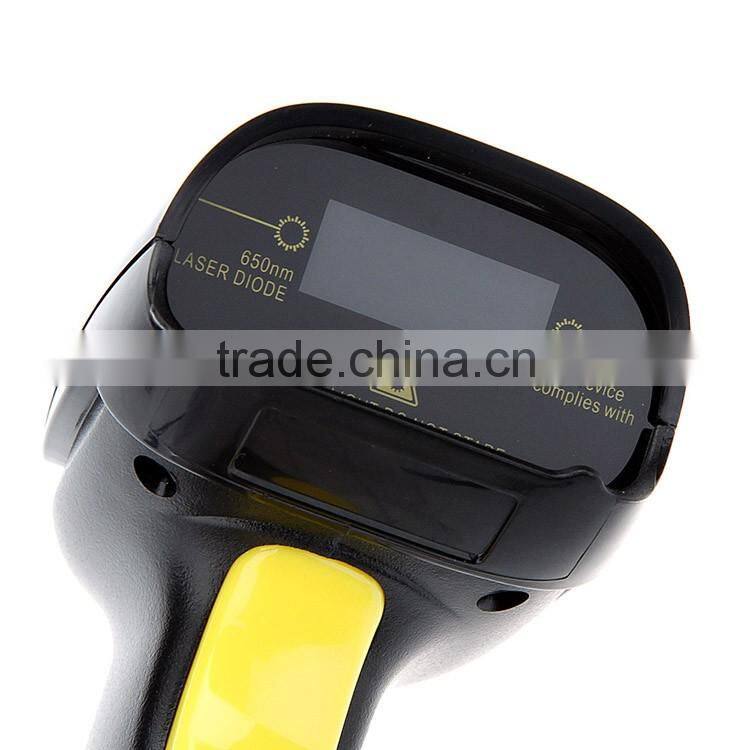

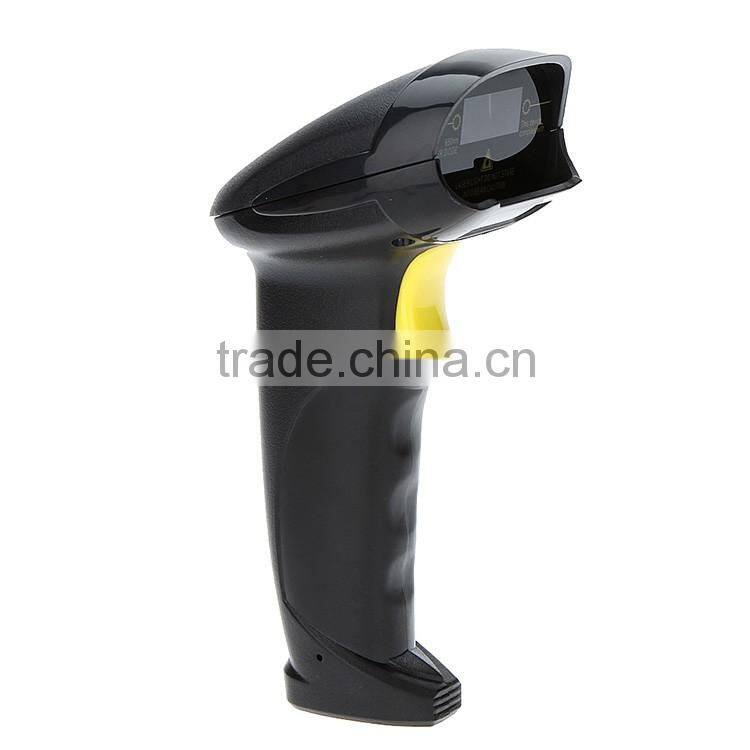

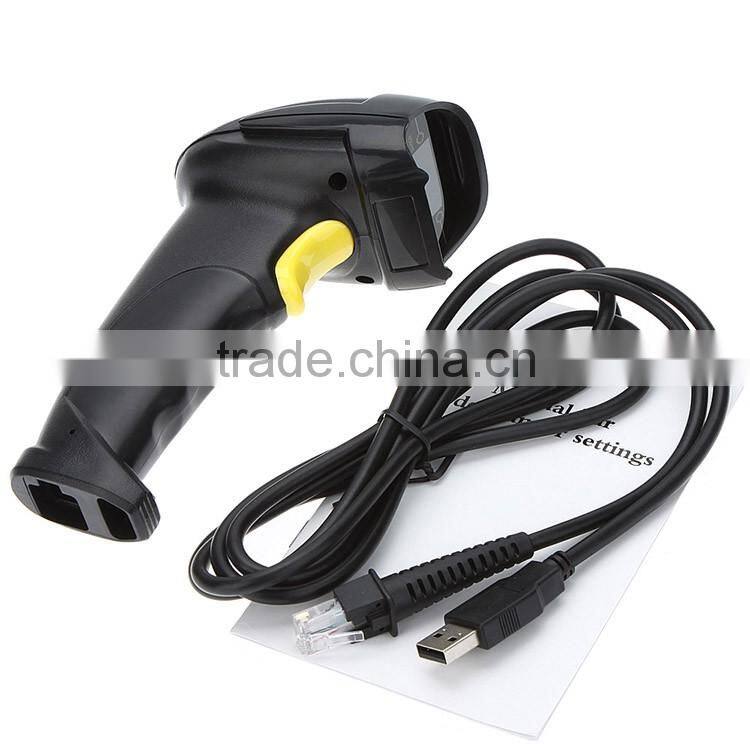

Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner

Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner thumbnail-1
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner thumbnail-2
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner thumbnail-3
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner thumbnail-4
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner thumbnail-5
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner photo-1
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner photo-2
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner photo-3
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner photo-4
Handheld Supermarket Laser 1d Barcode Scanner, Bar Code Scanner photo-5
US$ 11.3 - 15.4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CIS
Contact Supplier Request Quote Chat Now
Shanghai Macwon Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Barcode Scanner
Scan Element Type CIS
Colour Depth 32 Bit
Interface Type PS/2, USB, Other, PS/2, USB, RS232
Max Paper Size 30CM
Optical Resolution 4mil
Scan Speed 300 scans/sec, 300 line / sec
Brand Name MACWON
Model Number M-S8200
Place of Origin Shanghai, China
Product Description

Handheld supermarket laser 1d barcode scanner, bar code scanner

Features

1. Simple installation, Keyboard Wedge, Serial, Wand Emulation tc.
2. Superior keyboard wedge interface- NOVELL compatible-auto Caps Lock detection ensures that the data always appears on the computer just the way it is encoded in the barcode.
3. Simple programming from your keyboard or scan barcodes.
4. Over 180 configurable options.
5. Auto detection of the type of computer (PC,XT,AT,PS/2, and XWindow terminals with a PC compatible keyboard interface).
6. Can be used with or without the keyboard.
7. Supports over twenty different keyboard country layouts.
8. Map barcode data to any key ont the keyboard.
9. Supports editing, operations include (Insert, Stripping, Filtering,Convert Case).
8. Programmable preamble, postamlbe,and termination strings.
9. READ/NO-READ indicators( buzzer and LED).
10. Superior reading performance utilizing advanced decoding algorithms.
11. Extended ASCII support for Code 128 barcodes.
12. Low power consumption.

1.Application

1.e-Ticketing
2.Electronic Coupon
3.Medical information management
4.Catalogue management
5.Client management
6.Order management
7.Document tracking
8.Public security management
9.Inventory management
10.Parcel transport management
11.Card manaegment
12.Fixed asset management
13.Equipment management
14. OA

2.Application Area

1. Retail industry
2. Medical industry
3. Airline
4. Logistics
5. Financial
6. Construction
7.Manufacturing
8. Gov and public

specifications
Technical parameter
Light
650(visible laser)
Scan model
single line Bi-directional
Scan speed
300 line / sec
Resolution
4 mil
Width of scan
5-30 cm
Depth of scan
2-40cm
Corner
±30°
Elevation
±65°
Deflection
±55°

Decoding Capability
UPC/EAN、UPC/EAN(include complement code)、 Code128、
UCC/EAN128、Code39、Code 39Full ASCII、Code128Full
ASCII、Codabar、Interleaved 2 of 5、Code93、MSI、Code11、ISBN、ISSN、china post code、etc
Interface
RS232,PS2,USB
Print contrast
20% minimum
Bit error rate
1/5 million
Prompt
buzzer indicator
Scan model
handheld / auto-sense
Physical parameter
Size
L X W X H: 165mm x 63 mm x 87 mm
Weight
0.28kg
Material
ABS+PC
Cable standard
straight: 2.0m
Electrical parameter
Voltage
5v
Working current
85mA
Standby current
36mA
Laser security
according with national level2 laser security standards
EMC
CE & FCC DOC compliance
Environment parameter
Working temperature
0℃-45℃
Storage temperature
-20℃-60℃
Humidity
relative humidity  5%-95%(non-condensing)
Environment Luminance
Max.5000Lux(flsorescence)
Anti-knock
1.5m fall to cement
