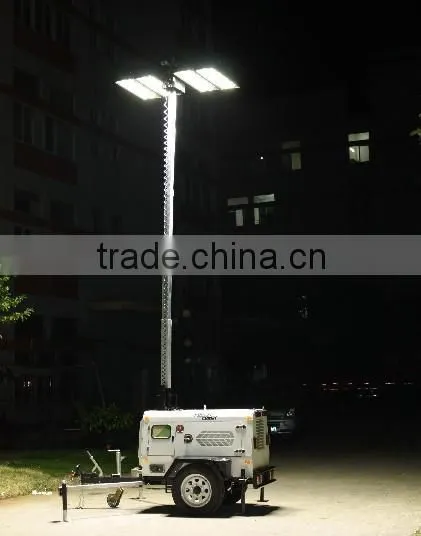

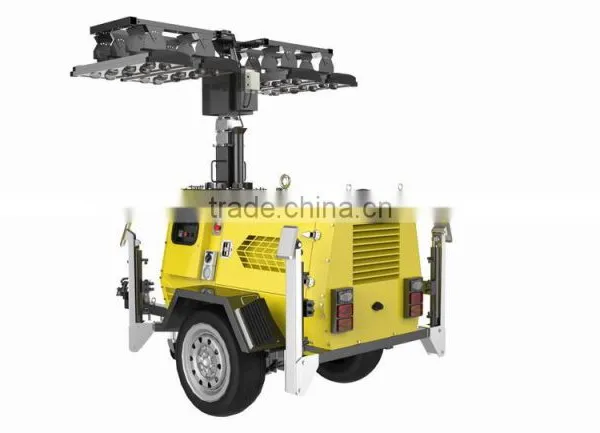

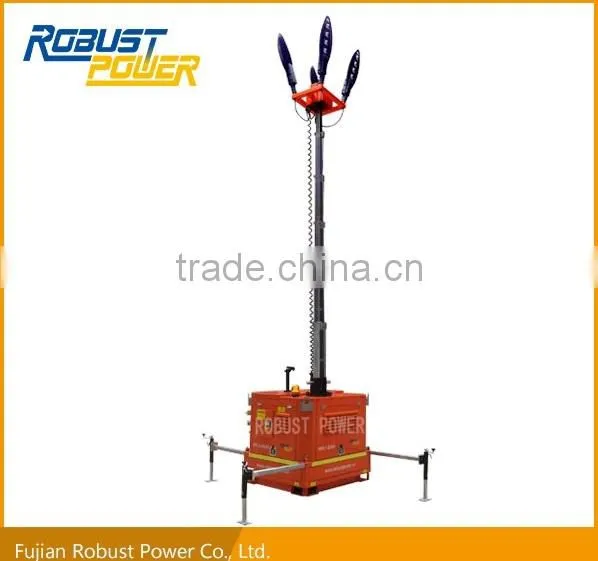

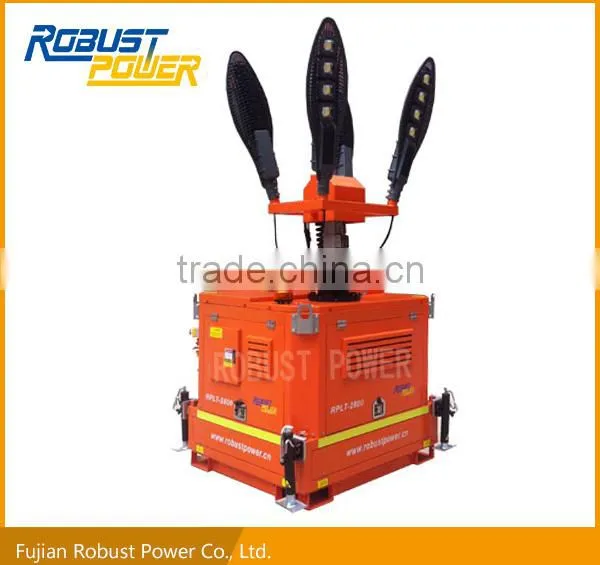

Light Tower(Moveable)
RPLT-1600B SPECIFICATIONS
Genset Model: RPD6500F
Rated Frequency(Hz): 60
Rated Power(KW): 5
Max. Power(KW): 5.5
Rated Voltage(V): 240/120
Rated Current(A): 20.9/41.8
Rated Speed(r/min): 3600
Phase Number: Single
Excitation Mode: Self-excitation and constant voltage
Power factor(Cos0): 1
Insulation grade: B
Pole Number: 2
Engine model: RP186A
Engine type: Single cylinder, 4-stroke, air cooled, vertical, diesel engine
Bore*Stroke(mm): 86*72
Displacement(L): 0.418
Compression ratio: 19:1
Rated Power(kw/rpm): 6.3/3600
Fuel type: 0#(summer)-10#(winter)-35#(chill cold) diesel
Lube Oil brand: SAE10W30(above cc grade)
Fuel consumption(g/kw.h): 360
Fuel tank capacity(L): 15
Continuous running time(Hr): 8
Overal dimension(mm)(L*W*H):1200*900*900
Tower dimension(mm)(L*W*H): 2000*300*300
Dry weight(kg): 272
Starting system: Electric
Noise level(dBA/7m): 272
Genset structure type: sound proof
Genset control panel: Digital shown module panel
Light watts and Light No.: 400W*4
Max. Height: 4800MM
Send Inquiry to This Supplier
