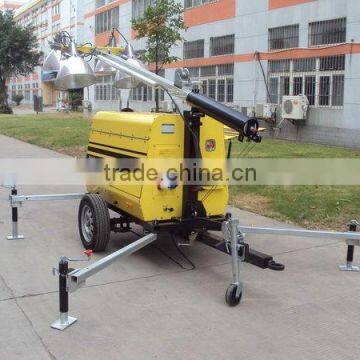

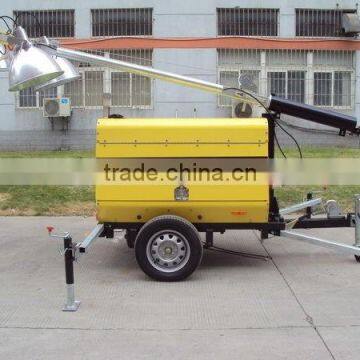

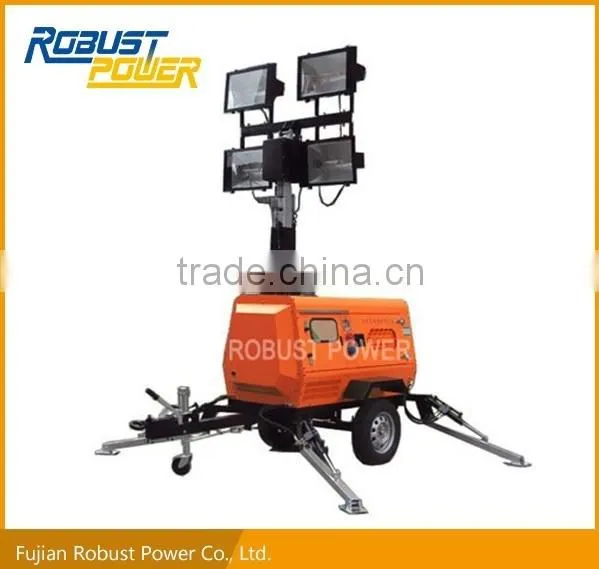

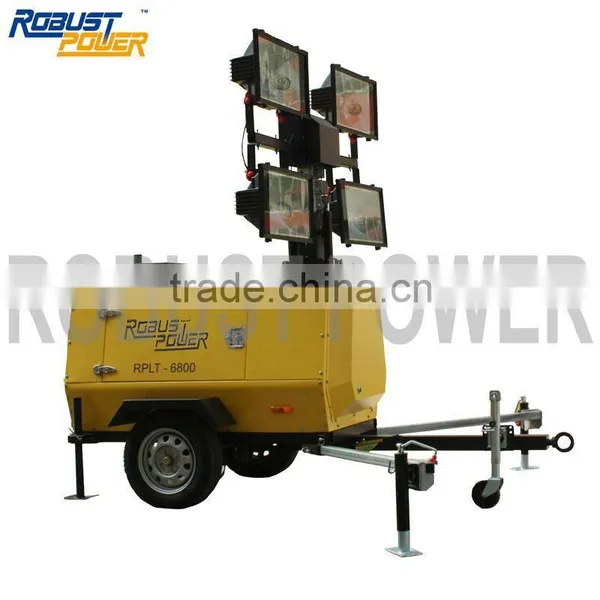

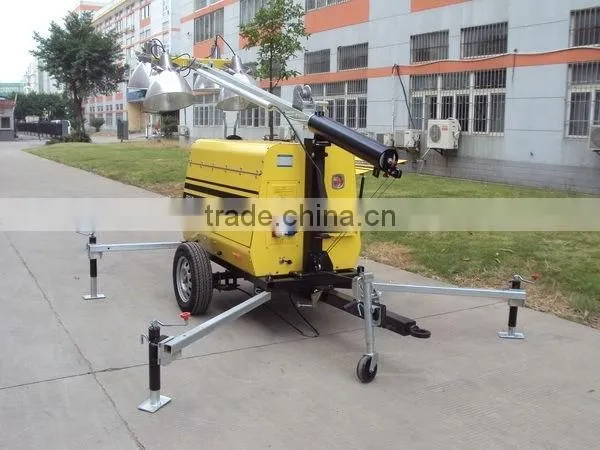

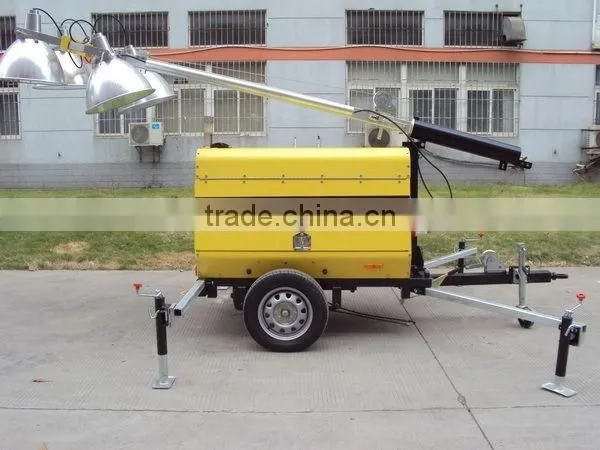

Light Tower (RPLT6800) diesel engine kubota

MODEL

RPLT6800

 Mast

 Maximum extension of mast

9m

 Elevation

 Hydraulic

 Raising / Lowing mast

                       Hydraulic

 Stages

7

 Turning angle

360 degree non-continuous

 Lamp

 Total power of lamps

4×1000W

 Type of lamp

Metal halide lamp

 Light capacity

4×110000 lumen

 Frequency

50Hz

 Lifetime of lamp

5000 hours

 Working temperature

≤85

 Connection protection index

IP54

 Light Coverage

5 to 7 acres

 Characterisitics of the generator

 Model

RD-10K

 Rated power

50Hz 6.0kW

 Standby power

 50Hz 6.6kW

 Voltage

120,220,230,240

 Engine model

Kubota D1105-BG Diesel

 Engine speed

50Hz 1500 rpm

 Engine type

3 cylinder, in line, water-cooled

Natural

 Alternator

4-pole,brushless

 Fuel tank capacity

100L

 Prime fuel consumption at 100% load

2.0L/h

 Working hours

 50

 EU Stage A

 Control systerm

RL 210 Digital controller

 Power outlet

 2

 AL-KO Trailer

 Tow hitch

 ball hitch

 Stabilizer Support

 5 × manual

 Tire Size

  Diameter=52cm

 Anti-wind capacity

≤10

 Brakes

Manual

 Dimension & Weight

 Retracted  Dimension

4400 × 1200 × 1930

 Container load (20FT / 40FT)

6 / 12

 Net weight

970kg
