Specifications
1. two color Sheet Extruder can make one color sheet or two colors sheet2. popular used for flower pot
3. high output

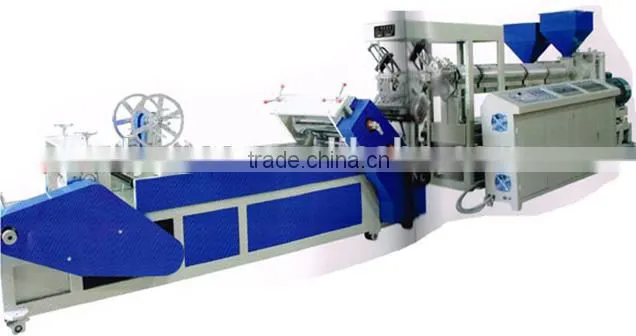

Double color plastic sheet machine
The machine is suitable for the production of polypropylene (PP), polyethylene (PE), polystyrene (PS) and other plastic sheet, sheet is used for making double color plastic flower POTS, drinking cups, li riceses leave, rice pudding, ice cream cups, jelly cups, boxes and other packaging container.
The main parameters
Project parameters |
Unit |
Value |
Note |
Materials |
|
PP,PE,PS,HIPS |
|
Forming sheet thickness |
mm |
0.3~2.0 |
|
Sheet thickness accuracy |
mm |
≤±0.015 |
>0.mm |
|
mm |
≤±0.010 |
<0.mm |
Effective width of the sheet |
mm |
≤650 |
|
Capacity |
Kg/h |
200kg/h |
|
Maximum dacheng roll diameter |
mm |
700 |
|
layers |
Layer |
2 |
|
Roller specification |
Mm |
350×750/3 article |
|
Rated power |
Kw |
75 |
|
| Dimension | mm |
12500×2500×2200 |
Function characteristics:
1, screw, the screw barrel, mold the first main parts adopt 38 crmoala alloy materials and the nitriding treatment, has the advantages of wear-resisting corrosion.
2, good length to diameter of the screw plasticization, guarantee sheet of the main performance.
3, die parts replacement filter, using the motor up-down device, convenient operation can improve the production efficiency.
4 using square steel, machinery, make the machine more stable.
5, adopt hard tooth surface gear, three roll spiral cooling.
6, the die can be customized according to customer's requirements in heating and heating, or motor and hydraulic network to replace the network.
