Plastic Cup Molding Machine Made in China

Specifications

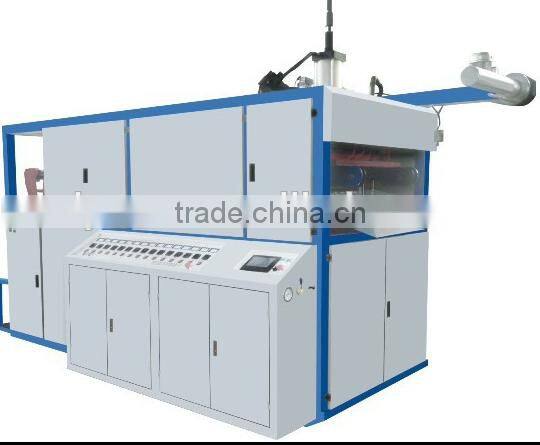

Automatic Plastic cup molding machine

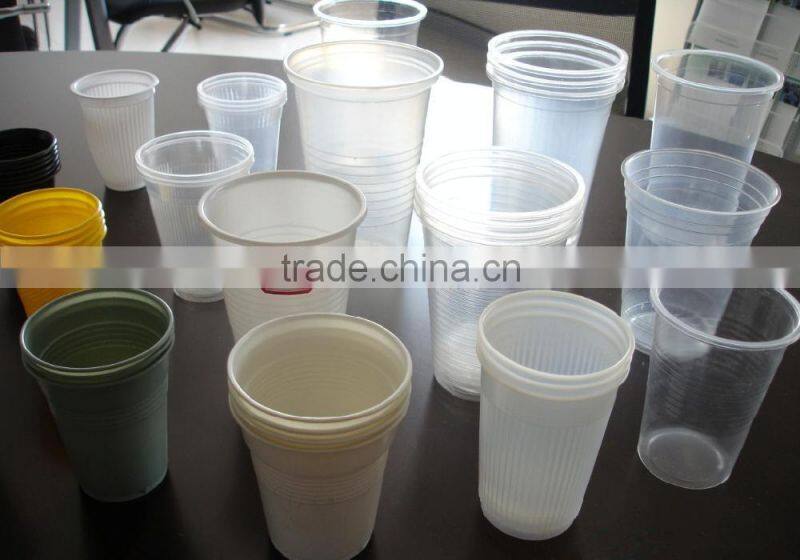

The machine is used for production of disposable plastic products, such as disposable plastic cups, bowls, takeout containers, and jelly cups, tea cups, etc., also can be used for electronic packaging, food packaging, etc.

Main Technical Data

Feature

1. Host for 2 x 95 guide pillar structure, guide pillar materials of 45 # steel conditioning, outside hard chrome plating, good rigidity, guide is accurate performance, wear resistance, can help the service life of the die cut mouth.

2. The CAM system, energy saving save electricity, hydraulic oil, maintenance for one year of cost savings can be enough to buy a cup machine.

3. The heater (electric) is divided into seven area, temperature control meter to realize PID automatic temperature adjustment, temperature control error < 1.5 °C.

4. The heater USES the embedded components, ceramic far-infrared radiation heating effect, high safety and reliability.

5. Send chain using toothed double row of roller chain, caterpillar built-in cooling waterway, high cooling efficiency, save water, the inside of the cover article stainless plate, guide caterpillar using 45 # steel forging, surface nitriding, face high hardness, long service life.

6. Low center of gravity design, out of the cup height is low, stable operation, accord with human body stand and watch the best height operation.

7. Motor and encoder to send piece, high control precision, and quick response. Every piece of the error is less than 0.5~5mm, have the effect of saving sheet.

8. Install over-current protection device for the motor.

9. Configuration leftover material winding mechanism (reducer), maximum diameter of 0.8 m, and convenient for volume change.
