Eccentric reducing rubber joint has good comprehensive performance, so it is widely used in chemical industry, building, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, such as infrastructure, can also according to different materials can be made from acid, alkali resistance, corrosion resistance, oil resistance, heat resistance, and other varieties, to adapt to a variety of media and the environment.
Product performance:
1, KYP eccentric reducing rubber joint has good elasticity and long service life, especially for some installation environment is harsh environment have a good ability to adapt.
2, installed on the pipeline can be achieved for pipeline axial, lateral and angular displacement compensation, guarantee the pipeline safe operation, so as to prolong the service life of pipelines.
3, good vibration reduction noise reduction function, greatly optimize the running environment of the pipe lines.
Product use:
Due to eccentric reducing rubber joint has good comprehensive performance, so it is widely used in chemical industry, construction, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, electric power and other basic engineering, shakes the pipes of larger pipe, cold heat changes frequently.

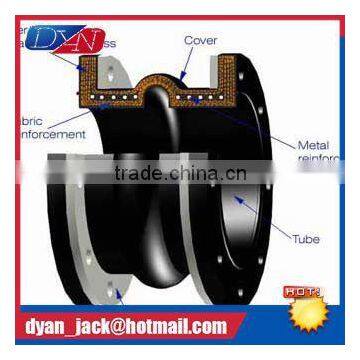

Material of each parts
| No. | Part | Material |
| 1 | Body | (NR),(CR),(IIR),(NBR),(FKM),(EPDM) |
| 2 | Inner & Outer Rubber | (NR)(CR)(IIR) (NBR)(FKM)(EPDM)(PTFE) |
| 3 | Body Carcass | Nylon cord fabric |
| 4 | Reinforcing Ring | Multi-strand coppering steel wire |
| 5 | Flange | Cast and forged carbon steel(Q235),Stainless steel(201,304,316,321), Plastic(CPVC,PVDF,PPH,UPVC,RPP) |
Technical parameters
| Item |Medol | KYP(DN25~300) | KYP(DN350~500) | A. If media is oil, acid or alkali. B. If special requirements for working temperature C. If OEM orders with drawings or samples D. Please Inform us about above when ordering | |
| MpaWoring pressure | 1.0 | 0.6 | ||
| Mpa Burst Pressure | 1.8 | 1.5 | ||
| Kpa Vacuum | 86.7 | 53.3 | ||
| Applicable Temperature | -20℃~+115℃(-30℃~+250℃ under special conditions) | |||
| Applicable Medium | Air, compressed air, water, sea water, oil, acid, alkali, etc. | |||
| Note: the materials of main parts are the same with those of KXT type | ||||
Main date:
| Nominal Diameter (mm) | LengthL(mm) | Axial displacement (mm) | Haorizontal isplacement(mm) | Angular deflection(a1+a2)° | |
Extension | Compression | ||||
| 40×25 | 115 | 7 | 12 | 10 | 10 |
| 40×32 | 125 | 7 | 12 | 10 | 10 |
| 50×40 | 180 | 7 | 12 | 10 | 10 |
| 65×40 | 180 | 7 | 12 | 10 | 10 |
| 65×50 | 180 | 7 | 12 | 10 | 10 |
| 80×50 | 180 | 7 | 12 | 10 | 10 |
| 80×65 | 180 | 7 | 12 | 10 | 10 |
| 100×50 | 180 | 7 | 12 | 10 | 10 |
| 100×65 | 180 | 7 | 12 | 10 | 10 |
| 100×80 | 180 | 8 | 14 | 12 | 10 |
| 125×65 | 200 | 8 | 14 | 12 | 10 |
| 125×80 | 200 | 8 | 14 | 12 | 10 |
| 125×100 | 200 | 10 | 20 | 12 | 10 |
| 150×50 | 200 | 10 | 20 | 12 | 10 |
| 150×65 | 200 | 10 | 20 | 12 | 10 |
| 150×80 | 200 | 10 | 20 | 12 | 10 |
| 150×100 | 200 | 10 | 20 | 12 | 10 |
| 150×125 | 200 | 12 | 20 | 14 | 10 |
| 200×80 | 200 | 12 | 20 | 14 | 10 |
| 200×100 | 200 | 12 | 20 | 14 | 10 |
| 200×125 | 200 | 12 | 20 | 14 | 10 |
| 200×150 | 200 | 12 | 20 | 14 | 10 |
| 250×125 | 220 | 12 | 20 | 14 | 10 |
| 250×150 | 220 | 12 | 20 | 14 | 10 |
| 250×200 | 220 | 12 | 20 | 20 | 10 |
| 300×125 | 220 | 14 | 22 | 20 | 10 |
| 300×150 | 220 | 14 | 22 | 20 | 10 |
| 300×200 | 220 | 14 | 22 | 20 | 10 |
| 300×250 | 220 | 14 | 22 | 20 | 10 |
| 350×150 | 240 | 14 | 22 | 20 | 10 |
| 350×200 | 240 | 14 | 22 | 20 | 10 |
| 350×250 | 240 | 14 | 22 | 20 | 10 |
| 350×300 | 240 | 14 | 22 | 20 | 10 |
| 400×200 | 240 | 14 | 22 | 20 | 10 |
| 400×250 | 240 | 14 | 22 | 20 | 10 |
| 400×300 | 240 | 14 | 22 | 20 | 10 |
| 400×350 | 240 | 14 | 22 | 20 | 10 |
| 450×300 | 240 | 14 | 22 | 20 | 10 |
| 450×350 | 240 | 14 | 22 | 20 | 10 |
| 450×400 | 240 | 14 | 22 | 20 | 10 |
| 500×350 | 240 | 14 | 22 | 20 | 10 |
| 500×400 | 240 | 14 | 22 | 20 | 10 |
| 500×450 | 240 | 14 | 22 | 20 | 10 |
| Notes: 1. For OEM orders with special requirement, rubber joints can be made according to customers' drawings. Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request. Material of rubber body can be NR natural rubber, EPDM, Neoprene, IIR butyl rubber, NBR Buna-N, FKM, etc. 2.When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units shall be installed on rubber joints. 3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges. | |||||
| MOQ | 1PC, OEM orders acceptable. |
| Packing details | Plastic/carton box, then seaworthy plywood case, or as per request. |
| Shipping method | By express, by air or by sea |
| Shipping port | Shanghai, Qingdao, Tianjin or as per request. |
| Shipping time | 7-15 days after receiving advance payment, or according to order quantity. |
Installation instructions:
1, when installation to protect the ball at the ends of the rubber sealing surface, and the media do not meet the requirements of the product is strictly prohibited. Please refer to additional product installation manual carefully before install and use, to avoid some unnecessary loss.
2, eccentric reducer rated working pressure of the rubber joint working pressure than it actually is a gear, to ensure the safe operation of the pipeline can.
3, pipe must have a fixed support or fixed bracket, the force must be greater than the axial force of fixed bracket. When installed vertically and aerial product should be installed on both ends of the corresponding fixed bracket and mechanical support, in order to prevent pulled off after work under pressure.
4, rubber joint in the process of flange connection, according to diagonal uniform pressure way for installation, it can avoid uneven force, cause the late of pipeline leakage.
5, rubber joint during the installation process must avoid beyond their displacement to compensate the pipeline vibration and heat bilges cold shrink. By adding spacing device or increase the quantity of rubber joint, divide the work pressure is the right choice.
