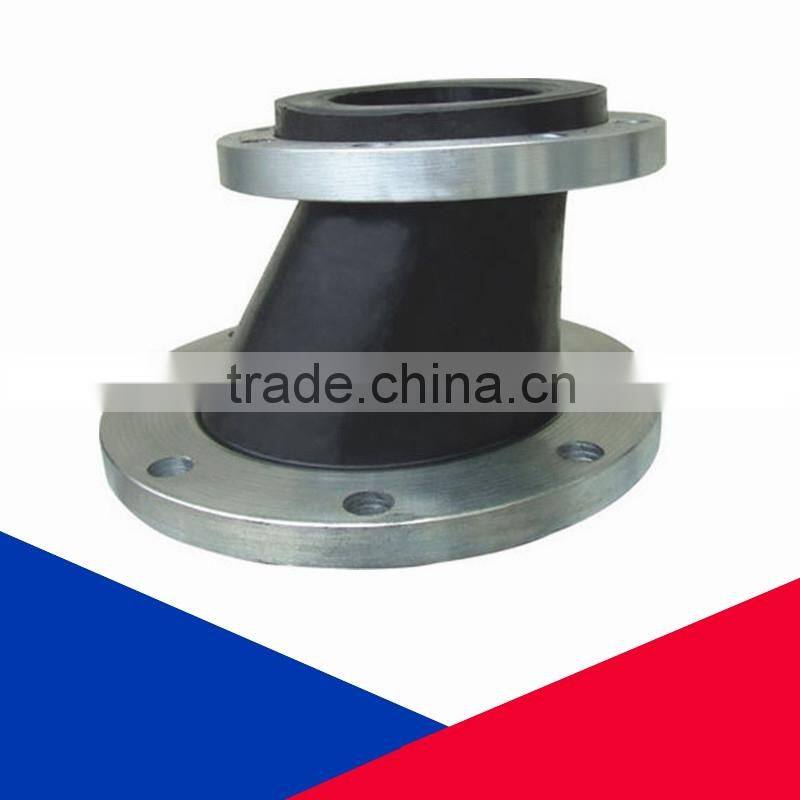

PN10-PN16 Eccentric Reducing Rubber Shock Absorber Convenient Pipe Connection

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port QINGDAO/TIANJIN/SHANGHAI/DALIAN
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Carbon Steeland rubber	Technics	Forged
Type	Union	Place of Origin	Henan, China
Model Number	RJ02	Brand Name	DYAN
Connection	Flange	Shape	Reducing
Head Code	Other, round

Product Description

PN10-PN16 Eccentric reducing rubber shock absorber Convenient pipe connection

Product Description

Eccentric reducing rubber joint has good comprehensive performance, so it is widely used in chemical industry, building, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, such as infrastructure, can also according to different materials can be made from acid, alkali resistance, corrosion resistance, oil resistance, heat resistance, and other varieties, to adapt to a variety of media and the environment.

Product performance:
1, KYP eccentric reducing rubber joint has good elasticity and long service life, especially for some installation environment is harsh environment have a good ability to adapt.
2, installed on the pipeline can be achieved for pipeline axial, lateral and angular displacement compensation, guarantee the pipeline safe operation, so as to prolong the service life of pipelines.
3, good vibration reduction noise reduction function, greatly optimize the running environment of the pipe lines.

Product use:

Due to eccentric reducing rubber joint has good comprehensive performance, so it is widely used in chemical industry, construction, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, electric power and other basic engineering, shakes the pipes of larger pipe, cold heat changes frequently.

Material of each parts

No.	Part	Material
1	Body	(NR),(CR),(IIR),(NBR),(FKM),(EPDM)
2	Inner & Outer Rubber	(NR)(CR)(IIR) (NBR)(FKM)(EPDM)(PTFE)
3	Body Carcass	Nylon cord fabric
4	Reinforcing Ring	Multi-strand coppering steel wire
5	Flange	Cast and forged carbon steel(Q235),Stainless steel(201,304,316,321), Plastic(CPVC,PVDF,PPH,UPVC,RPP)

Technical parameters

Item \|Medol	KYP(DN25~300)	KYP(DN350~500)	A. If media is oil, acid or alkali. B. If special requirements for working temperature C. If OEM orders with drawings or samples D. Please Inform us about above when ordering
MpaWoring pressure	1.0	0.6
Mpa Burst Pressure	1.8	1.5
Kpa Vacuum	86.7	53.3
Applicable Temperature	-20℃~+115℃(-30℃~+250℃ under special conditions)
Applicable Medium	Air, compressed air, water, sea water, oil, acid, alkali, etc.
Note: the materials of main parts are the same with those of KXT type

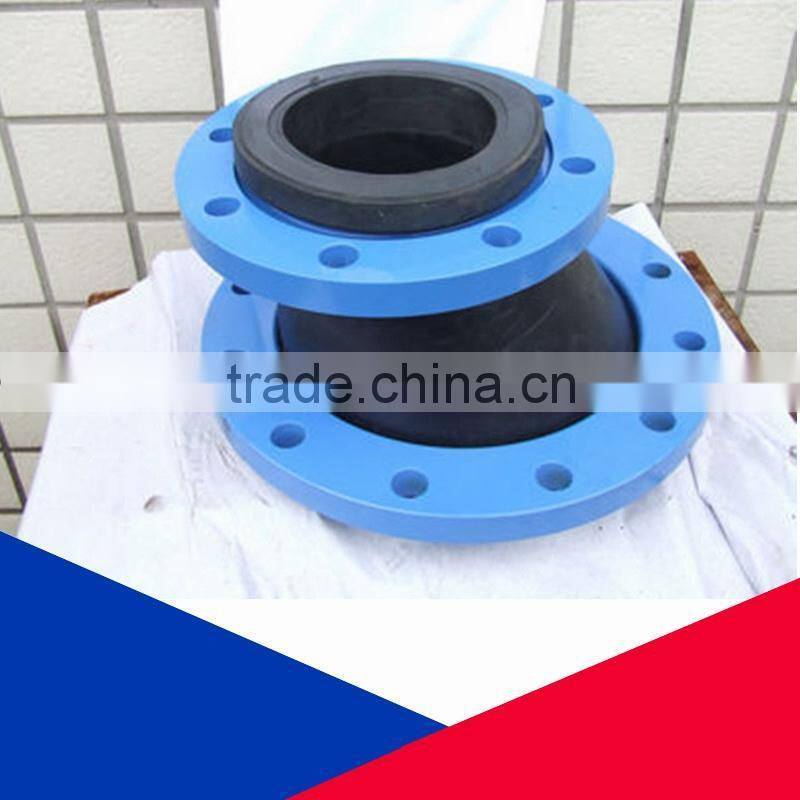

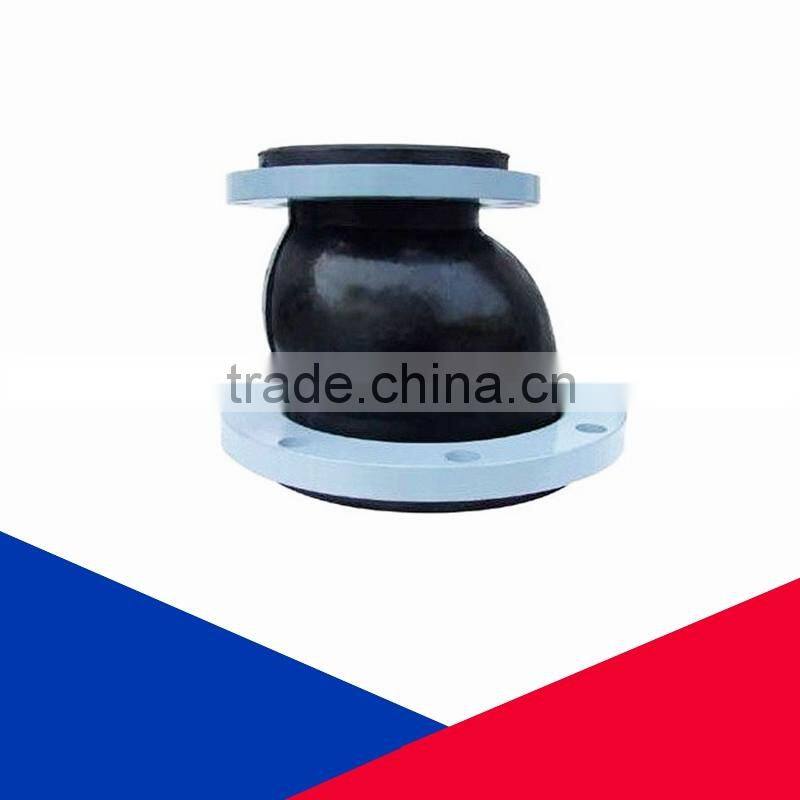

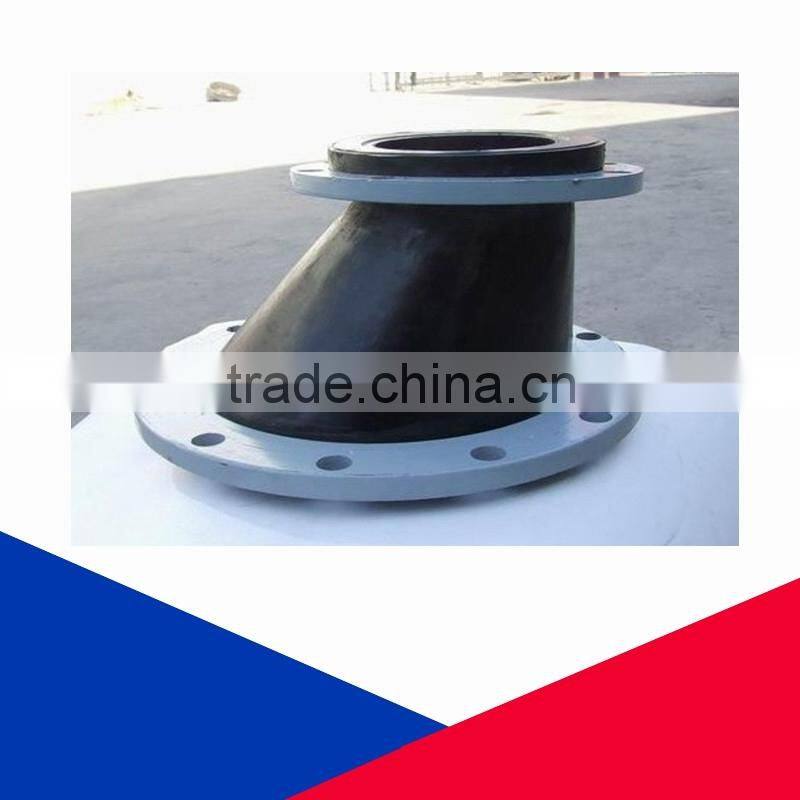

Detailed Images

Technical Parameters

Main date:

Nominal Diameter (mm)	LengthL(mm)	Axial displacement (mm)		Haorizontal isplacement(mm)	Angular deflection(a1+a2)°
Nominal Diameter (mm)	LengthL(mm)	Extension	Compression	Haorizontal isplacement(mm)	Angular deflection(a1+a2)°
40×25	115	7	12	10	10
40×32	125	7	12	10	10
50×40	180	7	12	10	10
65×40	180	7	12	10	10
65×50	180	7	12	10	10
80×50	180	7	12	10	10
80×65	180	7	12	10	10
100×50	180	7	12	10	10
100×65	180	7	12	10	10
100×80	180	8	14	12	10
125×65	200	8	14	12	10
125×80	200	8	14	12	10
125×100	200	10	20	12	10
150×50	200	10	20	12	10
150×65	200	10	20	12	10
150×80	200	10	20	12	10
150×100	200	10	20	12	10
150×125	200	12	20	14	10
200×80	200	12	20	14	10
200×100	200	12	20	14	10
200×125	200	12	20	14	10
200×150	200	12	20	14	10
250×125	220	12	20	14	10
250×150	220	12	20	14	10
250×200	220	12	20	20	10
300×125	220	14	22	20	10
300×150	220	14	22	20	10
300×200	220	14	22	20	10
300×250	220	14	22	20	10
350×150	240	14	22	20	10
350×200	240	14	22	20	10
350×250	240	14	22	20	10
350×300	240	14	22	20	10
400×200	240	14	22	20	10
400×250	240	14	22	20	10
400×300	240	14	22	20	10
400×350	240	14	22	20	10
450×300	240	14	22	20	10
450×350	240	14	22	20	10
450×400	240	14	22	20	10
500×350	240	14	22	20	10
500×400	240	14	22	20	10
500×450	240	14	22	20	10
Notes: 1. For OEM orders with special requirement, rubber joints can be made according to customers' drawings. Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request. Material of rubber body can be NR natural rubber, EPDM, Neoprene, IIR butyl rubber, NBR Buna-N, FKM, etc. 2.When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units shall be installed on rubber joints. 3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges.

Packaging & Delivery

MOQ	1PC, OEM orders acceptable.
Packing details	Plastic/carton box, then seaworthy plywood case, or as per request.
Shipping method	By express, by air or by sea
Shipping port	Shanghai, Qingdao, Tianjin or as per request.
Shipping time	7-15 days after receiving advance payment, or according to order quantity.

Installation instructions:
1, when installation to protect the ball at the ends of the rubber sealing surface, and the media do not meet the requirements of the product is strictly prohibited. Please refer to additional product installation manual carefully before install and use, to avoid some unnecessary loss.
2, eccentric reducer rated working pressure of the rubber joint working pressure than it actually is a gear, to ensure the safe operation of the pipeline can.
3, pipe must have a fixed support or fixed bracket, the force must be greater than the axial force of fixed bracket. When installed vertically and aerial product should be installed on both ends of the corresponding fixed bracket and mechanical support, in order to prevent pulled off after work under pressure.
4, rubber joint in the process of flange connection, according to diagonal uniform pressure way for installation, it can avoid uneven force, cause the late of pipeline leakage.
5, rubber joint during the installation process must avoid beyond their displacement to compensate the pipeline vibration and heat bilges cold shrink. By adding spacing device or increase the quantity of rubber joint, divide the work pressure is the right choice.
