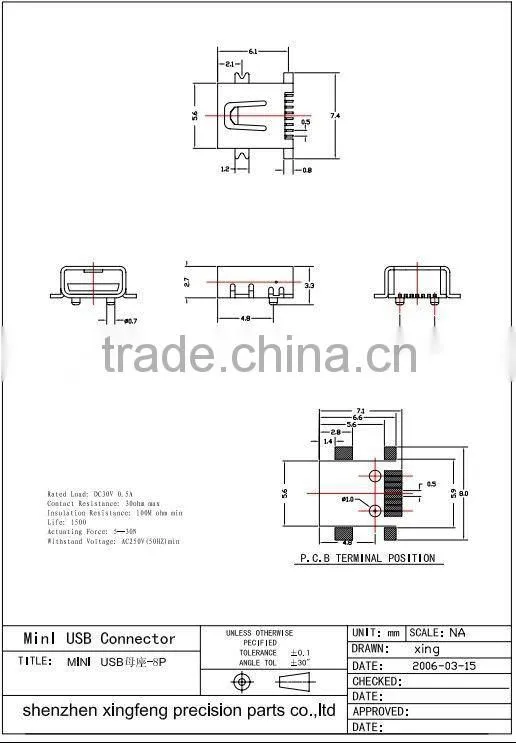

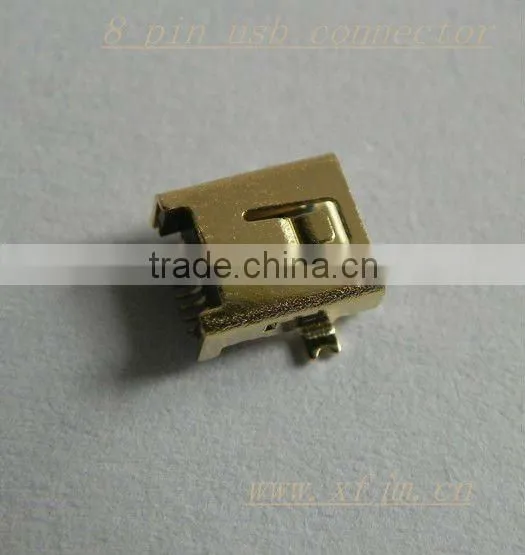

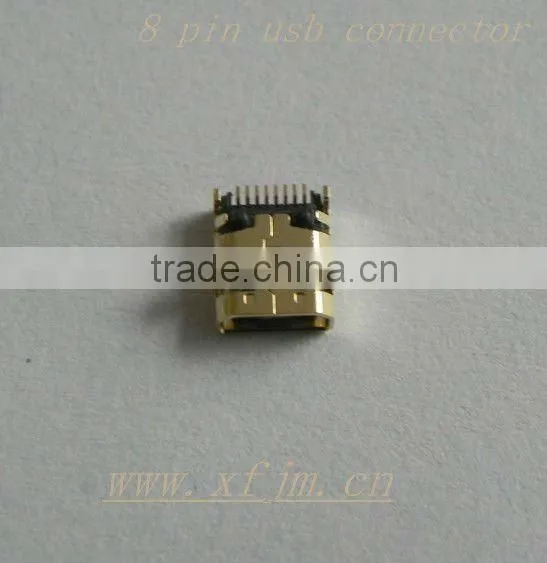

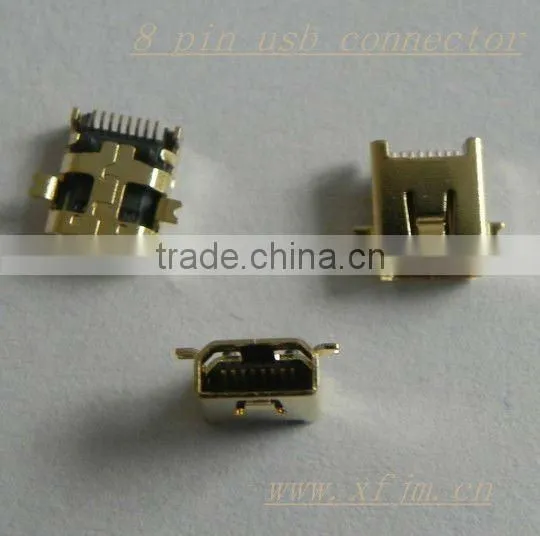

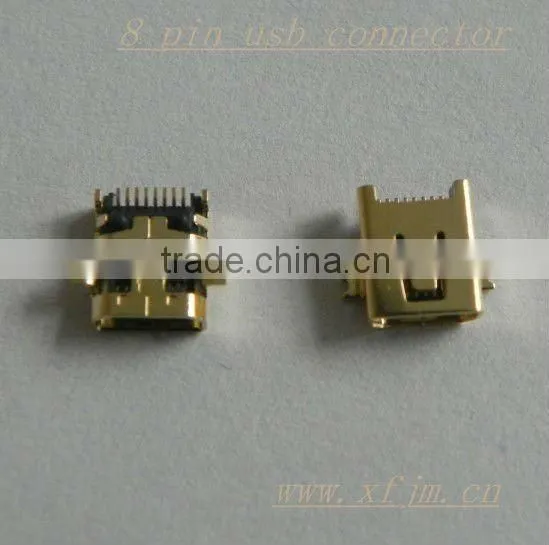

8 pin female mini usb connector ,gold-plated

Specification

Electrical Spec.

-Working Temperature :0°C ~+70°C

Rated Load: DC 30V 0.5A

Contact resistance: ≤50mΩ

Insulation resistance: ≥100MΩ

Withstand voltage: AC 250V (50Hz)/min

Insertion and extraction force: 5~30N

Electrical Life: 5,000 cycles Min

Mechanical Life: 10,000 cycles Min

Material

Application

Computer,MP3 player, MP4 player, digital video and camera, PDAs, GPS, flash drive and cable ASSY and PCB

Features:

1,A Type/B Type/Mini Type ect.kinds of connector design

2,Flexibility design for terminal interface to ensure nice contact and prolong the operating force

3,The place that the terminal contacting is gold-plated,it is to fast the data transmiting speed

4,The place that terminal soldering is stannum-plated,it is to make the soldering better
