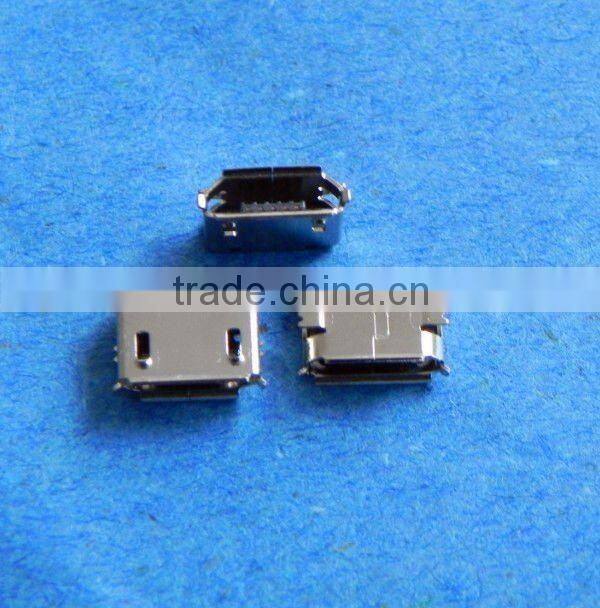

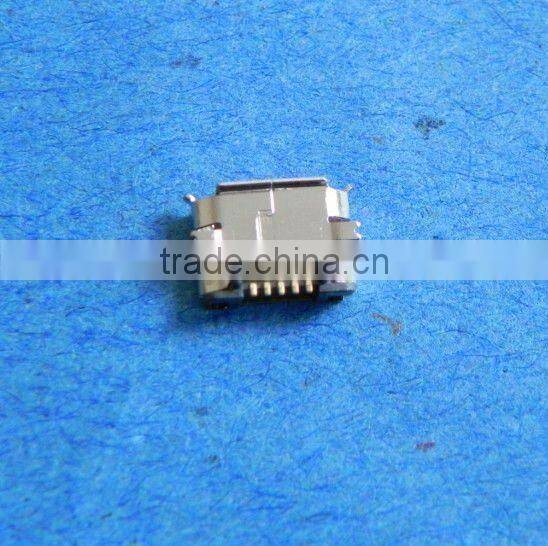

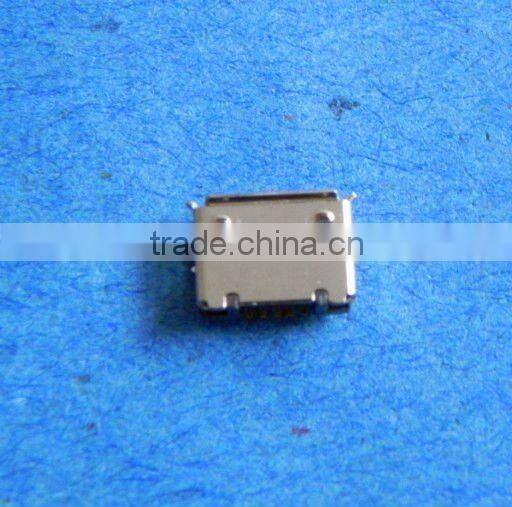

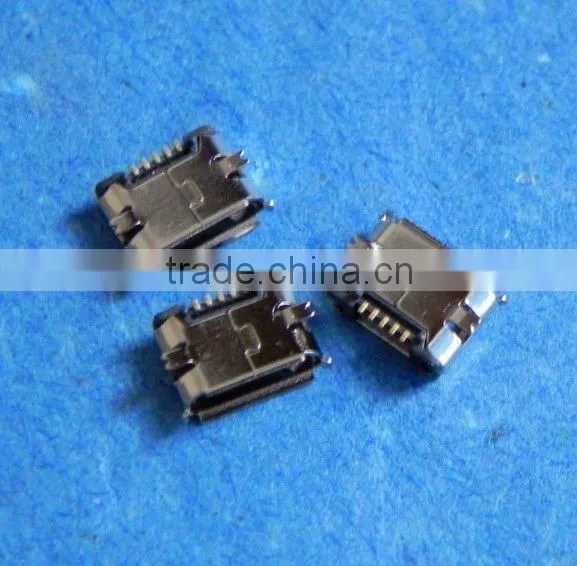

5 Pin Mini Female Usb Connector Tin-plated
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | XF | |
| Model Number | 5 pin usb connector |
Product Description
Specifications
5 pin usb connector:1. ISO 9001, ROHS compliant
2. Inventory Large
3. many sizes as per customer's request
4. Short deliver
5 pin usb connector:
Specification | ||||||||||||||
Electrical Spec. | -Working Temperature :0°C ~+70°C Rated Load: DC 48V 0.2A Contact resistance: ≤50mΩ Insulation resistance: ≥100MΩ Withstand voltage: AC 500V (50Hz)/min Insertion and extraction force: 5~30N Electrical Life: 5,000 cycles Min Mechanical Life: 10,000 cycles Min | |||||||||||||
Material |
| |||||||||||||
Application | Computer,MP3 player, MP4 player, digital video and camera, PDAs, GPS, flash drive and cable ASSY | |||||||||||||
|
| |||||||||||||
a) Visual inspection: socket surface is smooth,no damage,crack,pit,and corrosion on metal parts
b)
Features: |
1,A Type/B Type/Mini Type ect.kinds of connector design |
2,Flexibility design for terminal interface to ensure nice contact and prolong the operating force |
3,The place that the terminal contacting is gold-plated,it is to fast the data transmiting speed |
4,The place that terminal soldering is stannum-plated,it is to make the soldering better |
Services:
1.Size,color,materials and plating can be variable according to customer definition.
2..Consulting price on alitalk must reply ASAP in working days.
3.We can provide few as samples
Contact Us
- Shenzhen Xingfeng Precision Parts Co., Ltd.
- Contact namejenny zhang Chat Now
- Phone86-769-83902805
- AddressTianxiaxing Toyota 4S Shop opposite,Suken Village,Changlang Road,Changping Town, Shenzhen, Guangdong
