Negotiable
MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XF
Model Number:
micro 5pin usb
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
XF
Model Number
micro 5pin usb
Type
Other
Application
Other
Gender
Female
Specifications
micro usb1 ISO 9001, ROHS compliant
2 many sizes as per customer 's request
3 Manufacturers
4 short lead time

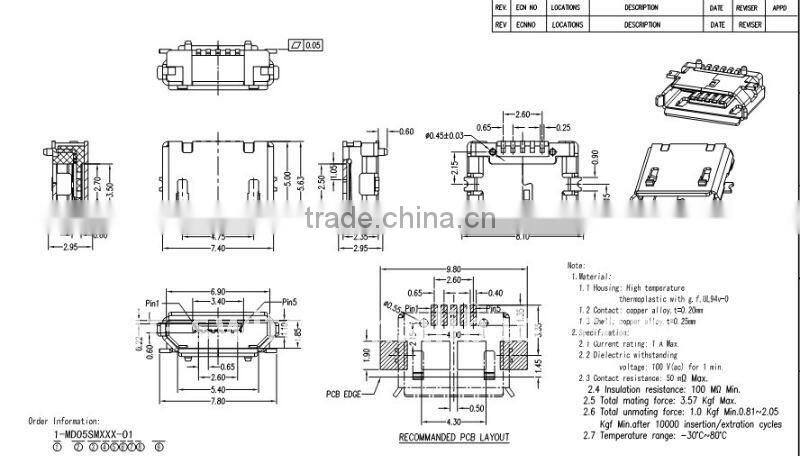

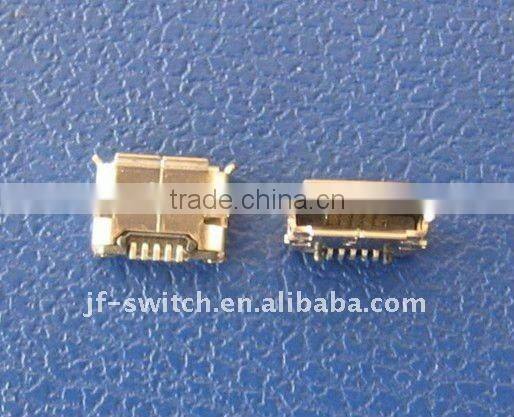

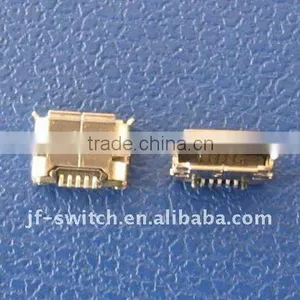

micro usb 5pin
Specification | |
Working Temperature | -40°C ~+70°C |
Rated Load | DC 48V 0.2A |
Contact resistance | ≤50mΩ |
Insulation resistance | ≥100MΩ |
Withstand voltage | AC 500V (50Hz)/min |
Insertion and extraction force | 5~30N |
Electrical Life | 5,000 cycles Min |
Mechanical Life | 10,000 cycles Min |
a) Visual inspection:Socket surface is smooth,no damage,crack,pit,and corrosion on metal parts
b)
Features | |
1,A Type/B Type/Mini Type ect.kinds of connector design | |
2,Flexibility design for terminal interface to ensure nice contact and prolong the operating force | |
3,The place that the terminal contacting is gold-plated,it is to fast the data transmiting speed | |
4,The place that terminal soldering is stannum-plated,it is to make the soldering better |
