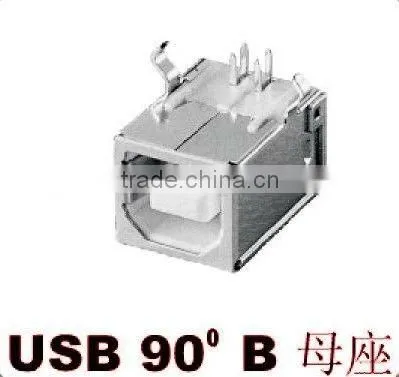

Help CenterUsb B Type Female Socket,dip,90 Degree,4 Pin
Related Products
-
Female Usb to Rca Cable USB 90 DegreeNegotiableMOQ: 2000 Pieces -
4 Pin Mini Usb Connector Nickel-platedNegotiableMOQ: 2000 Pieces
-
8 Pin Mini Usb Connector Brass-platedNegotiableMOQ: 2000 Pieces
-
5 Pin Mini Usb Connector Tin-platedNegotiableMOQ: 2000 Pieces
-
4pin Female Mini Usb Connector, Micro Female 4 Pin Connector SocketNegotiableMOQ: 2000 Pieces
Specifications
1. ISO9001 and ROHS certified2. Good feeling and long life
3. Customization available
4. Short lead time
usb female to 3.5mm male USB 90 degree B female
Quick Details
Place of Origin: Guangdong China (Mainland) |
Brand Name: XF |
Model Number: USB 90 degree B female |
Type: USB |
MOQ: 2000 |
Gender: Female |
Package &Delivery
Packaging Detail: |
paper carton |
Delivery Detail: |
7 days after payment |
Specification
Working Temperature |
-40°C ~+70°C |
Rated Load |
DC 48V 0.2A |
Contact resistance |
≤50mΩ |
Insulation resistance |
≥100MΩ |
Withstand voltage |
AC 500V (50Hz)/min |
Insertion and extraction force |
5~30N |
Electrical Life |
5,000 cycles Min |
Mechanical Life |
10,000 cycles Min |
Applications | |
Our products are suitable for varies types of mobile phone, computer, digital camera, data line, U disk and so on. | |
Applications:MP3 player, digital video and camera, PDAs, GPS, phone printer/frame, mouse, keyboard, flash drive and cable ASSY.
How to get price for this USB?
1. E-mail us with the type you are interested in.
2. We will reply to you with price in one working day.
Ordering Notes
1. You can order single items as samples
2.Shipping worldwide.
