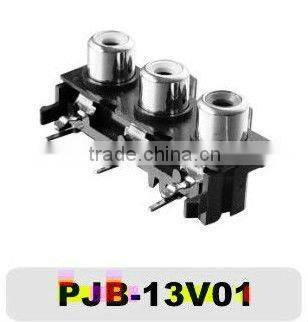

Rca Double Jack PJB-13V01
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | XF | |
| Model Number | PJB-13V01 | Type | RCA | |
| Application | Other, Audio & Video | Gender | Female |
Product Description
Specifications
1. ISO9001 and ROHS certified2. Good feeling and long life
3. Customization available
4. Short lead time
rca double jack PJB-13V01
Quick Details
Capacity: 15000 pieces per day MOQ: 2000 pieces
Brand Name: XF Certificates: ISO9001 and ROHS
Model Number: PJB-13V01 Mechanical Life: 10 years
Packaging & Delivery
Packaging Detail: 100pieces per transparent plastic bag, 10 bags in one paper carton
Delivery detail: 7days after the payment
Specification
Temperature Range | -40-70oC |
Rated Load | DC 50V 0.2A |
Contact Resistance | ≤30mΩ |
Insulating resistance | ≥100mΩ |
Endurance | AC 500V(50Hz)1min) |
Actuating force | 5-30N |
Life | 5000 times |
Feature:
1,RCA JACK, AV Connector or connectors
2,VED,UL and CE cers
3,Different pins RCA JACK
4,Different colour
5, Widely use DVD, TV, VCD and AUDIO & IDEO equipment
How to get price for this RCA jack?
1. E-mail us with the type you are interested in.
2. We will reply to you with price in one working day.
Ordering Notes
1. You can order single items as samples
2.Shipping worldwide.
