Home > Products > female RCA jack > Stereo Jack to 2 Female Rca Jack for Audio&video(pjb-12v01)

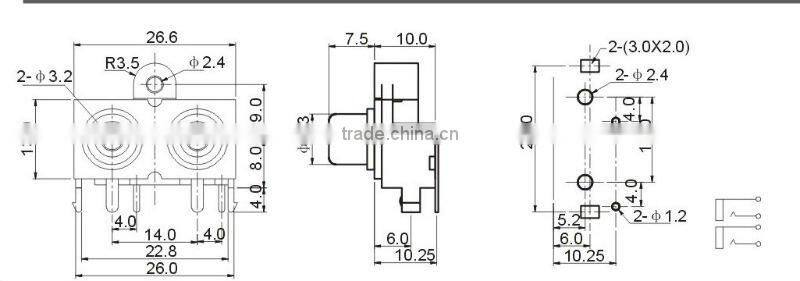

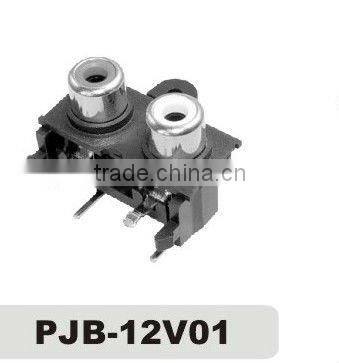

Stereo Jack to 2 Female Rca Jack for Audio&video(pjb-12v01)
- shenzhen
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | XF | |
| Model Number | PJB-12v01 | Type | Other, RCA, RCA | |
| Application | Other, Audio&Video | Gender | Other, female |
Product Description
Specifications
female rca JACK1 ISO 9001 ,SGS report,ROHS compliant
2 5 years Manufacturers
3 Quality is guaranteed and low price
RCA JACK:
RCA JACKS are mainly used in color TV ,DCD VCD ,STB and so on.
Specification  | |
Working Temperature  | -40°C ~+70°C  |
Rated Load  | DC 50V 0.5A  |
Contact resistance  | ≤0.2Ω  |
Insulation resistance  | ≥100MΩ  |
Withstand voltage  | AC 500V (50Hz)/min  |
Insertion and extraction force  | 5~30N  |
Electrical Life  | 5,000 cycles Min  |
Mechanical Life  | 10,000 cycles Min  |
Application of RCA Jack series:
Widely apply to:
1.Audio Products:MP3,MP4,DVD. Audio;
2.Digital Products: digital camera, digital video and so on;
3.Remote Control: the remote control of automobile domestic security products;
4.Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;
5.We have all kinds of phone jacks(2.5mm/3.5mm/6.35mm),Dc Power Jacks,RCA Jacks,Connectors,Switches(flip/micro/power/rocket/multi function),A&V Composite-Board,USB,PCB,HDMI,DR/DB Jacks,DIV,SATA etc.
Services:
1.Size,color,materials and plating can be variable according to customer definition.
2..Consulting price on alitalk must reply ASAP in working days.
3).we can provide the products few as samples with high quality,moderate price,and good customer services,any help,contact us please.
