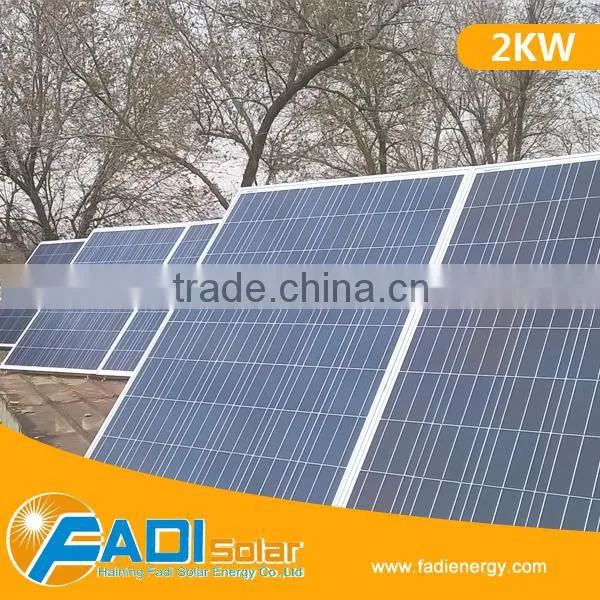

Help Center2KW Off Grid Solar Power System, Solar Kit System for Portable Generator System (FD-OFF/PSS-2KW)
Related Products
-
400W Off Grid Solar Generator Kit (FD-OFF/MSS-400W)NegotiableMOQ: 1 Set -
1500W Off Grid Solar Portable Power Sytem,Solar System (FD-OFF/MSS-1500W)US$ 2,030 - 2,100MOQ: 1 Set
-
1000W Off Grid Solar Portable Power Sytem,Solar System (FD-OFF/MSS-1000W)NegotiableMOQ: 1 Set
-
9KW Off Grid Tie Solar Panel System, Solar Kit System (FD-OFF/PSS-9KW)US$ 13,000 - 23,000MOQ: 1 Set
-
A Grade Quality Poly Home Solar Systems (FD-60-P260)US$ 118 - 124.8MOQ: 10 Pieces
Off Grid Solar Power System for household
Model: FD-OFF/PSS-2KW
Off grid solar power system :
1. This is an off-grid energy system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power.
2. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply.
3. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply
Off Grid Solar power system feature:

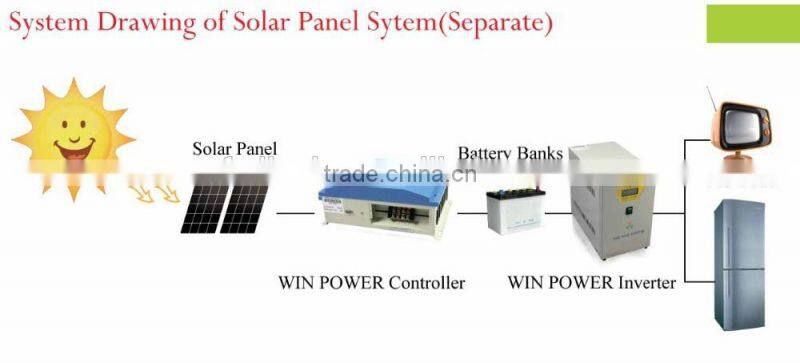

1.Off-Grid Solar Enery System is composed of solar panels, controller, inverter, battery bank, solar panel mounting racks, and other accessories required for a complete system.
2.The solar panels generate electricity at daytime and charge the battery bank through the controller.
3.The battery bank gives a stable power output to the inverter which converts DC to AC to power loads, and provides power backup in rainy or cloudy days.
4.The controller gives an intelligent control of whole system process and provides various protections.
Solar generator system applications:
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
Off Grid solar power system details:
| Item No | FD-OFF/PSS-2KW |
| System Basic Information | |
| Solar Panel Rated Output Power: | 2KW |
| Suitable for Max Daily Power Consumption: | 8KWH |
| Rated Output AC Capacity: | 2.5KW |
| Solar Panel | |
| Type | Poly Crystalline Silicon PV Module |
| Max Power: | 200W*10pcs |
| Vmp: | 17.5V |
| Size: | 1320×992×40mm |
| Weight: | 15kg/pcs |
| 25 years power output guarantee | |
| (Note: 5pcs panels in series as a string, 2 strings in parallel) | |
| Inverter (UPS type) | |
| Input voltage | 2KW,DC48V |
| Output voltage | AC220V 2-phase |
| Type | Off grid type, automatic power tracking, |
| efficiency | 97% |
| Warranty | 5years |
| Solar Controller | |
| Solar power support | 2.0KW |
| Voltage | 48V |
| Current | 50A |
| Type | MPPT charging controller, LCD display |
| Warranty | 5years |
| Battery | |
| Battery capacity | 8pcs*12V/200AH per piece Gel Deep Recycle Battery |
| Solar panel rack | |
| Ground or flat type mounting rack, including complete fittings; galvanized steel material | |
| (Other types of racks can be customized as per client's requirement) | |
| Cables | 10mm2 size cable |
| Certifications | CE RoHS |

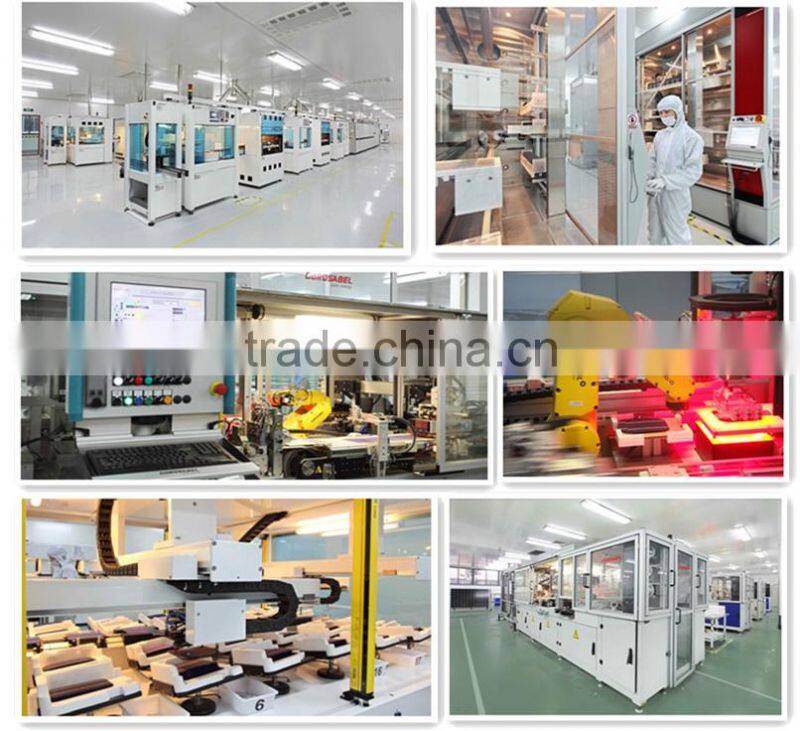

Our solar generator system production line:
