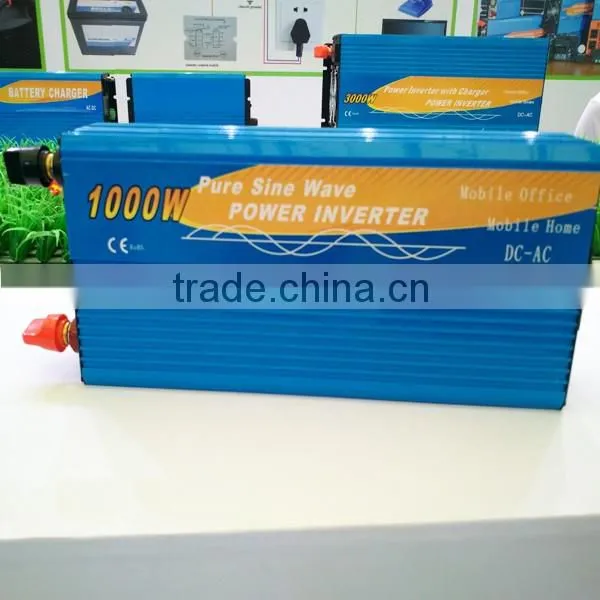

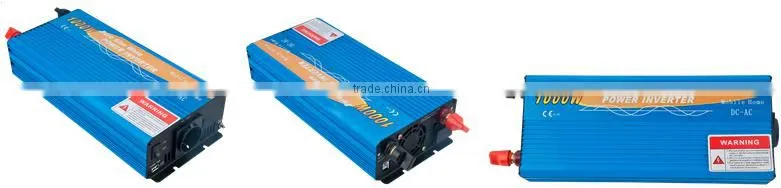

Pure sine wave inverter
Model: FD-IV-1000P
Pure sine wave inverter function:
1. Overload shutdown
2. Over temperature shutdown
3. Low voltage alarm
4. Low voltage shutdown
5. High battery voltage shutdown
6. Short circuit protection
7. Polarity reverse connection protection
Pure sine wave inverter features:
1. Automatic protection against overload
2. Over temperature and low/high battery conditions
Pure sine wave inverter application:
1. Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans
2. Power Tools: drills, jigsaws, sanders and buffers
3. Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment
LED display shows output power and watt consumption
Pure sine wave inverter specification
Model no |
FD-IV-1000P |
Output Waveform |
Pure Sine Wave |
Continuous Power |
1000W |
Maximum Constant Power Start |
1200W continue 10s (Buzzer alarm sharply) |
Peak Power |
2000W |
Input Voltage |
12V/24V/48V |
Output Voltage |
100V/110V/115V/120V/220V/230V/240V |
Frequency |
50Hz/60Hz |
No Load Current Draws |
<0.9A |
Dimensions |
310*150*70mm |
Weight |
2.8±0.2KGS |
|
Protection Function |
Low voltage alarm(Buzzer alarm is sounded 2 times), Low voltage shut down(Buzzer alarm is sounded 3 times), Over input voltage(Buzzer alarm is sounded 4 times) Over temperature(Buzzer alarm is sounded 5 times) Over load(Buzzer alarm sharply) Short circuit protection, Reverse Polarity (Fuse) |
LED Indicator Light |
Inverter, Fault, Power(5 levels:20%,40%.60%,80%,100%) mode |
|
Distinct Characteristics |
Remote Control: Control your Inverter at a distance with Remote Control Switch. Fuse was built-out: To change the blown fuse easily. |
Application |
Automobiles, RVs, Boats, tractors, trucks, Laptops, TV sets, Video Games, CD Players, DVD Players, Power tool, Office Equipment, Major Household Appliances, etc. |
|
Environment |
Operating temperature: -10°C~+50°C Operating relative humidity: 20%~90%RH non-condensing Storage temperature: -30°C~+70°C Cooling Fan automatically run: inner temperature rising up is ≥45°C |
Remarks: With Charger/USB are available. | |

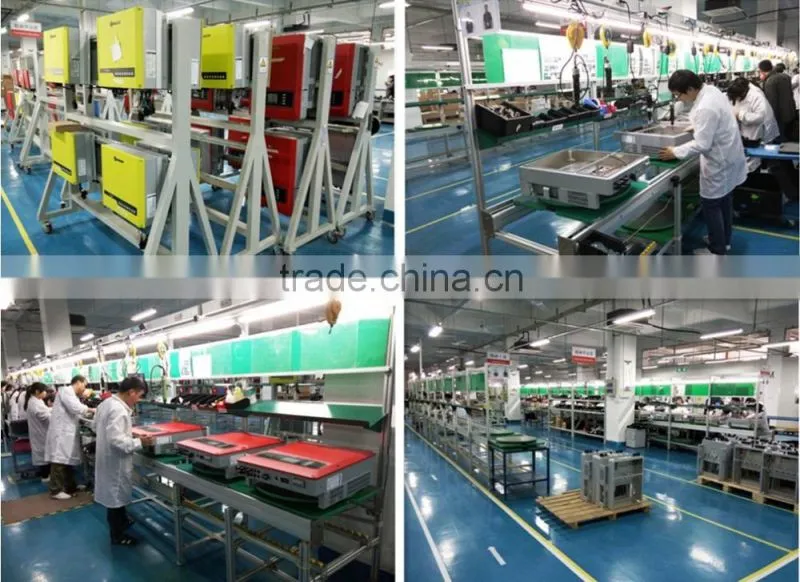

1000W Pure sine wave inverter workshop:
