Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > 1500W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-1500P)

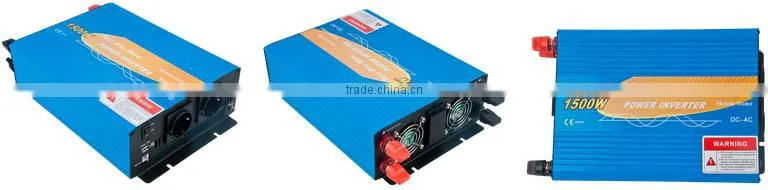

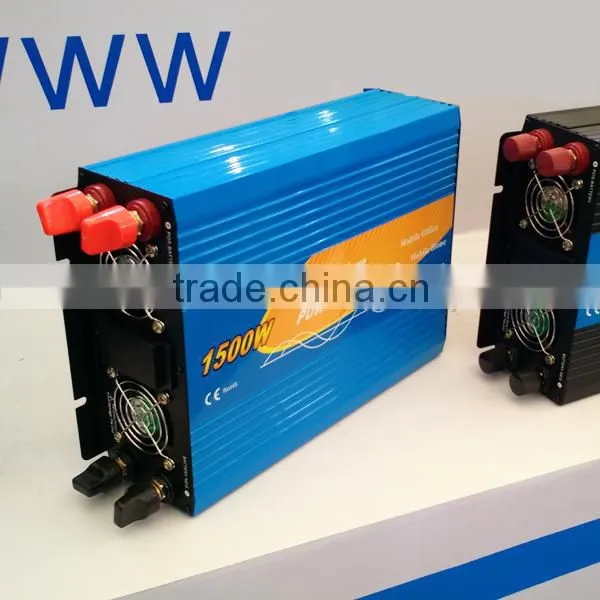

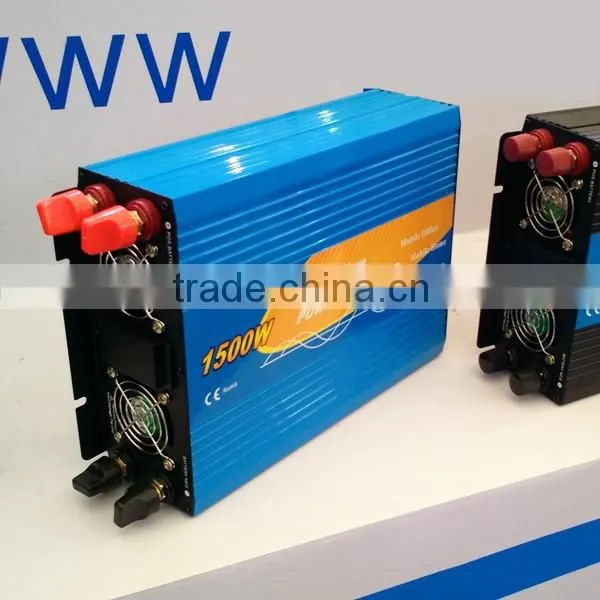

1500W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-1500P)

Name: 1500W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-1500P)
Brand: Pure Sine Wave Inverter ,OEM,FADI
SKU: 134509749

1500W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-1500P) thumbnail-1

1500W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-1500P) photo-1

US$ 116 - 120 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Pure Sine Wave Inverter ,OEM,FADI

Model Number:

FD-IV-1500P

Contact Supplier Request Quote Chat Now

Haining Fadi Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai /Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Pure Sine Wave Inverter ,OEM,FADI

Model Number FD-IV-1500P

Specification Normal

Application Commercial

Output Voltage (V) AC 220V

Load Power (W) Depend

Solar Power (W) 1500W

Work Time (h) 24 Hours

Pure sine wave inverter

Model: FD-1500P

Pure sine wave inverter function:

1. Overload shutdown

2. Over temperature shutdown

3. Low voltage alarm

4. Low voltage shutdown

5. High battery voltage shutdown

6. Short circuit protection

7. Polarity reverse connection protection

Pure sine wave inverter features:
1. Automatic protection against overload
2. Over temperature and low/high battery conditions

Pure sine wave inverter application:

1. Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans

2. Power Tools: drills, jigsaws, sanders and buffers

3. Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment

LED display shows output power and watt consumption

Pure sine wave inverter specification

Model No			FD-1500P-112	FD-1500P-124	FD-1500P-148	FD-1500P-212	FD-1500P-224	FD-1500P-248
Output	Rated Power		1500W
	Surge Power		2250W for 10 sec,3000W for 2sec.
	AC Voltage		100 / 110 / 115 / 120VAC			200 / 220 / 230 / 240VAC
	Frequency		60Hz±1%			50Hz±1%
	Waveform		Pure sine wave (THD<4%) at rated input voltage
	AC Regulation		±10%
	Front Panel Indicator		Fault and operation status
Input	BAT. Voltage		12V	24V	48V	12V	24V	48V
	Voltage Range		10.8~15.5V DC	21.6~ 31VDC	43.2~ 62VDC	10.8.~15.5 VDC	21.6~ 31VDC	43.2~ 62VDC
	No Load Current		≤0.75A	≤0.4A	≤0.2A	≤0.75A	≤0.4A	≤0.2A
	Efficiency		88%	89%	90%	89%	90%	91%
	Battery Type		Open & sealed Lead Acid
Battery Input Protection	Fuse		35A*6	20A*6	10A*6	35A*6	20A*6	10A*6
	BAT. Low Alarm		10.8±0.2V	21.6±0.4V	43.2±0.8V	10.8±0.2V	21.6±0.4V	43.2±0.8V
	BAT. Low Shutdown		10.2±0.2V	20.4±0.4V	40.8±0.8V	10.2±0.2V	20.4±0.4V	40.8±0.8V
	BAT. Over Shutdown		15.5±0.2V	31±0.4V	62±0.8V	15.5±0.2V	31±0.4V	62±0.8V
	BAT. Polarity		By external fuse open
Output protection	Over TEMP		≥45ºC or ≥40% rated power, cooling fan open;≥75ºC,Shut off.
	Output Short		Protection type : Shut down o/p voltage, re-power on to recover
	Overload		150% load for 10 sec,200% for 2sec.
			Protection type : Shut down o/p voltage, re-power on to recover
Environment	Working TEMP.		0 ~ +40°C @ 100% load ; 60°C@ 50% load
	Working Humidity		20% ~ 90% RH non-condensing
	Storage TEMP.		-30°C~ +70°C/ -22 ~ +158 °F, 10 ~ 95% RH
USB port	5V,500mA---Powers and charges USB-enabled devices
Remote Control	Control your Inverter at a distance with Remote Control switch
GND	Ground Chassis: Properly grounds the Inverter to vehicle grounding system or to earth ground.
Mechanical	Dimension		29022090mm (LWH)
	Packing	PCS/CTN	2PCS/CTN
		Measurement	433136cm
		Gross weight	11KGS
	Cooling: Load and TEMP controlled		Load<40% or inner temperature less than 30°C,fan don’t run 40%≤Load<60%,the fan’s rotational speed is 40%
			60%≤Load<80%,the fan’s rotational speed is 60%
			80%≤Load<100%,the fan’s rotational speed is 80%
			100%≤Load, the fan’s rotational speed is 100%
			Once Inner temperature is more than 45°C, the fan’s rotational speed is 100%.
Buzzer/LED	Low Battery Alarm		Buzzer sound 2times and Red light blink 2times every 8sec.
	Low Battery Shutdown		Buzzer sound 3times and Red light blink 3times every 8sec.
	Over Voltage Shutdown		Buzzer sound 4times and Red light blink 4times every 8sec.
	Over TEMP Shutdown		Buzzer sound 5times and Red light blink 5times every 8sec.
	Short Circuit/Overload Shutdown		Red light blink constantly
Accessories	2x Positive & 2x Negative Terminal to Terminal Connection Cable
	1x Instruction/Specification Booklet
	6x Replaceable fuse
Applications	Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
