Self Drilling Rock Anchor R38L

Name: Self Drilling Rock Anchor R38L
Brand: SOLLROC
Availability: InStock

FOB Price

US$ 10 - 30 / Piece

1 Piece(Min. Order)

Port Shanghai Shenzhen any ports in China
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SOLLROC
Model Number	R32S	Type	Drill Bit
Machine Type	Drilling Tool	Certification	Other, SGS
Material	Other, Steel	Processing Type	Forging
Use	Other, Tunneling, supporting

Product Description

Product Application

SOLLROC self-drilling anchor bolts have a wide range of application fields including:

- Reinforcement of poor rock/soil conditions in tunnels,

- Stabilization of tunnel faces

- Tunnel root piling and

- Tunnel entrances.

Self drilling anchor bolt is extensive applied in all kinds of constructions, such as railway system, metro project and infrastructure development. As an efficient anchoring method, it’s also widely applied to pre-support project, radial support project, slope stabilization, foundation support project, soil nail wall, back pull anchor rod retaining wall and other rock supporting work.

Future

1-. Self drilling system eliminates the requirement for a cased borehole.

2-. Installation with simultaneous drilling and grouting possible.

3-. Easy installation in all directions, also upwards.

4-. Reliable, efficient and convenient, this makes high piling output possible.

5-. Anchor bars can be cut and lengthened according to your demands. It applies to narrow space.

Product Description

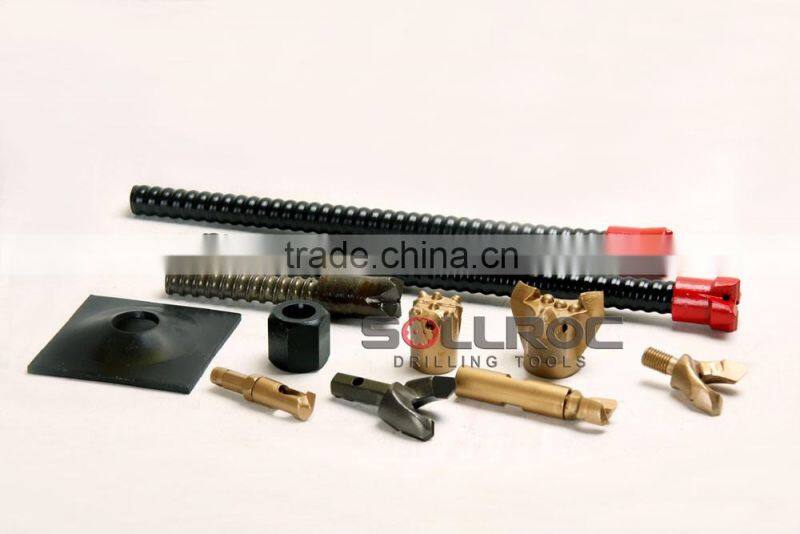

R32S Self drilling grouting bolts

1-. Drill bit	It has strong ability of penetrating, so the anchor can pass through various rock with it.
2-. Anchor body	It has the international standard wave-shape connecting thread and is very easy to be installed with bit, coupling and fasten nut. It can also be cut or connected very freely.
3-. Grouting stopper	To keep grouting at certain pressure to fully frill the clearance of surrounding rock.
4-. Anchoring plate	To bear higher stress of surrounding rock.
5-. nut	To transmit the stress of surrounding rock to the plate.
6-. Coupling	It can realize the purpose of elongating to the designed depth while drilling.

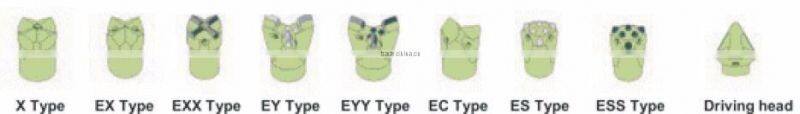

Item	Specifications
R32S bolt	Dia OD/ID：38/14 Cross dimension：610mm2 Max tensile load(KW)：400kN Yield load(KN)：300kN
Cross bit all steel（EX）	R38/D76/L80 EX
Cross bit all steel（EX）	R38/D90/L80 EX
Cross bit with carbide（EXX）	R38/D76/L85 EXX
Cross bit with carbide（EXX）	R38/D90/L90 EXX
button bit（ESS）	R38/D76/L82 ESS
button bit（ESS）	R38/D90/L100 ESS
Clay bit (EW)	R38/D115/L110 ESS
bit adaptor	R38/R51*L50
Coupling	R38/Φ51*L180
Nut	R38/SW50*L60
Plate R32S	20020012*Φ41

Detailed Images

Nuts

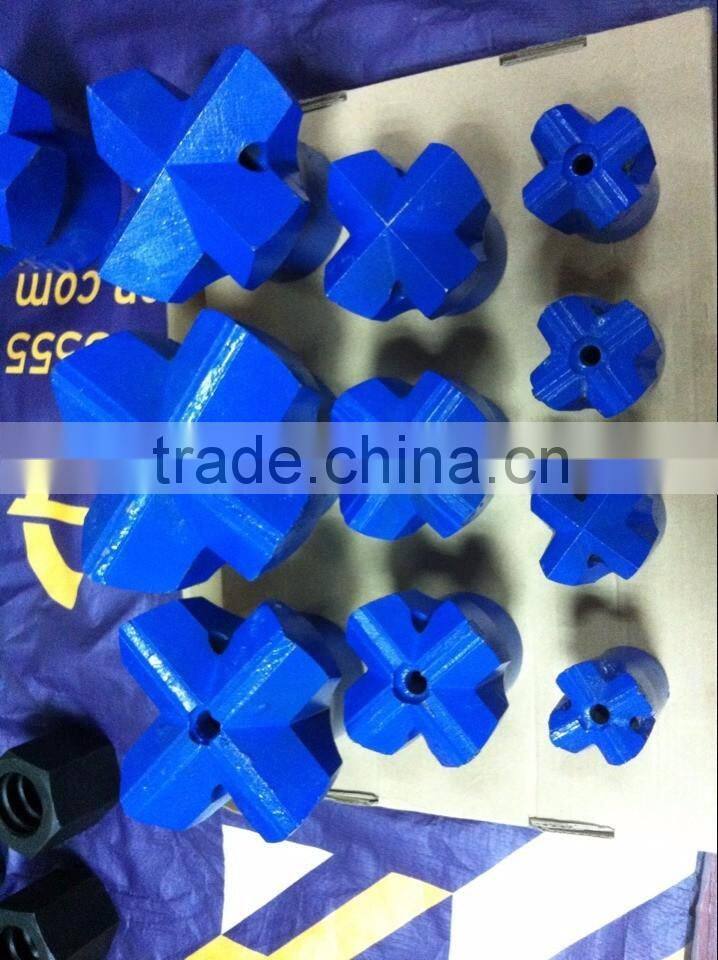

Cross bits

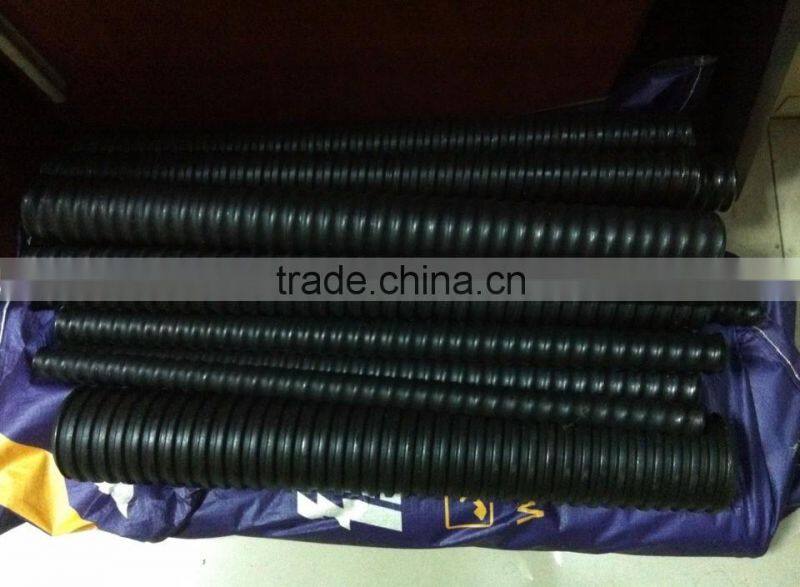

bolts

Packing & Delivery

Ply-wooden cases

Ply-wooden cases + pallet

Delivery: By sea, By air or by Express
