Self Drilling Grouting Anchor Bolt R32L

Self Drilling Grouting Anchor Bolt R32L thumbnail-1
Self Drilling Grouting Anchor Bolt R32L thumbnail-2
Self Drilling Grouting Anchor Bolt R32L thumbnail-3
Self Drilling Grouting Anchor Bolt R32L thumbnail-4
Self Drilling Grouting Anchor Bolt R32L thumbnail-5
Self Drilling Grouting Anchor Bolt R32L thumbnail-6
Self Drilling Grouting Anchor Bolt R32L photo-1
Self Drilling Grouting Anchor Bolt R32L photo-2
Self Drilling Grouting Anchor Bolt R32L photo-3
Self Drilling Grouting Anchor Bolt R32L photo-4
Self Drilling Grouting Anchor Bolt R32L photo-5
Self Drilling Grouting Anchor Bolt R32L photo-6
US$ 10 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
SOLLROC
Model Number:
R32
Contact Supplier Request Quote Chat Now
Changsha Sollroc Engineering Equipments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen any ports in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name SOLLROC
Model Number R32
Type Drill Bit
Machine Type Drilling Tool
Certification Other, SGS
Material Other, Steel
Processing Type Forging
Use Other, Tunneling, supporting
Product Application

SOLLROC self-drilling anchor bolts have a wide range of application fields including:

- Reinforcement of poor rock/soil conditions in tunnels,

- Stabilization of tunnel faces

- Tunnel root piling and

- Tunnel entrances.

Self drilling anchor bolt is extensive applied in all kinds of constructions, such as railway system, metro project and infrastructure development. As an efficient anchoring method, it’s also widely applied to pre-support project, radial support project, slope stabilization, foundation support project, soil nail wall, back pull anchor rod retaining wall and other rock supporting work.

Future

1-. Self drilling system eliminates the requirement for a cased borehole.

2-. Installation with simultaneous drilling and grouting possible.

3-. Easy installation in all directions, also upwards.

4-. Reliable, efficient and convenient, this makes high piling output possible.

5-. Anchor bars can be cut and lengthened according to your demands. It applies to narrow space.

Product Description

R32L Self drilling grouting bolts

1-. Anchor bolt
It has the international standard wave-shape connecting a thread and is very easy to be installed with bit, coupling and fasten a nut. It can also be cut or connected very freely.
2-. Plate:
To bear higher stress of surrounding rock.
3-. Nut
 To transmit the stress of surrounding rock to a plate.
4-. Coupling
It can realize the purpose of elongating to the designed depth while drilling.
5-. Bit
It has strong ability of penetrating, so the anchor can pass through various rocks with it.
Item
Specifications
R32L bolt
Dia OD/ID：32/22
Cross dimension：356mm2
Max tensile load(KW)：230kN
Yield load(KN)：180kN
Cross bit all steel（EX）
R32/D51/L56 EX
R32/D76/L80 EX
Cross bit with carbide（EXX）
R32/D51/L56 EXX
R32/D76/L85 EXX
button bit（ESS）
R32/D51/L60 ESS
R32/D76/L82 ESS
Clay bit (EW)
R32/D76/H71 EW
bit adaptor
R32/R38*L50

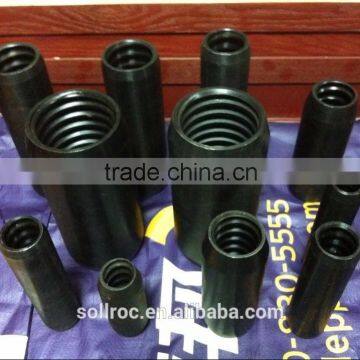

Coupling
R32/Φ42*L160
Nut
R32/SW46*L45

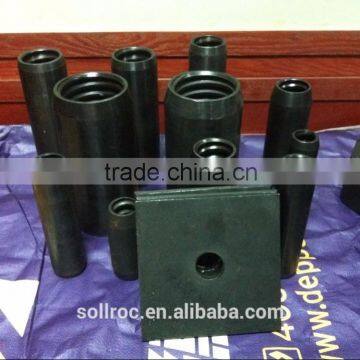

Plate R32L
150*150*8*Φ35
Detailed Images

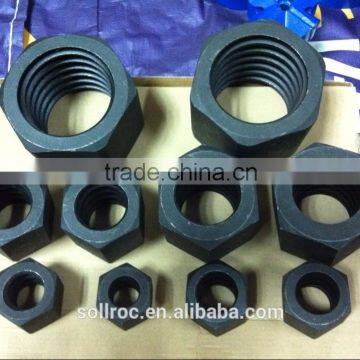

                      Nuts

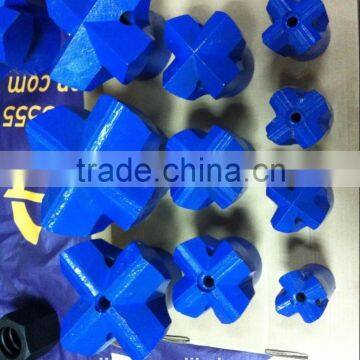

                   Cross bits

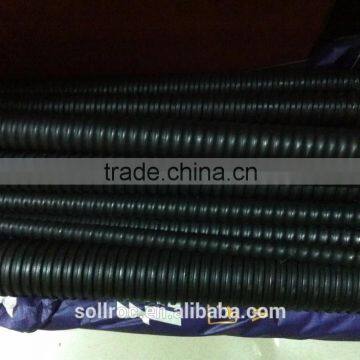

                    bolts

Packing & Delivery

Ply-wooden cases


Ply-wooden cases + pallet




Delivery: By sea, By air or by Express
