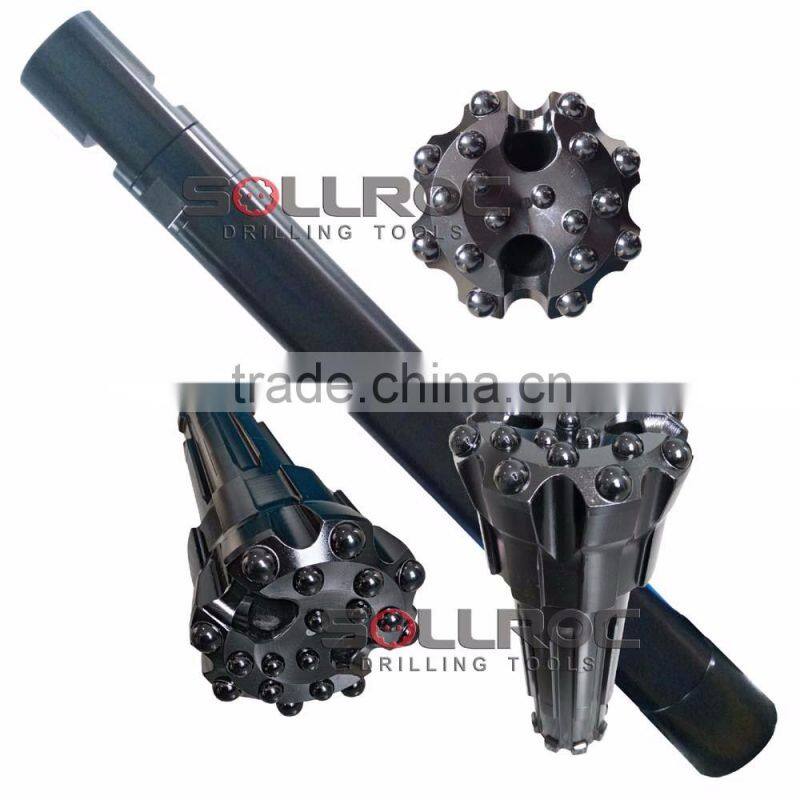

RE052 PR52 RC Hammers and RC Bits

FOB Price

US$ 800 - 3,000 / Piece

1 Piece(Min. Order)

Port Shanghai Shenzhen any ports
Payment TermsT/T L/C D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SOLLROC
Model Number	PR54	Type	Other, Hammer
Machine Type	Drilling Tool	Certification	API
Material	Other, carburized steel	Processing Type	Other, Heat treatment + Machining Process
Use	Well Drilling

Product Description

Application

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, complicated gravel stratum, etc

Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

Futures

- Manufactured using premium hardened metals for long life;
- Maximum material recovery, up to 98%;
- No cross contamination of samples;
- Handles injection of water, foam, oil, and polymers without performance loss;
- Delivers maximum drilling under water.

Product Description

5.5" RC hammer PR54 Technical data:

Length (without bit)	1294mm
Weight (without bit)	84.5kg
Out dia. of hammer	130mm
Bit shank	PR54
Hole range	135mm-150mm
Connection thread	4.5" Remet / 4.5" Metzke
Working pressure	15-35 bar
Air consumption	1.7 Mpa	16 m³/min
	2.4 Mpa	22 m3/min
	3.0 Mpa	28 m3/min

Detailed Images

Head of hammer

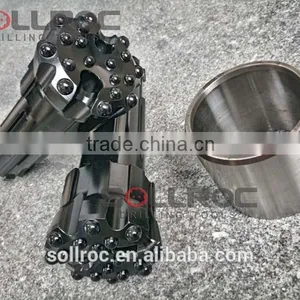

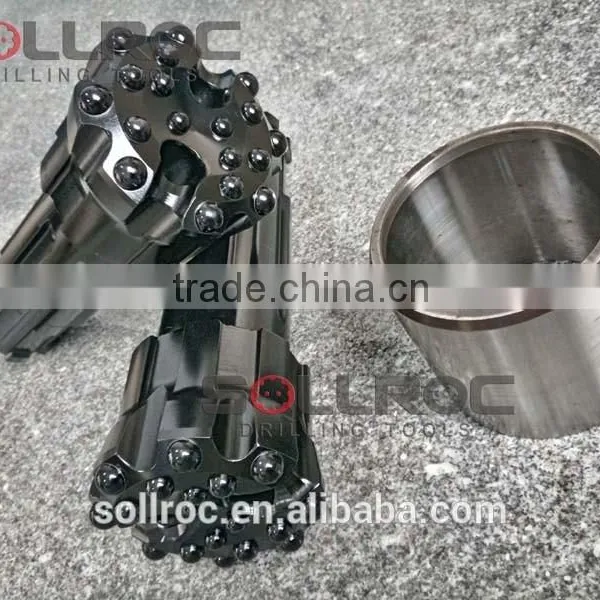

Spares for RC hammers

Retention system

Packing & Delivery

Ply-wooden cases

Ply-wooden cases + pallet

Related RC hammers

- 3" RC hammers model RE531

- 4" RC hammers model RE004

- 4.5" RC hammers model RE542

- 4.5" RC hammers model RE543

- 5" RC hammers model PR40

- 5" RC hammers model RE545

- 5.5" RC hammers model PR52

- 5.5" RC hammers model PR54

- 5.5" RC hammers model RE547

- 6" RC hammers model RC6A
