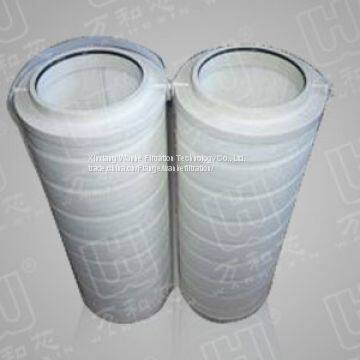

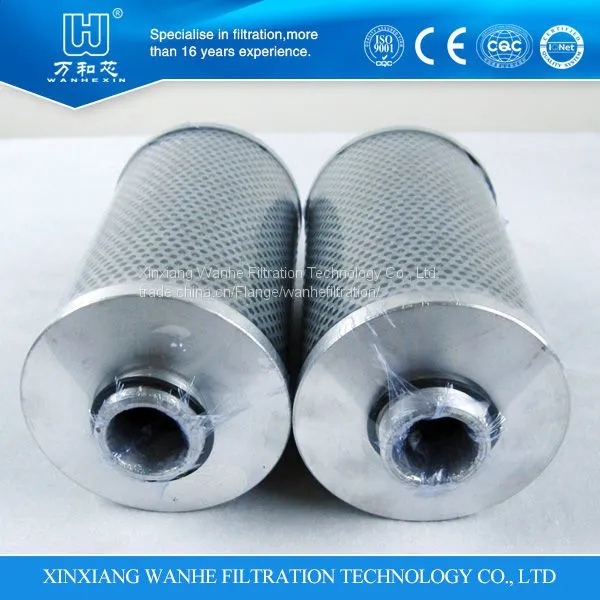

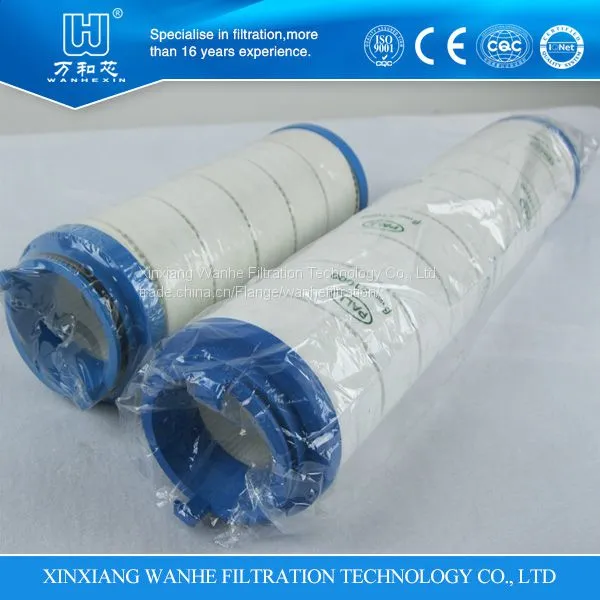

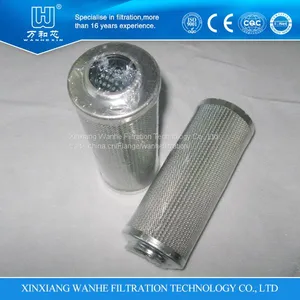

Hot Sales PALL Oil Filter Element Used for Hydraulic System

Pall hydraulic oil filter:

1. The quality and performance can be guaranteed as original elements.

2. Temperature Range -4°F~212°F

3. Seals: nitrile seals, fluorocarbon seals for corrosive fluids.

4. Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)

5. Filtering precision 3, 5, 10, 20 and 100 micron.

6. Filter Medium: glass fiber, filter paper , stainless steel sintered fiber and stainless wire mesh.

7. Fluid Compatibility Compatible with all petroleum oils, water glycols, oil/water emulsions,

Main performance parameters:

1.Working medium: General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol.

2.Material: Glass fiber filter paper-BN / Stainless steel web-w/Wood pulp filter paper- P/Stainless steel sintering nets-V

3. Filter accuracy: from 1, 3, 6, 12, 25 …um

4. Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

5. Working temperature: -30 °C ~+110 °C

6. O-Ring: NBR, fluororubber

7.Service life is approximately: 8-12 months
