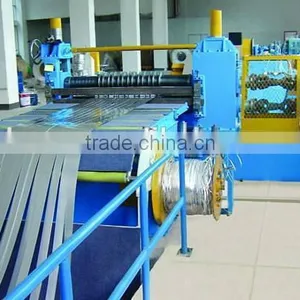

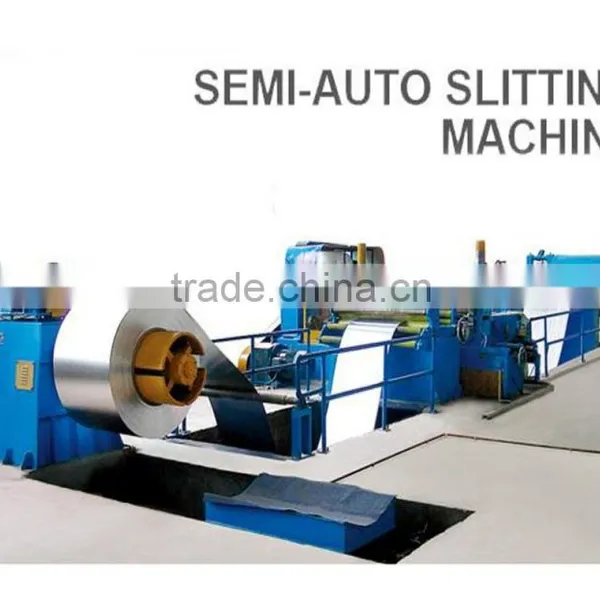

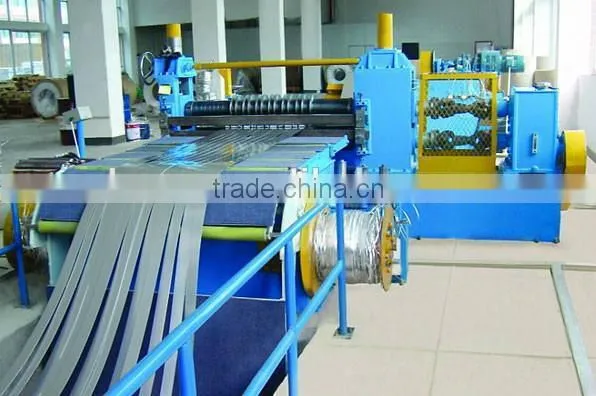

Help CenterSemi-auto 650mm- Precision Slitting Machine
Related Products
-
1500mm Middle and Thick Plate Cuting MachineUS$ 12,870 - 20,870MOQ: 1 Set -
Carbon Steel and Stainless Steel Pipe Welding MachineUS$ 125,000 - 155,000MOQ: 1 Set
-
GH60 High Frequency Steel Welding MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Big Size Diameter Pipe Welding MachineUS$ 129,000 - 200,000MOQ: 1 Set
-
AISI 443 Stainless Steel Sheet.US$ 2,050 - 4,870MOQ: 10 Tons
Machine Description
Thin Sheet Slitting Series
Model Number: SD-JF 650
Max slitting thickness/width: 0.25-2.0x650mm
Slitting Strip Material: carbon steel, galvanized plate and stainless steel.
Techincal parameters
| Model | Sheet Thickness (mm) | Roll Width (mm) | Roll (ton) | Speed (M/min) | Article number Slitting | Capacity(kw) | Area(estimate M) |
| SD-JF650 | 0.25-2.0 | 150-620 | 6 | 0-120 | 3-15 | 80 | 15x4 |
| SD-JF850 | 0.3-2.0 | 150-820 | 8 | 0-120 | 3-15 | 90 | 15x4 |
| SD-JF1000 | 0.3-2.0 | 300-960 | 10 | 0-150 | 3-20 | 110 | 15x5 |
| SD-1300 | 0.4-3.0 | 400-1250 | 15 | 0-150 | 3-20 | 130 | 22x7 |
| SD-JF1600 | 0.3-3.0 | 600-1550 | 15 | 0-150 | 3-20 | 150 | 22x8 |
1.Internal diameter tape:Φ480 Φ508 Φ610mm
2.The maximum outer diameter tape:Φ800~Φ2000mm
3.The maximum weight coil:12000kg
4.Shear rate: 0 ~ 120m/min adjustable
5.Width deviation:±0.03mm
6.Bending sickle deviation:±0.10mm/m
Equipment component
Coil car---Double-awal feeding body---hydraulic primer head body,shovel head,two rollers feeding---Shear head---Corrective institutions--- Slitting machine---Waste silk rolling---Looper---predictly separate material---damping institution---uncoil device---coil down car
Hydraulic control;Electric control
Technical Documents
Provide instruction and operation manual, foundation drawing, layout drawing, vulnerable part drawings, hydraulic system schematic drawing, electric circuit drawing before or when machine is delivered.
Inspection & Warranty
According to relative standards, customer inspects machine quality.
Warranty for one year after commissioning except for mistake made by buyer wrong operation
Usually we send two engineers to direct installation and commissioning of the slitting line, the buyer should buy round-trip tickets for them, provide food & accommodation as well as local transportation to our engineers
