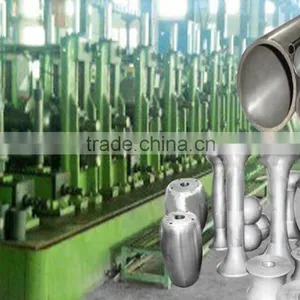

Help CenterBig Size Diameter Pipe Welding Machine
Related Products
-
Semi-auto 650mm- Precision Slitting MachineUS$ 78,560 - 147,560MOQ: 1 Set -
1500mm Middle and Thick Plate Cuting MachineUS$ 12,870 - 20,870MOQ: 1 Set
-
Carbon Steel and Stainless Steel Pipe Welding MachineUS$ 125,000 - 155,000MOQ: 1 Set
-
GH60 High Frequency Steel Welding MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
AISI 443 Stainless Steel Sheet.US$ 2,050 - 4,870MOQ: 10 Tons
YSG-120 high frequency straight seam welded pipe production line is used to produce the sizeφ219~φ426. thickness is 2.0~10.0mm electric welded steel pipe, and also can produce the corresponding raw material square or torque pipe, irregular pipe and rack truck structure pipe and so on.. Each single machine in this production line on the basis of digesting and absorbing domestic and foreign similar equipment, combined with Chinese national conditions, has innovative design. It is convenient operation and maintenance. The design level and manufacturing quality in the leading position, to achieve unit in recent years, the introduction of structure and precision level. The machine line has high processing quality and the assembling precision, adopt reasonable roll hole style, can produce high precision electrical welded steel pipe
machine line components
N/N |
Components |
Qty |
Remarks |
1 |
Loading trolley |
1 set |
|
2 |
Uncoiler |
1 set |
|
3 |
Feeder & leveller |
1 set |
|
4 |
Shear & butt welding |
1 set |
|
5 |
Horizontal spiral buffering loop |
1 set |
|
6 |
Roll former |
1 set |
|
7 |
HF welding machine |
1 set |
|
8 |
Water cooling system |
1 set |
|
9 |
Sizing machine & Turkey head |
1 set |
|
10 |
Fly saw cutter |
1 set |
|
11 |
Product table |
1 set |
|
12 |
Control system |
1 set |
|
13 |
Hydraulic system |
1 set |
|
14 |
Roller |
1 set |
Suitable for Φ350X7mm , material GCr15 |
- Hydraulic de-coiler
- Feeding guide roll
- Forming
- Cooling water tank
- Sizing
- speed measurement
- computer cutting
- feeding→hydraulic de-coiling→Horizontal spiral loop→forming, high-frequency welding/ removing out burrs/Online Zinc Spraying Machine /water-cooling/ sizing/ Coarse straightening/leveling inside and polishing around surface→The computer flying saw scale→pneumatic pipe rack
Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)

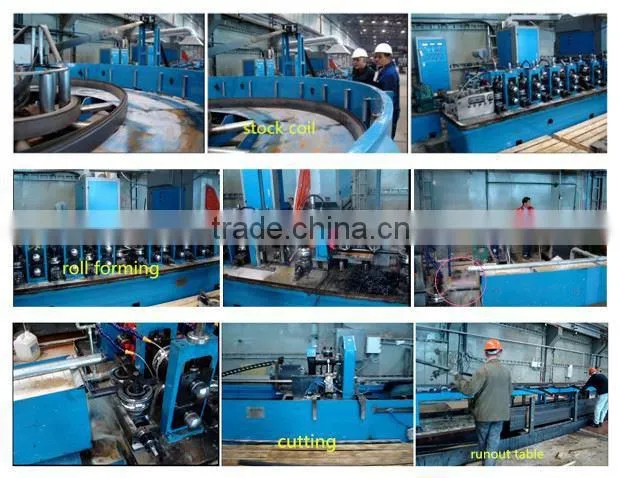

machine workflow showing
