Ysd PPF Serial Large CNC Press Brake

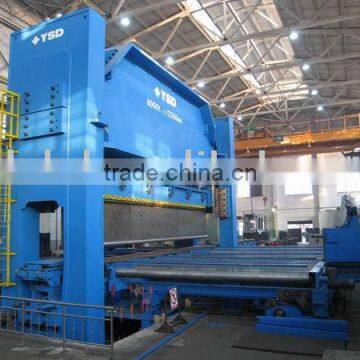

Ysd PPF Serial Large CNC Press Brake thumbnail-1

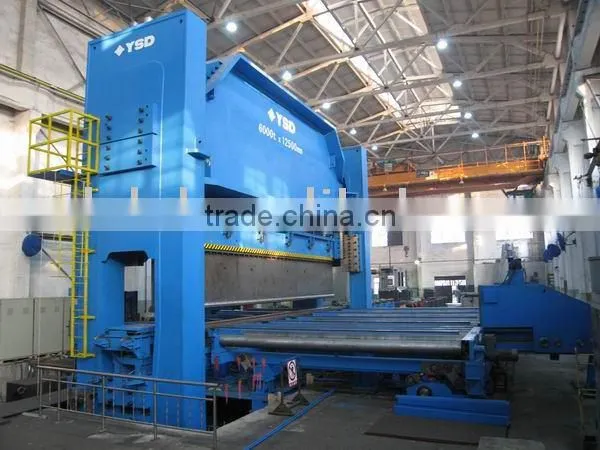

Ysd PPF Serial Large CNC Press Brake photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
YSD, LVD-HD
Model Number:
PPF
Contact Supplier Request Quote Chat Now
(YSD) Hubei Tri-Ring Metalforming Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HUANGSHI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name YSD, LVD-HD
Model Number PPF
Machine Type Press Brake
Raw Material Pipe
Power Cnc
Automation Automatic
Certification CE

(YSD)PPF serial large CNC press brake



1.Accuracy of the machine
Repetition precision       +/- 0.01 mm
Accuracy of positioning    +/- 0.03 mm

2.Synchronism system
The electronically controlled machine takes position controlling system..
The error of the synchronism on the ram can be measured by the encoder and
be corrected by the servo-valves automatically.


3.Standard equipments of the machine
Y1-Y2-Y3-Y4-Y5-Y6: Linear encoder for electronic ram depthsetting, equilibration, calibration

V1 axis: Automatic crowing on table for anti-deflection.

Fence guard on the top of the machine.

T slot on the front and back side of the table.

Foot operation station with emergency stop.

Split mounting frames, special foundation required

Operation and maintenance instructions (One copy in English)

With one set of service and maintenance tools

Power supply: 380V/ 50Hz /3 phases

Display safety voltage: 24V, DC



4. CNC control : CADMAN-CNC from LVD,Belgium.



5.Key components on the main machine:

Description of parts                 Brand        Country of Origin

CNC control :                         DELEM,       Holland

Servo valves:                         BOSCH,       Germany

Pressure valves:                    BOSCH,       Germany

Pump:                                  VOITH,        Germany

Oil seals:                             MERKEL,      Germany

Oriented belt:                       MERKEL,      Germany

Linear encoder:                    HEIDENHAIN,    Germany

Main electrical components:   TELEMECANIQUE, France

Main motor:                          ABB,          China



6.Equipments for option

Oil cooler

front feeder

back gauge

side extracting device (for lighting pole /high mast/ oil pipe /electrical tower industry)
