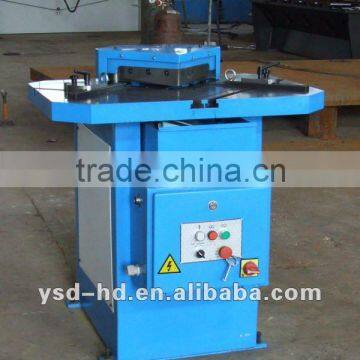

Double Head Notching Machine

Double Head Notching Machine thumbnail-1
Double Head Notching Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
YSD
Model Number:
VN2004P, VN2006P
Contact Supplier Request Quote Chat Now
(YSD) Hubei Tri-Ring Metalforming Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name YSD
Model Number VN2004P, VN2006P

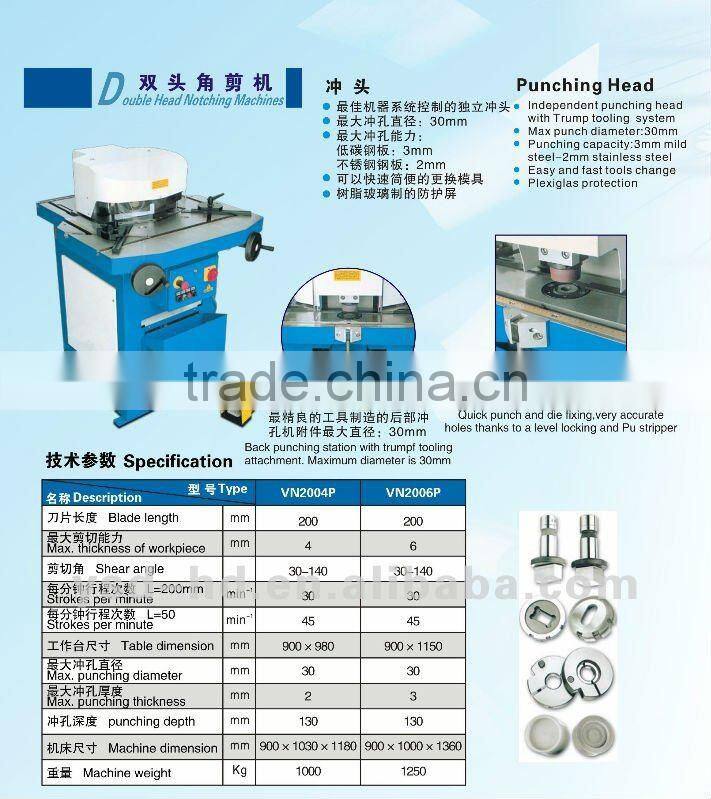

Punching Head:


1.Independent punching head with Trump tooling system
2.Max punch diameter:30mm
3.Punching capacity:3mm mild steel-2mm stainless steel
4.Easy and fast tools change
5.Plexiglas protection

Description:
1.Back punching station with trumpf tooling attachment. Maximum diameter is 30mm
2.Quick  punch  and  die  fixing,very  accurate holes thanks to a level locking and Pu stripper

Specifcations:

Double head notching machine



Type
Description
VN2004P
VN2006P
Blade length
KN
200
200
Max. thickness of workpiece
mm
4
6
Shear angle
°
30°~140°
30°~140°
L=200mm Strokes per minute
min-1
30
30
L=50 Strokes per minute
min-1
45
45
Table dimension
mm
900 x 980
900 x 1150
Max. punching diameter
mm
30
30
Max. punching thickness
mm
2
3
Punching depth
mm
130
130
Machine dimension
mm
900 x 1030 x 1180
900 x 1000 x 1360
Machine weight
Kg
1000
1250
