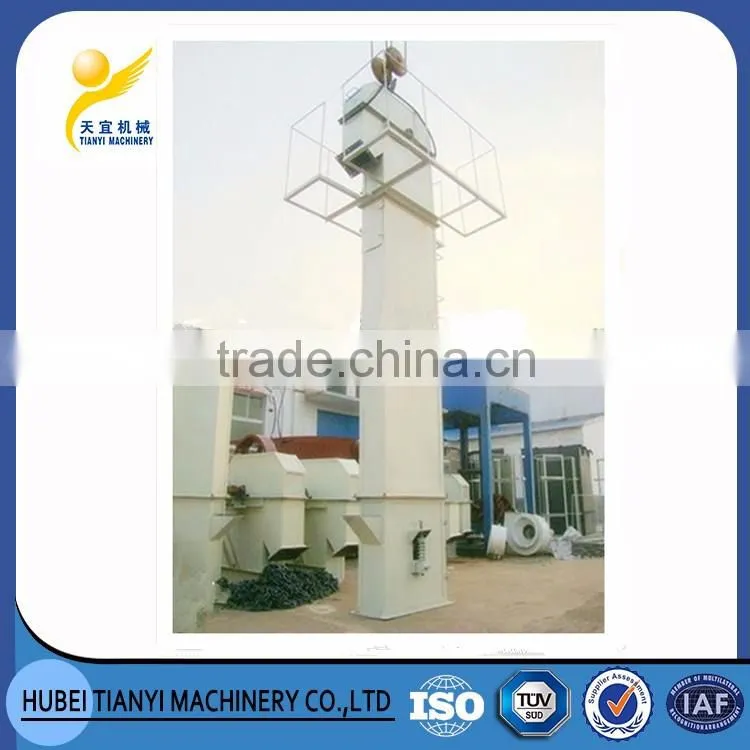

China high quality heavy duty industrial heat resistant chain bucket elevator for power plant
China high quality heavy duty industrial heat resistant chain bucket elevator for power plant

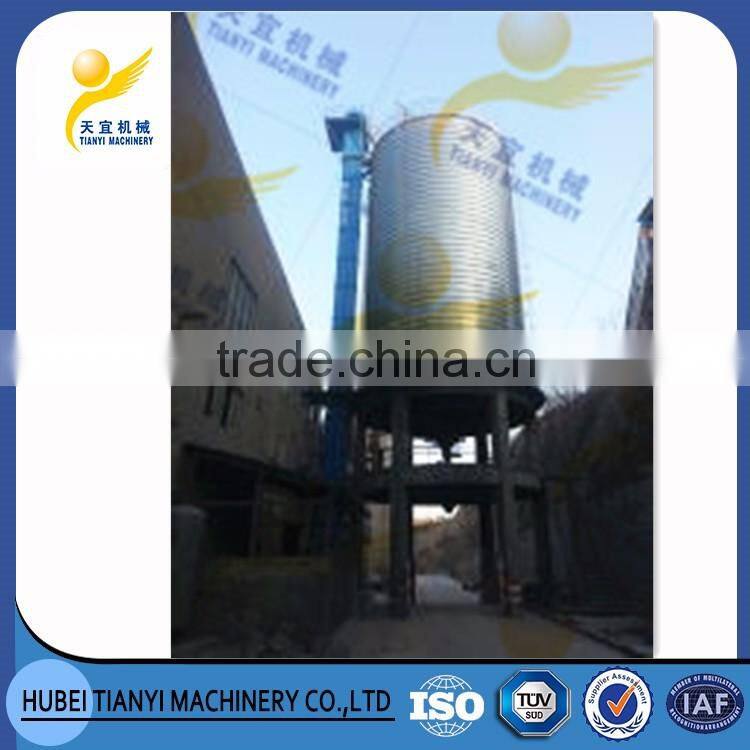

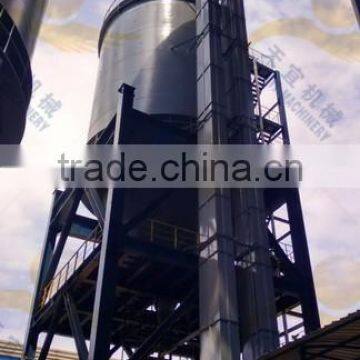

TB(NE) Series Bucket Elevator, the full name is plate sleeve roller chain bucket elevator (Plate chain bucket elevator for short),with the plate sleeve roller chain, it suits for conveying those dry, loose and easy to throw materials such as coal, gravel, ore, pebbles, etc., the temperature of the material is no more than 250℃.
Capacity of this model is 16 ~ 480 m3/h, lifting height is 5 ~ 40 m.
Main Features
2 Large capacities for conveying in a compact space .
3 Completely enclosed for dust-tight operation,improve the working conditions and prevent the environmental from being polluted.
4 Reliable electrical device and mechanical safety device .
5 Flexible installation and maintenance .
6 Construction available in carbon steel, stainless steel .
7 Engineered and manufactured to meet specific customer requirements .
Machine Parts
Name: Plate link chain & buckets
Brand: TIANYI
Original: CHINA
Chain is the short pitch plate type sleeve roller drag chain.
Bucket is fixed on chain plate with bolt.Name: steel buckets
Brand: TIANYI
Original:CHINA

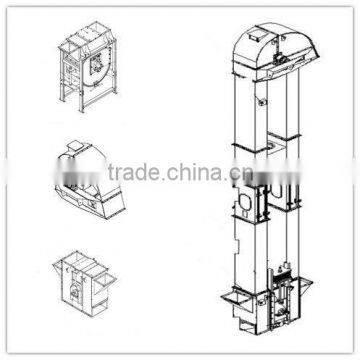

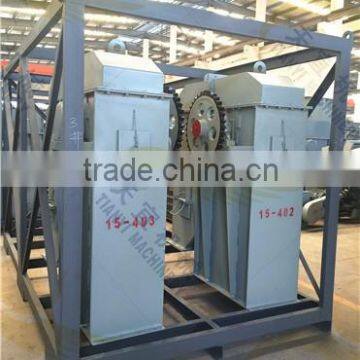

Head section & Tail section
Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
Pre-Sales Service
* Inquiry and consulting support.
* Technical drawing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies.
