Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain

Name: China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain
Brand: TianYi
SKU: 134472037
Availability: InStock

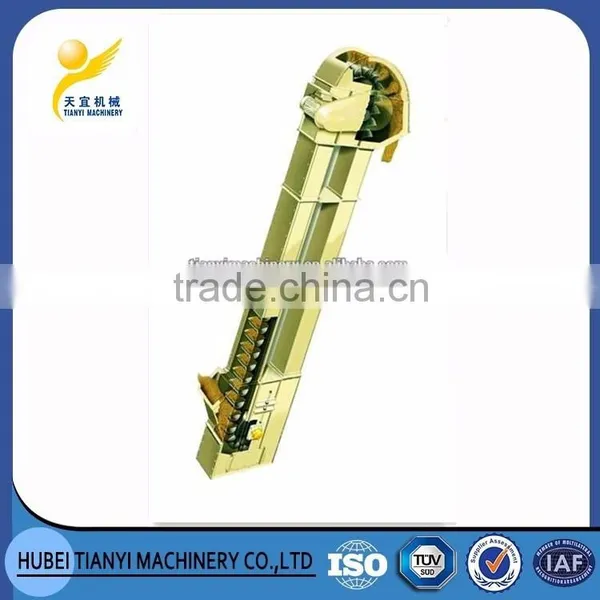

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain thumbnail-1

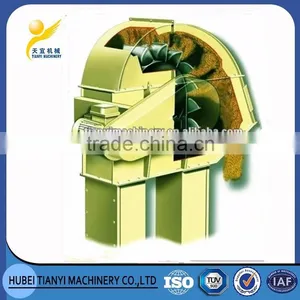

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain thumbnail-2

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain thumbnail-3

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain thumbnail-4

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain thumbnail-5

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain thumbnail-6

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain photo-1

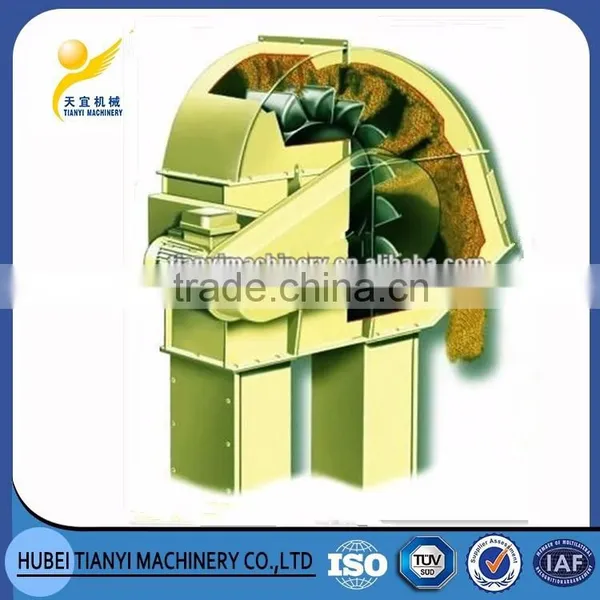

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain photo-2

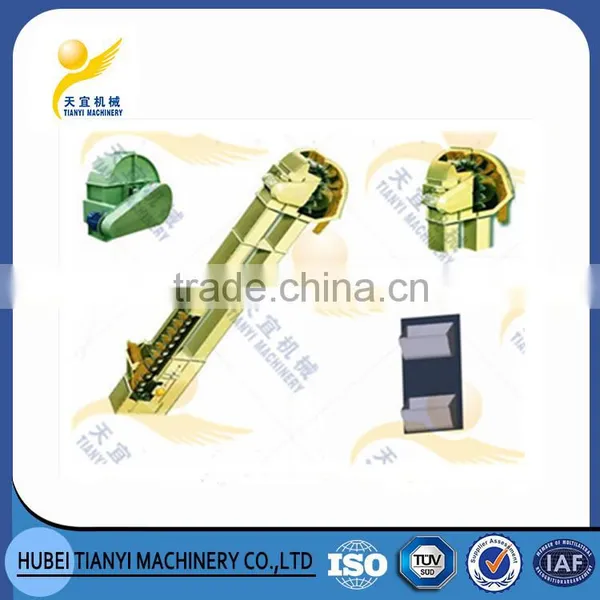

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain photo-3

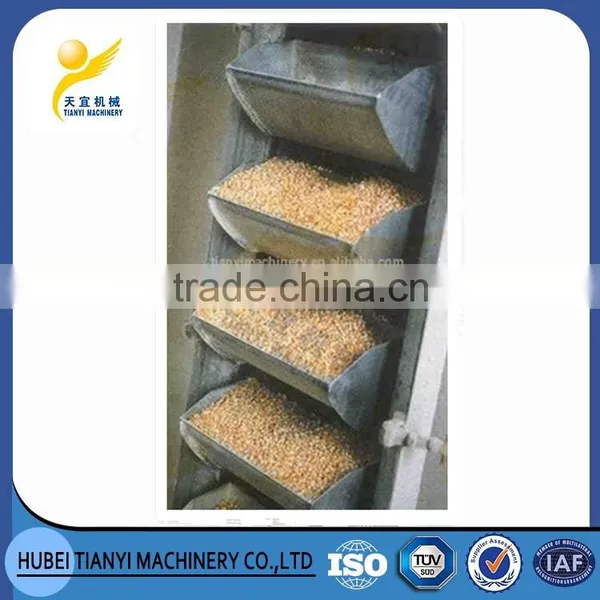

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain photo-4

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain photo-5

China Factory Price ISO TUV Certificated Large Capacity Belt Type Bucket Elevator Conveyor for Grain photo-6

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

TianYi

Model Number:

TY TZD

Contact Supplier Request Quote Chat Now

Hubei Tianyi Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name TianYi

Model Number TY TZD

After-sales Service Provided Engineers available to service machinery overseas

Product Name

China factory price ISO TUV certificated large capacity belt type bucket elevator conveyor for grain

Product Description

China factory price ISO TUV certificated large capacity belt type bucket elevator conveyor for grain

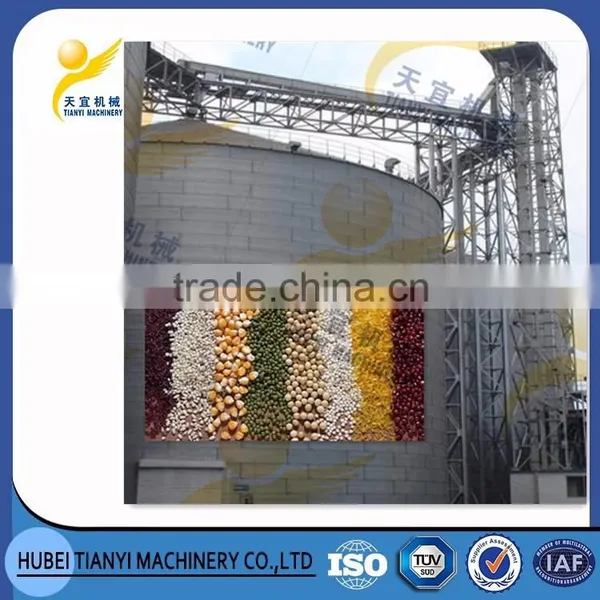

TZD Bulk grain silo bucket elevator is specially designed as per the demand of the port and the medium-sized grain depot in China, the largest lifting height is 65m, the max capacity is 800t/h.

Model of elevator		TZD200	TZD250	TZD300	TZD400	TZD500	TZD650	TZD800	TZD1000
Capacity(t/h)		50~80	80~120	150~210	200~300	350~400	380~450	500~650	700~800
Bucket	^{Bucket speed(m/s)}	_2~3.1	_2~3.1	_2.5~3.5	_2.5~3.5	_3.2~3.9	_3.2~3.9	_3.2~4.0	_3.2~4.0
	^{Bucket capacity(L)}	_1.21	_2.35	₆	_8.4	_10.9	_2x6	_2x8.4	_2x10.9
	^{Bucket spacing(mm)}	₁₀₅	₁₂₅	₂₁₅	₂₁₅	₂₁₅	₂₁₅	₂₁₅	₂₁₅
	^{Bucket width(mm)}	₁₈₆	₂₃₈	₂₈₀	₃₈₀	₃₈₀	_2x280	_2x380	_2x480
Belt width(mm)		200	250	300	400	500	650	800	1000
^{Diameter of pulley on head section(m)}		₆₃₀	₆₃₀	₇₁₀	₇₁₀	₇₁₀	₈₀₀	₁₁₄₀	₁₁₄₀

Main Features

1 Wide range of bulk materials can be handled, including powder, granular and block materials .
2 Large capacities for conveying in a compact space .
3 Completely enclosed for dust-tight operation,improve the working conditions and prevent the environmental from

being polluted.
4 Reliable electrical device and mechanical safety device .
5 Flexible installation and maintenance .
6 Construction available in carbon steel, stainless steel .
7 Engineered and manufactured to meet specific customer requirements ..

Certifications

Detailed Images

Machine Parts

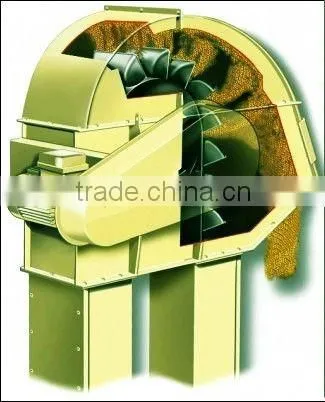

Name: Head section

Brand: TIANYI

Original: CHINA

Main Features

Name: head section, buckets
Brand: TIANYI
Original:CHINA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Technical drawing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

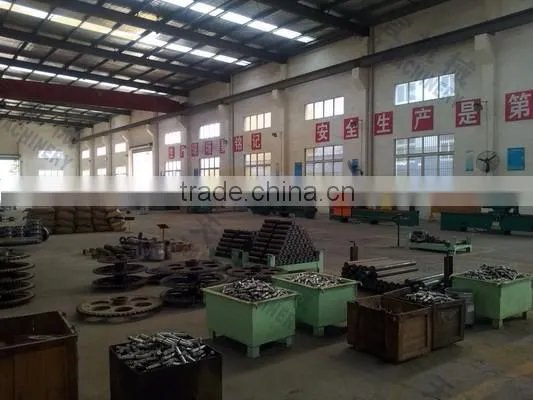

Workshop & Equipment

HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies

Packing & Delivery

Packaging
Size	3600 (L) * 2100 (W) * 2050 (H)
Weight	4.5T
Packaging Details	The normal package is iron cage(Size: LWH). The cage size is not standard. we design the cage according to the product's size and weight. also will fix the products use screw or welding products on cages. we can packing according to customers special request.
