China supplier hot sale large lifting height long life vertical sand and powder belt bucket elevator
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
- Stable performance computer Board Recycling Machine
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
- Cement dry ash bulk machine telescopic ring cloth bag DN300/600 thickened wear-resistant
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
Product Details
Place of Origin: | Hubei, China | Brand Name: | TianYi | Model Number: | TY TD |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China supplier hot sale large lifting height long life vertical sand and powder belt bucket elevator
China supplier hot sale large lifting height long life vertical sand and powder belt bucket elevator
TD series Bucket Elevator, full name is belt type bucket elevator, with the high-strength rubber belt for traction parts.
TD Series Bucket Elevator is suitable for those powder, granular, small block of no grinding bulk material, such as grain, coal, gravel, sand, coke foam, cement, gravel mine, silicate etc. The temperature of the conveying material should not be commonly higher than 80 ℃; When choosing heat- resistant belt, it should not exceed 200 ℃.
Main Features
1) Adopting steel cord belt as drag parts.
2) The head section, tail section and middle section of this elevator made effective seal processing.
3) This elevator is centrifugal discharging, pick and get charging.
4) Driving device adopting vertical shaft reducer and fluid coupling.
5) The bottom section of this machine have level indicator and speed sensor, Monitor the running status of elevator.
Machine Parts
Name: High-strength rubber belt & buckets
Brand: TIANYI
Original: CHINA
Name: steel buckets
Brand: TIANYI
Original:CHINA

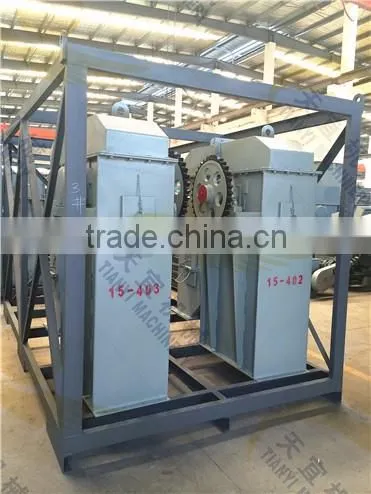

Head section & Tail section

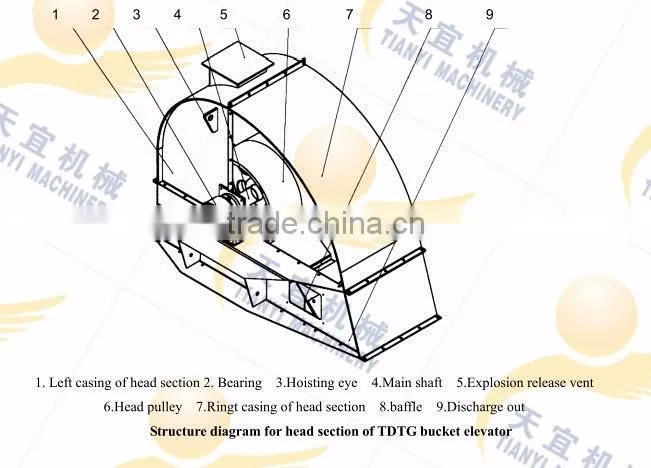

Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.

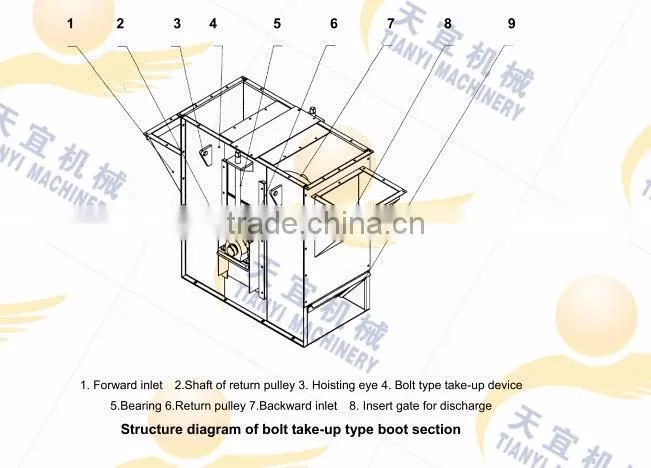

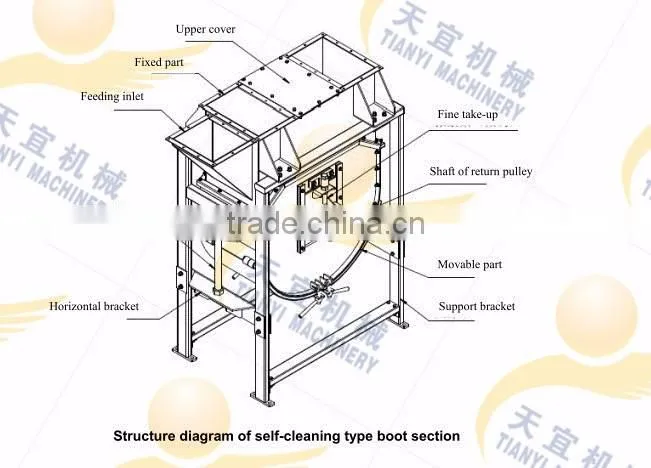

Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
Pre-Sales Service
* Inquiry and consulting support.
* Technical drawing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies
