Product Name

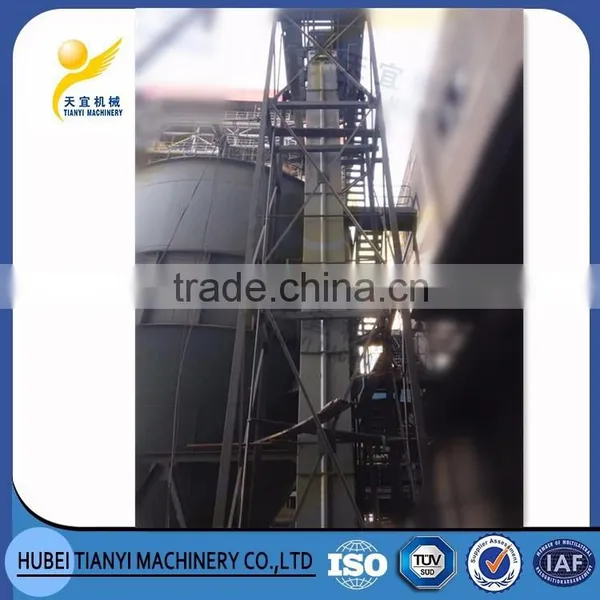

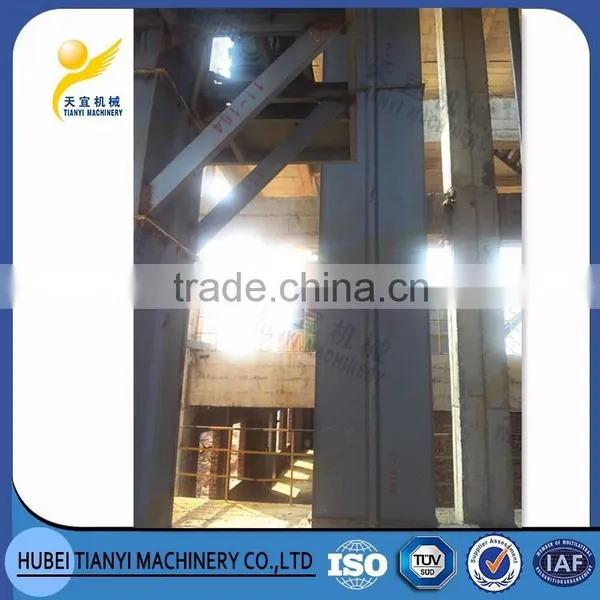

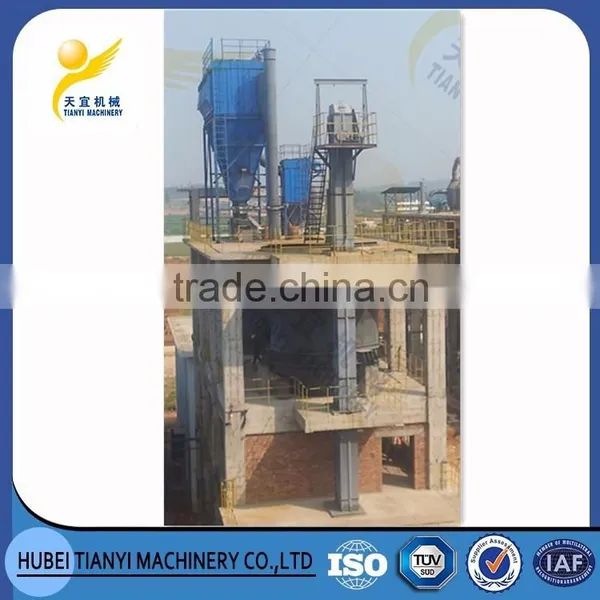

China professional factory direct price wear resistant large capacity plate chain bucket elevator design for limestone

Product Description

China professional factory direct price wear resistant large capacity plate chain bucket elevator design for limestone

Bucket lift vertical conveyor, TB (NE) Series Bucket elevator, the full name is plate sleeve roller chain bucket elevator (Plate chain bucket elevator for short),with the plate sleeve roller chain, it suits for conveying those dry, loose and easy to throw materials such as coal, gravel, ore, pebbles, etc., the temperature of the material is no more than 250℃.

Capacity of this model is 16 ~ 480 m³/h, lifting height is 5 ~ 40 m.

Technical Parameters of chain bucket elevator design
TB250
TB315
TB400
TB500
TB630
TB800
TB1000
Bucket type
J
T
Capacity（m³/h）
15~25
32~46
50~75
84~120
135~190
216~310
340~480
Bucket Width
(mm)
250
315
400
500
630
800
1000
Bucket Volume（L）
3
6
12
25
50
100
200
Bucket Pitch（mm）
200
250
320
400
500
630
Chain pitch（mm）
100
125
160
200
250
315
No. of Chain
1
2
Single broken load（KN）
112/160
160/224
224/315
315/450
450/630
630/900
Sprocket diameter（mm）
386.37
428.96
618.19
772.74
965.92
1217.06
Bucket running speed（m/s）
0.5
Main shaft speed（r/min）
24.71
19.78
15.45
13.36
9.89
7.85

Main Features

1 Wide range of bulk materials can be handled, including powder, granular and block materials .
2 Large capacities for conveying in a compact space .
3 Completely enclosed for dust-tight operation,improve the working conditions and prevent the environmental from being polluted.
4 Reliable electrical device and mechanical safety device .
5 Flexible installation and maintenance .
6 Construction available in carbon steel, stainless steel .

7 Engineered and manufactured to meet specific customer requirements .

Certifications

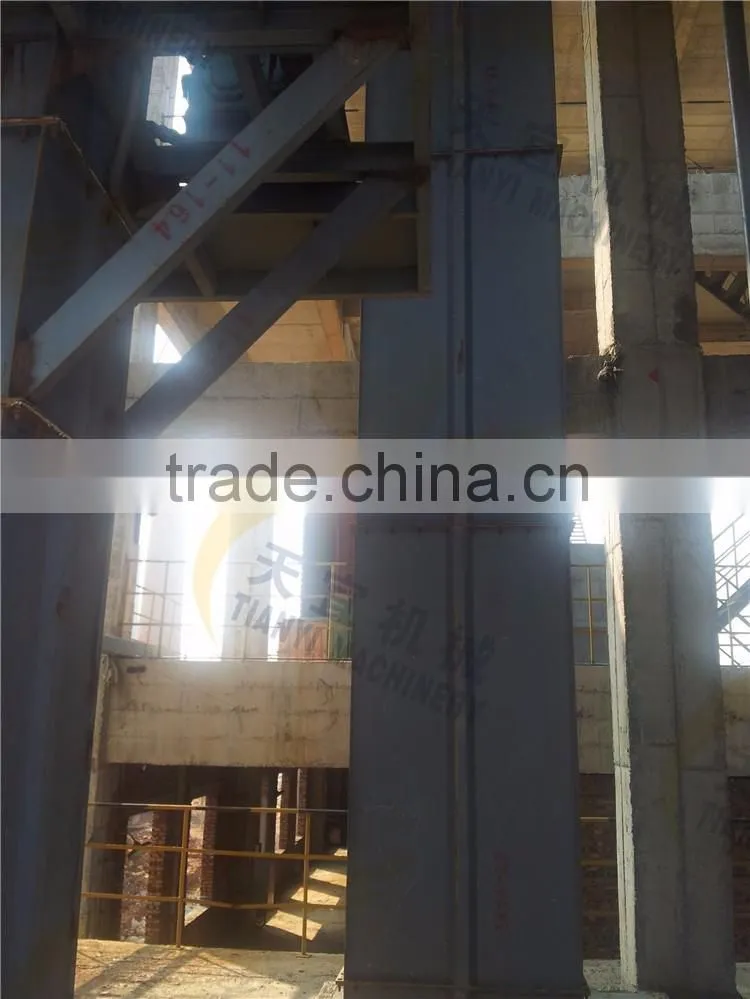

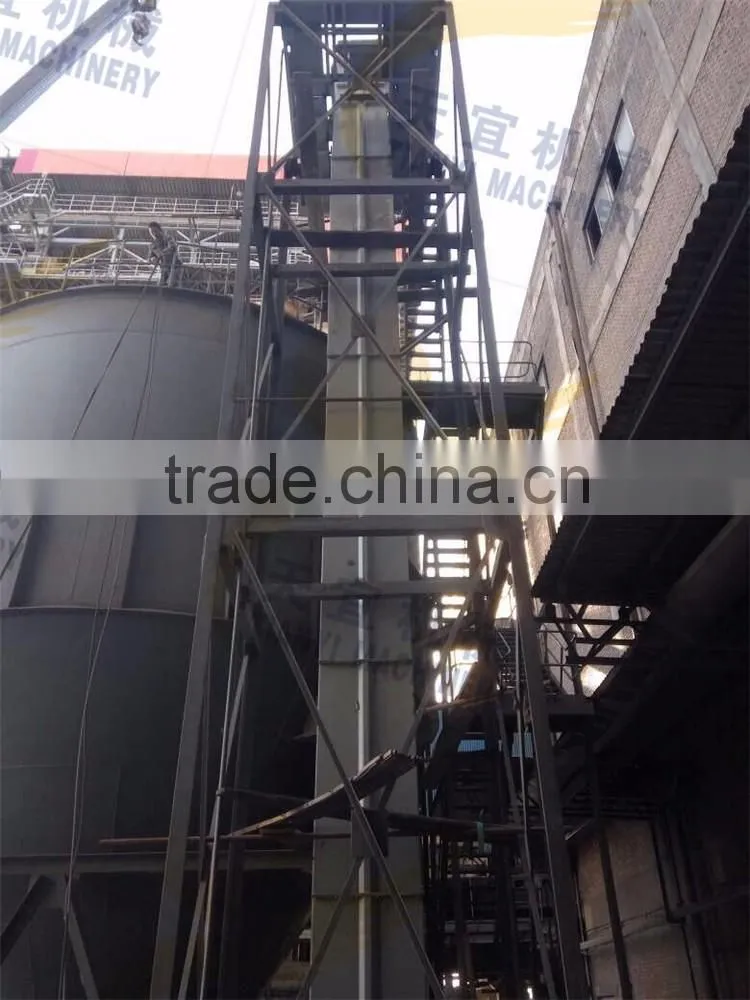

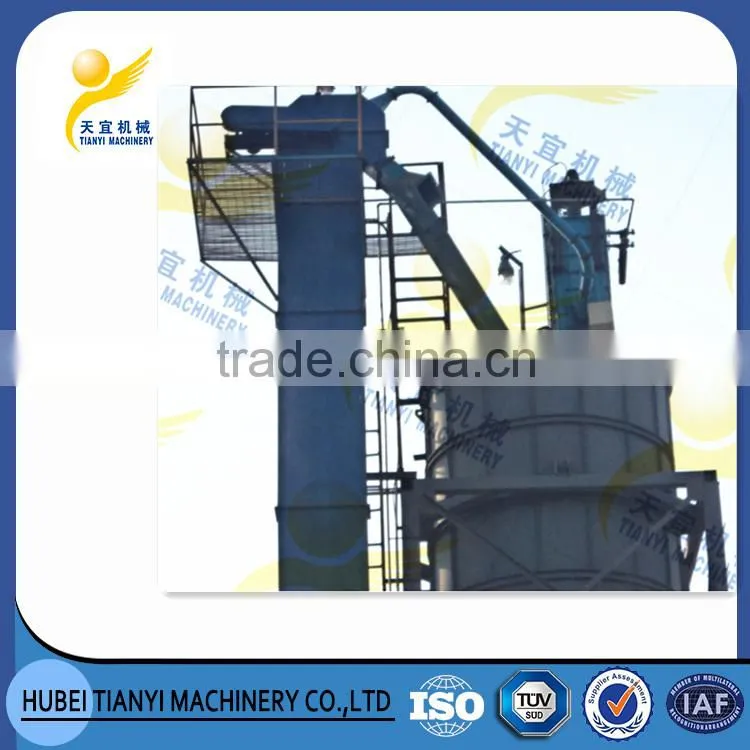

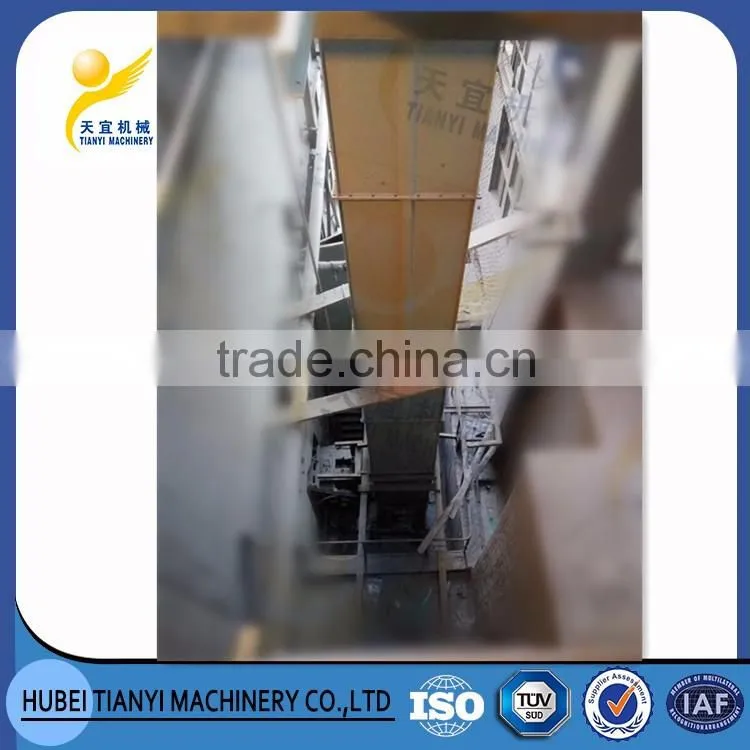

Detailed Images

Machine Parts

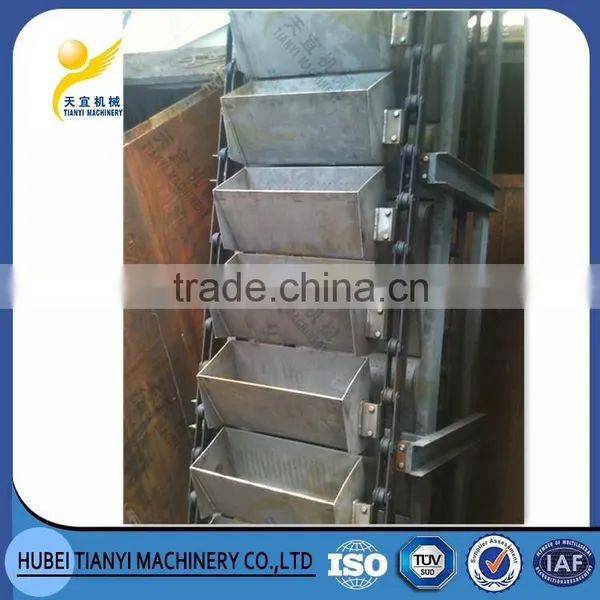

Name:  Plate link chain & buckets

Brand: TIANYI

Original: CHINA

Chain is the short pitch plate type sleeve roller drag chain.

Bucket is fixed on chain plate with bolt.


Name:   steel buckets
Brand: TIANYI
Original:CHINA

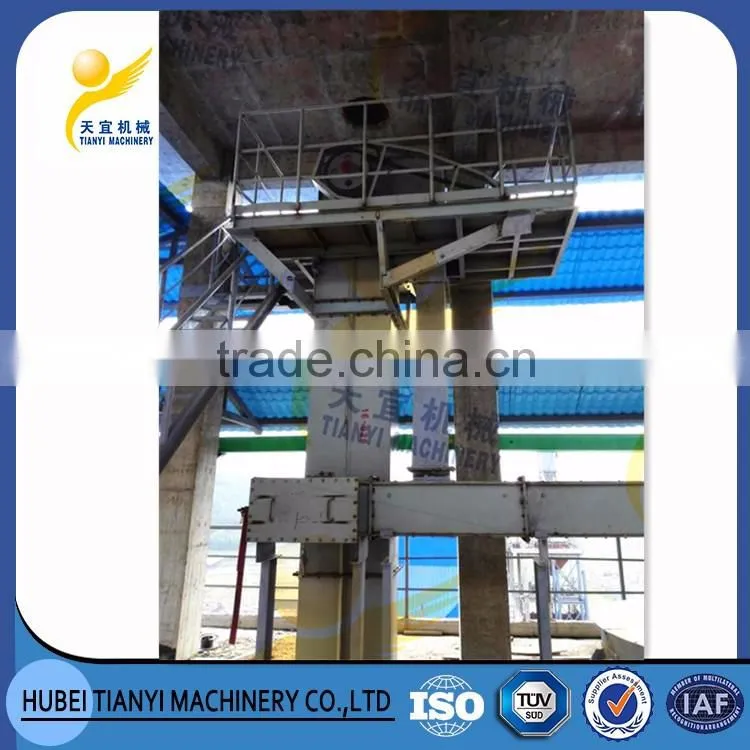

Head section & Tail section

Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Technical drawing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Workshop & Equipment

HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies

Packing & Delivery
Packaging
Size
3600 (L) * 2100 (W) * 2050 (H)
Weight
4.5T



Packaging Details
The normal package is iron cage(Size: L*W*H). The cage size is not standard. we design the cage according to the product's size and weight. also will fix the products use screw or welding products on cages. we can packing according to customers special request.
