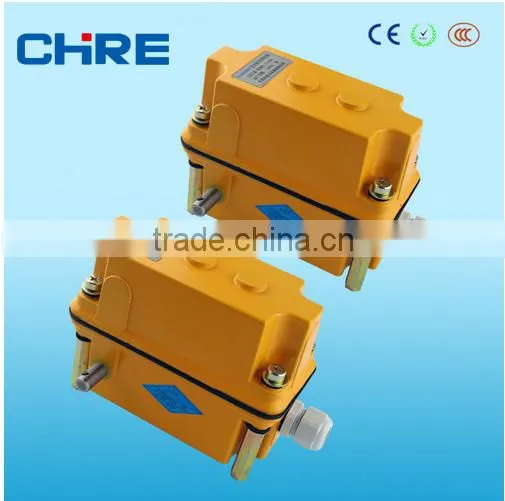

DXZ 1: 960 10A 250VAC Aluminum Electrical Tower Crane Parts
US$ 1.1 - 1.1
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chre
Model Number:
DXZ 1: 960
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP66 High Temperature Stainless Steel Micro SwitchUS$ 1.15 - 1.3MOQ: 50 Pieces -
NM7121 15A 250VAC Long Plunger Electrical Limit SwitchUS$ 1.15 - 1.3MOQ: 50 Pieces
-
Wobble Stainless Steel Cat Whisker Spring Wire Limit SwitchUS$ 2.8 - 3MOQ: 50 Pieces
-
Mini Circuit Breaker With High Quality and Best Price DZ47-63 1PUS$ 0.6 - 0.65MOQ: 1 Piece
-
2P Mini Circuit Breaker With High Quality and Best Price DZ47-63US$ 1.2 - 1.3MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Chre
Model Number
DXZ 1: 960
Protection Level
IP65
Operating Temperature
10~80 Degree
Max. Current
10A
Max. Voltage
250VAC
Product Description
CHRE 15A 250VAC Long Plunger Electrical Limit Switch
1.Product Description
1.Features:
Various ratio and color types are available for choice
Compact design, assemble easily
Fast action, long life, which could decline cost
Quality is reliable, has got CE,CCC certificates
Widely used in tower crane,Tower crane lift ,Height Limit automation machines
Various ratio and color types are available for choice
Compact design, assemble easily
Fast action, long life, which could decline cost
Quality is reliable, has got CE,CCC certificates
Widely used in tower crane,Tower crane lift ,Height Limit automation machines
| 1.Small size |
| 2.Large transmission ratio |
| 3.High accuracy |
| 4.Convenient installation and debugging versatility and so on |
| ITEM:DXZ | Data | |
| Housing | Aluminum | |
| Rating load | 10A/250VAC | |
| Rated Voltage | AC 220/380V | |
| Rated Current | 6~10A | |
| Operating speed | 1mm-50cm/s | |
| Operating frequency | Mechanical | 120times/min |
| Electrical | 30times/min | |
| Insulation resistance | 100MΩ(Above)DC500V | |
| Contact resistance | 25MΩ(intial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s² |
| Misoperation | 300m/s² | |
| Life | Electrical | 100,000above |
| Mechanical | 1,000,000above | |
| Protection degree | IP65 | |
| Operation temperature | "-40'C~55'C | |
| Operating humidity | ≤ 90%RH | |
| Repeatable Positioning Accuracy | Angle Error of Memory Cam ≤0.005rad (0.3°) | |
| Potentiometer of Sensor | Standard Resistance 5KΩ, Independent Linearity 0.1% Mechanical Turning Angle 360°(continuously) | |
.Specification

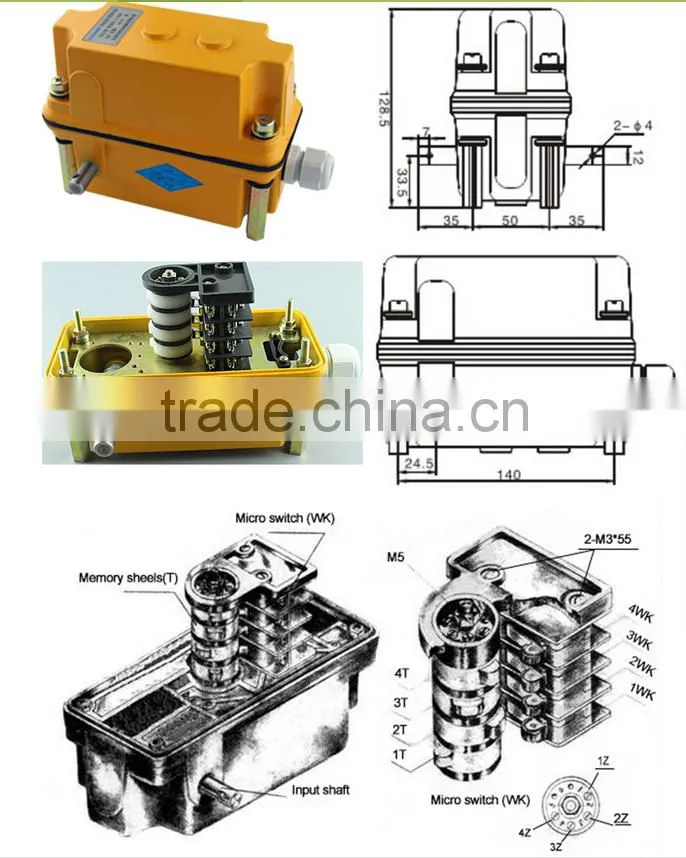

DXZ series multi-functional turning angle type travel limiter is a kind of new safety protection drvice disigned and produced
domestically after the introduction of products from France,applicable to space three-cooodinate bilateral control,control of any position, turning angle and travel and analog sensory control, widely used in tower cranes, port cranes,various windlasses and other construction machinery, as well as control circuit of similar machinery.
The product has a variety of functions, such as small size, large transmission ratio, high accuracy, convenient installation and debugging versatility and so on, having been applied more and more widely.
Standard ratio
Nonstandard ratio
Standard ratio
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Ratio | 1:13 | 1:17 | 1:46 | 1:60 | 1:78 | 1:210 | 1:274 | 1:960 |
| Ratio | 1:20 | 1:26 | 1:30 | 1:35 | 1:87 | 1:105 | 1:135 | 1:140 |
| 1:160 | 1:188 | 1:247 | 1:330 | 1:360 | 1:453 | 1:480 | 1:660 |
