Home > Electrical & Electronics > Switch > Limit Switch > Wobble Stainless Steel Cat Whisker Spring Wire Limit Switch
Wobble Stainless Steel Cat Whisker Spring Wire Limit Switch
US$ 2.8 - 3
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chre
Model Number:
NM-8167
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DXZ 1: 960 10A 250VAC Aluminum Electrical Tower Crane PartsUS$ 1.1 - 1.1MOQ: 50 Pieces -
IP66 High Temperature Stainless Steel Micro SwitchUS$ 1.15 - 1.3MOQ: 50 Pieces
-
NM7121 15A 250VAC Long Plunger Electrical Limit SwitchUS$ 1.15 - 1.3MOQ: 50 Pieces
-
Mini Circuit Breaker With High Quality and Best Price DZ47-63 1PUS$ 0.6 - 0.65MOQ: 1 Piece
-
2P Mini Circuit Breaker With High Quality and Best Price DZ47-63US$ 1.2 - 1.3MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Chre
Model Number
NM-8167
Protection Level
IP65
Operating Temperature
10~80 Degree
Max. Current
5A
Max. Voltage
250VAC
Product Description
CHRE 15A 250VAC Long Plunger Electrical Limit Switch
1.Product Description
1.Switch Feature:
1)N/O and N/C, brass contact, Silver tip.
2)Double circuit type of limit switch with roller lever arm.
3)Highly rigid construction, consists of intensive plastic and aluminum cast.
4)Small volume, water-proof and oil-proof construction.
5)Built-in basic switch with double spring mechanism, longer mechanical life.
6)Smooth operation with greater OT.
7)Easy-to-wire circuit opening design.
8)Wide varity of actuators, easily use.

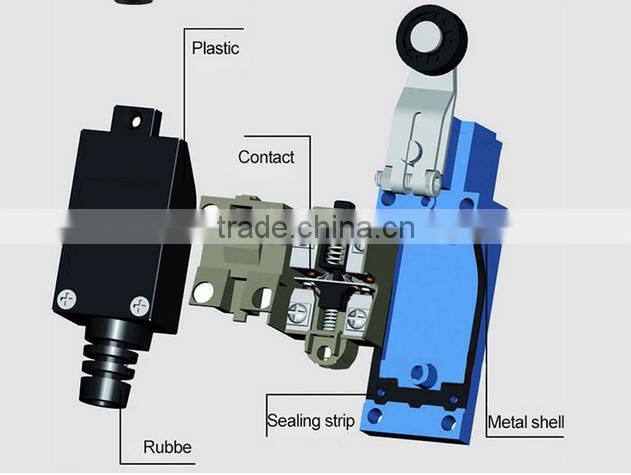

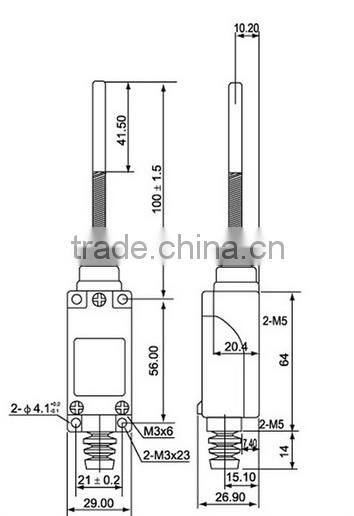

2.Product display & drawing show
3.Specifications
| Rated voltage | Non-inductive load | Inductive load | ||||||
| Resistive load | lamp load | Inductive load | Moto load | |||||
| N.C | N.O | N.C | N.O | N.C | N.O | N.C | N.O | |
| 125 VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 |
| 250 VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 |
| 8 VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 |
| 14 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 30 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 125 VDC | 0.4 | 0.2 | - | - | - | - | - | - |
| 250 VDC | 0.4 | 0.24 | - | - | - | - | - | - |
4.Characteristics
| Operating speed | 5mm to 5cm/s |
| Operating frequency | 120operation/min |
| contact resistance | 25mΩ max (initial) |
| Insulation resistance | 100mΩ min (at 500VDC) |
| Dielectric strength | 11,000VAC,50/60Hz for 1 minute between non-continuous terminals |
| 1,500VAC,50/60Hz for 1 minute between current carrying and non-current carrying parts and between each terminals and ground | |
| Vibration | 10 to 55Hz,1.55mm double amplitude |
| Shock | Approx,300m/s²(approx,30G's |
| Ambient temperature | Operating:-5 to +65ºC |
| Humidity | 95% RH max. |
| Service | Mechanically 10,000,000 operations min. |
| electrically 500,000 operations min. | |
| Weight | Approx. 130 to 190g |
| Degree of protection | IEC:IP65 |
5.Operation Characteritcs
| Model | NM-8167 |
| OF Max | 150g |
| RF | |
| PT Max | 30mm |
| OT | |
| MD | |
| OP |
