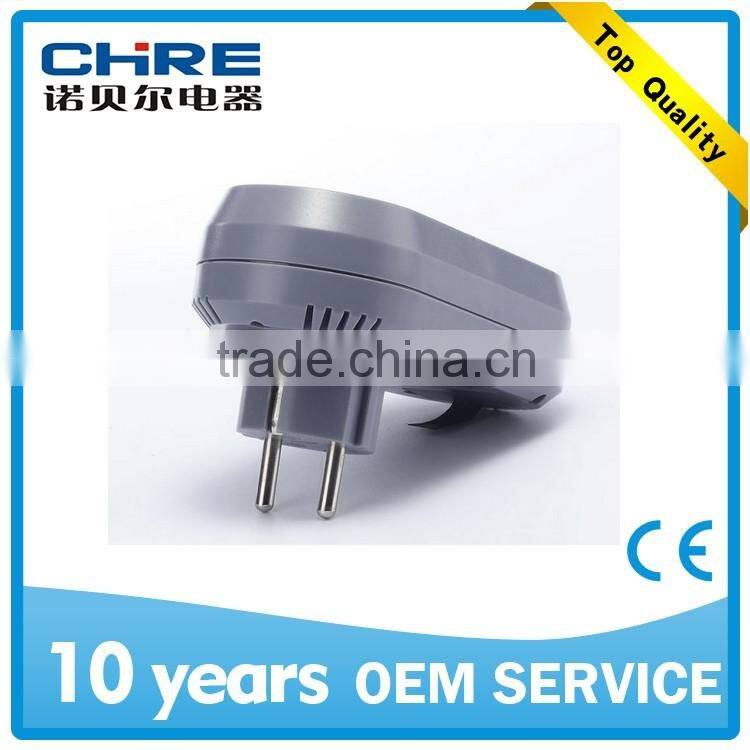

CHRE LCD Power Electric Energy Meter Socket/Plug
1.Brief introduct
Energy meter socket is used for calculate the power consumption and cost of the appliance which linked to it, also forecast the future consumption based on the history data, cut off the power at the setting value. Applicable in household, school, mall, hotel, plantation and more.
Features:
1. Large LCD display
2. Energy measurement display
3. Voltage (V). Current (A). Wattage (W)
4. Max. loading record
5. Line frequency (Hz)
6. Energy consumption display
7. Total energy consumption (kWh)
8. Accumulated operation time
9. Energy cost calculation
10. Power factor display
11. Power overload indicator
12. Tow tariffs setting/Clock display
13. Battery backup for user settings
14. Measure consumption details of electrical device
15. Customized cost unit,forecast day/week/month consumption
16. Buzzer alert when overloading or consumption is excessive
17. Backup settings
18. Rated 3680W,16A
2. Technical Parameters:
| Energy Meter Socket BDEM1379 | |
| Material | ABS |
| Current | Max 16A |
| Voltage | 190-240VAC, 50-60Hz |
| Power | Max 3680W resistive load |
| Work Temperature | -10-65deg |
| Plug | Universal |
| Cell | 2*LR44(1.5V) or AG 13 (1.5V) |
| Operation Life | 10 years |
| Display | Digital |
| Phase | Single |
| Theory | Resistive |
| Voltage Display&Accuracy | 190-276V, ±4V(3%) |
| Curent Display&Accuracy | 0.00-16.00A, ±0.22A (3%) |
| Power Display&Accuracy | 0-3999W, ±5W (5%) |
| Energy Display&Accuracy | 0.00-9999.99KWh, ±0.1KWh (5%) |
| Frequency | 40-70Hz |
| Power Factor | 0.20-1.00 |
| Power Consumption | 0.6W |
| Body Weight | 160.0g |
| Measurement | 140.2*62*81mm |
