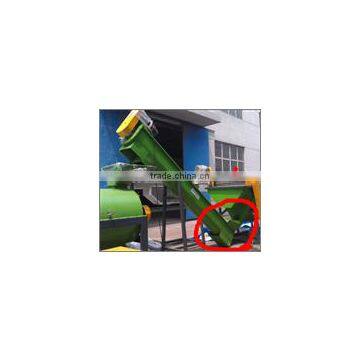

PP, PE Film Washing Line Screw Loader U Type SLU-380-13

General Applications:

The series transport belt is used in plastic recycling and pelletizing line to transport the material to the next section such as: crusher, compactor cutter and so on.  Followed by shredded material after Uniaxial, biaxial shredder.

Specification:

SLU-*-13

Model Interpretation:  SLU for the first letter of the Screw Loader U type; the bottom with a drainage function, U-shaped design

first asterisk(*)  represents the diameter of the screw.

the 13 means its year 2013's style and structure

Usage: Used to improve transport bottle flakes, films crushed, block and other materials, special occasions can also be used to deliver customized bottle.

Note: Generally fitted behind the crusher, behind washign tank single screw, behind washing tank twin-screw, before or after friction washing machine or used alone;

Material: made of Iron or Stainless Steel

other for same model different output:

SLU-300-13

Usage: used in 500kg/h PET bottles flakes washing line, or 300kg/h PE/PP Film washing line

Basic configuration parameters:

Screw diameter: 300mm, Motor power 2.2kw, Length: 4meter, Reducer: BDW-2, Speed:40RPM, Bottom with drainage.

SLU-380-13

Usage: used in 1000-1500kg/h PET bottles flakes washing line, or 500kg/h PE/PP Film washing line

Basic configuration parameters:

Screw diameter: 380mm, Motor power3 kw, Length: 4meter, Reducer: BDW-2, Speed:40RPM, Bottom with drainage.

SLU-450-13

Usage: used in 1500-2000kg/h PET bottles flakes washing line, or 1000kg/h PE/PP Film washing line

Basic configuration parameters:

Screw diameter: 450mm, Motor power3 kw, Length: 4meter, Reducer: BDW-2, Speed:40RPM, Bottom with drainage.

SLU-760-13

Usage: used in 1000kg/h PE/PP Film washing line, for material feeder or material output on floating washing tank.

Basic configuration parameters:

Screw diameter: 380mm, Motor power3 kw, Length: 4meter, Reducer: BDW-2, Speed:40RPM, Bottom with drainage.

Packing&Shipping

Quality Control:

Fixed Equipments for Q/C With PET  Washing Line

Professional team of Q/C With PET Washing Line

Qualified successfully before get in warehouse With PET Washing Line

Randomly Checking Machines before shipment With PET Washing Line

Service system

We provide presales service in various forms, for example, making investment budget,manufacturing

 planning, etc. so that customers make a reasonable plan with less cost.

 • Investment budgeting: We provide services of product profit analysis, recommendation of machine

 and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.

 • Plant Planning: We provide the mounting dimension of the equipment base,design of equipment

 layout, workshop ventilation, water transmission etc.

 • Offer information of peripherals
