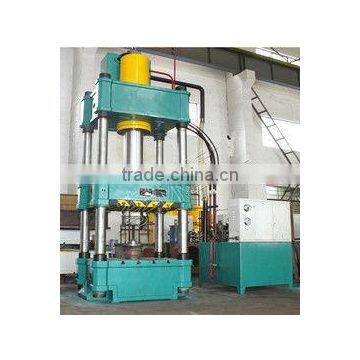

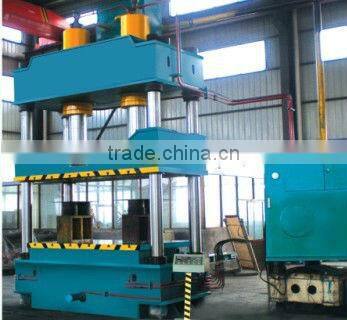

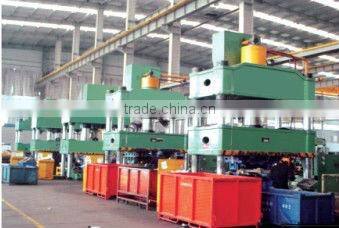

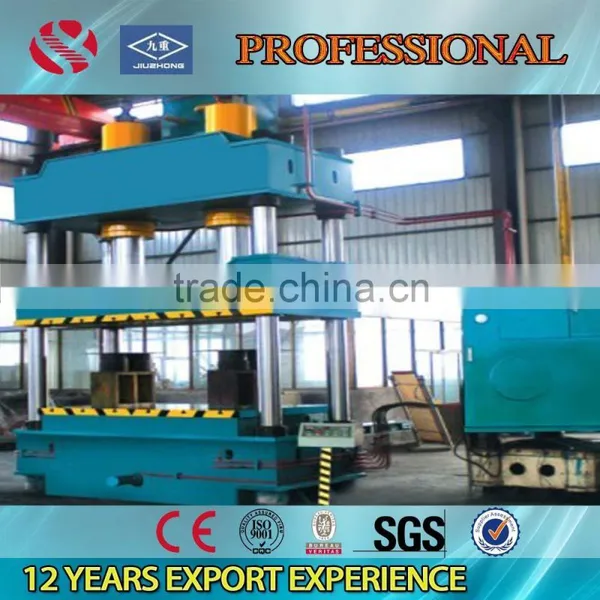

FOUR COLUMN HYDRAULIC PRESS
Performance :
1.This hydraulic press machine is widely used for metal plate forming industry,such as metal drawing,metal straightenig,press in and so on .
2.It’s mainly composed of main machine part and control part .
3.Hydraulic top-drive , steadiness and reliability .
4.Fitted with adjusting ,manual operation,semi-automatically operation three working mode .
5.It has the knock-out function.
Specification:
No |
Name |
Data |
Unit |
Remarks |
||
1 |
Nominal force |
1600 |
KN |
|||
2 |
Return force |
240 |
||||
3 |
Knock-out force |
190 |
KN |
|||
4 |
ing pressure of hydraulic system |
25 |
Mpa |
|||
5 |
Max.opening height |
1000 |
mm |
|||
6 |
Ram stroke |
700 |
mm |
|||
7 |
Knock-out stroke |
200 |
mm |
|||
8 |
Effective area of working table |
Left-right |
750 |
mm |
||
Front-back |
640 |
mm |
||||
9 |
Ram speed |
Down fast |
100 |
mm/s |
||
Down slow |
10 |
mm/s |
||||
Return |
50 |
mm/s |
||||
10 |
Motor power |
7.5 |
KW |
|||
11 |
Dimension |
Left-right |
2700 |
mm |
||
Front-back |
1700 |
mm |
||||
Height |
3400 |
mm |
||||
Main Components:
1.Main electric parts: Siemens
2.Oil pump : Qidong (China)
3.Main motor : Siemens
4.Valves : From Shangdong (China)
5.Sealing rings : Valqua,Japan
6.Pressure meter : Wuxi
