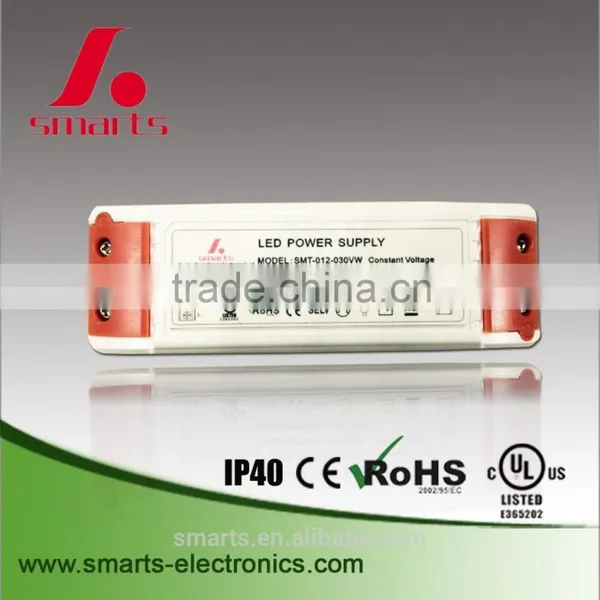

Constant Voltage UL Approval 12V 30W LED Driver Power Supply
| SPECIFICAION | ||||
| MODEL | SMT-012-030WW | SMT-024-030VW | SMT-036-030VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V |
| RATED CURRENT | 2.5Amp | 1.25Amp | 0.83Amp | |
| CURRENT RANGE | 0~2.5A | 0~1.25A | 0~0.83A | |
| RATED POWER | 30W | 30W | 30W | |
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | |
| CURRENT TOLERANCE | ±0.5V | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 80ms/110,220VAC | 81ms/110,220VAC | 82ms/110,220VAC | |
| HOLD UP TIME(Typ.) | 60ms/110-220VAC | 60ms/110-220VAC | 60ms/110-220VAC | |
| INPUT | VOLTAGE RANGE | 100~265VAC | ||
| FREQUENCY RANGE | 50~60Hz | |||
| POWER FACTOR(Typ.) | ||||
| EFFICIENCY(Typ.) | >83% | >83% | >83% | |
| AC CURRENT(Typ.) | 3.5A/110,220VAC | 2.0A/110,220VAC | 1.5A/110,220VAC | |
| INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | |||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | ||
| Overload | overload protected@145-160% above peak rating | |||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | |||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | |||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||
| SAFETY&EMC | SAFETY STANDARDS | UL/ROHS/CE Mark(EMC,LVD),IP67 | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | |||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | |||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | ||||
Feature:
- IP67 design for indoor or outdoor installations
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Suitable for LED lighting
- 24 Months warranty
NOTE:
- All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
- Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
- Tolerance:includes set up tolerance,line regulation and load regulation.
| Constant Voltage UL Approval 12V 30W LED Driver Power Supply | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 91 g | 9.2 kg | 50 pcs | 299*224*176mm |
| |
|
